24-Hole Magnetic Separators
Location： Home > PRODUCT > Magnetic Separator for Tubes and Vials > 24-Hole Magnetic Separators
Models：MAG-24-7
Time：2026-08-29
Applicable Consumables：1.5ml or 2.0ml Axygen or Corning centrifuge tubes
Visits：
Service hotline
+86 18938927592
NEWS
Product Introduction:
The 24-hole magnetic rack / magnetic stand / magnetic separation rack (Magnetic Separation Rack) launched by Shenzhen BORHEE Technology Development Co., Ltd. can efficiently separate all types of magnetic beads. Place 1.5 ml or 2.0 ml centrifuge tubes on the rack, and magnetic separation is completed in an average of 30 seconds, achieving rapid separation and purification of cells, proteins or nucleic acids. On the 24-hole rack, centrifuge tubes fit snugly against the magnets, making the separation process intuitive and convenient. The magnetic force of this rack reaches 6000 GS.
Technical Parameters:
Dimensions (mm): 250×80×50
Well diameter: 10.7 mm - suitable for 1.5 ml or 2.0 ml centrifuge tubes
Optimal working volume: 10-2000 µL
Recommended centrifuge tube brands: Axygen or Corning centrifuge tubes
Operation:
1. Place the centrifuge tube containing the incubated bead-target mixture on the magnetic rack.
2. Wait 30 seconds until the beads are pulled to the centrifuge tube wall.
3. Carefully pour off the liquid, or aspirate and discard it with a pipette.
4. Remove the tube from the magnetic rack and return it to a standard tube rack; the magnetic separation is complete.
Application Features:
1. A small-scale dedicated magnetic separation tool designed for biological experiments, suitable for sequencing, library preparation, antibody purification, immunoprecipitation, co-immunoprecipitation, cell sorting, nucleic acid separation and other operations.
2. Well designed and easy to operate. High magnetic field strength and rapid separation. Average magnetic separation time is 30 seconds - fast and efficient.
3. Compact, lightweight and durable. The unique material makes the rack light yet long-lasting.
Application Images:

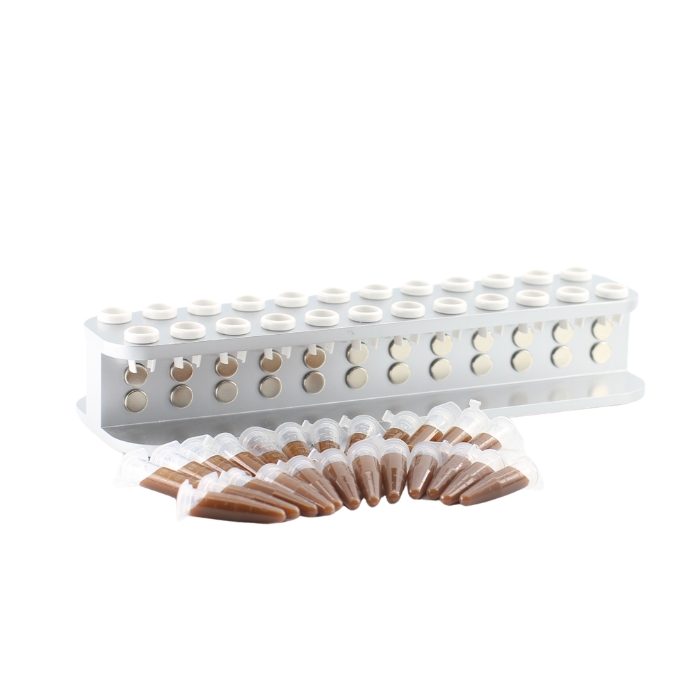

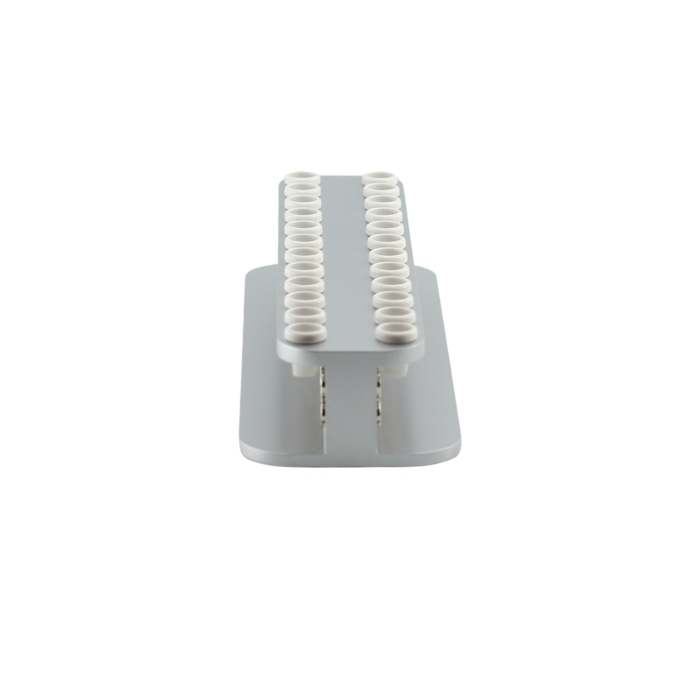

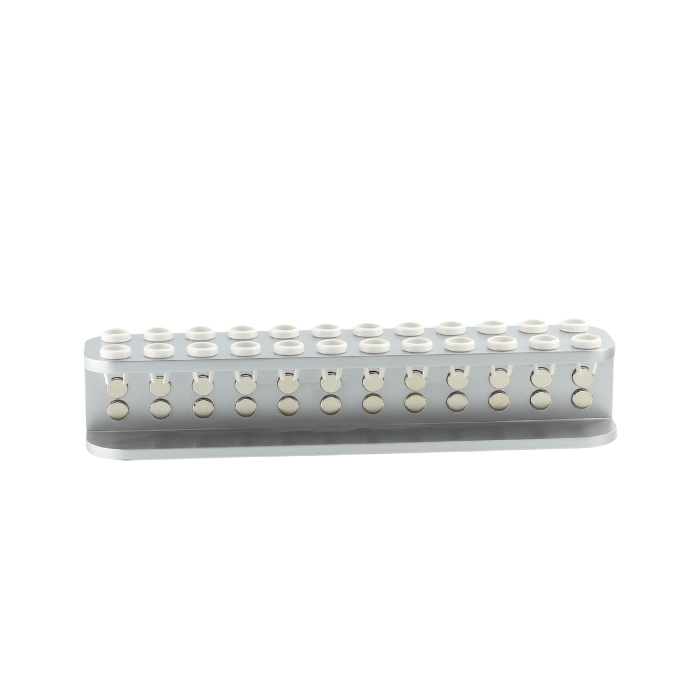

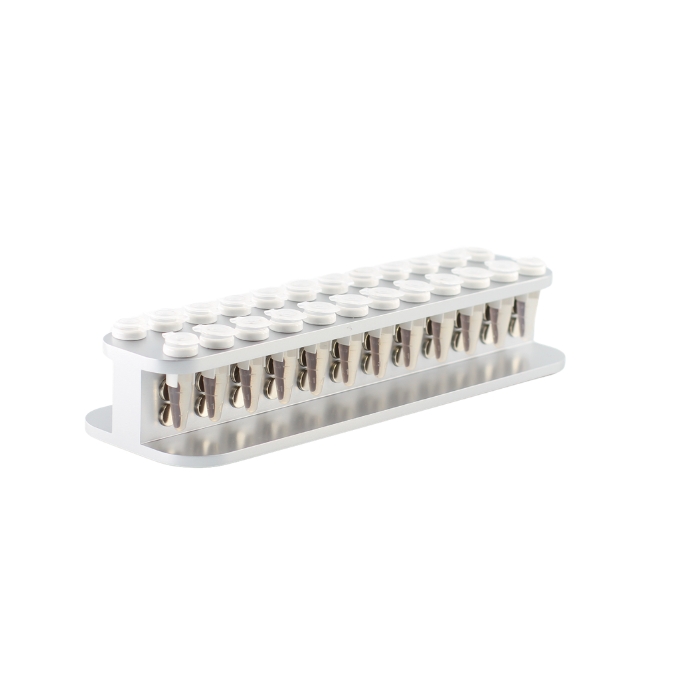

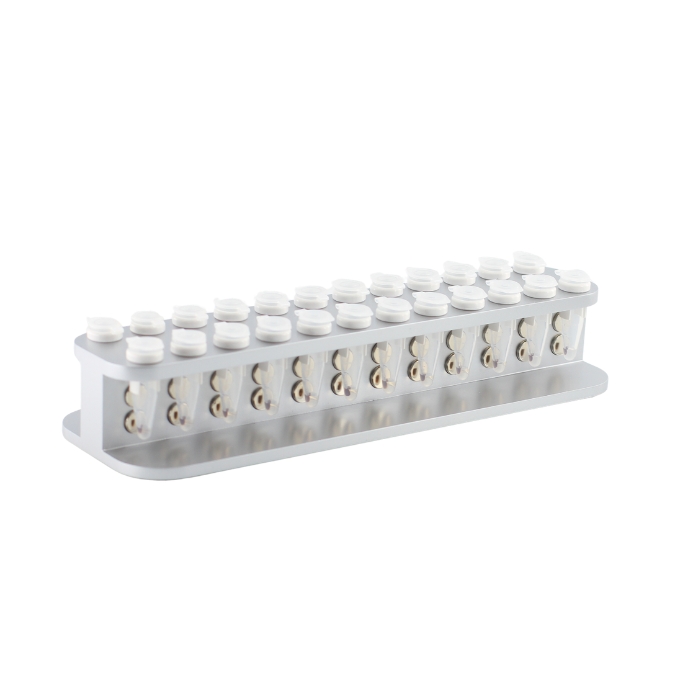

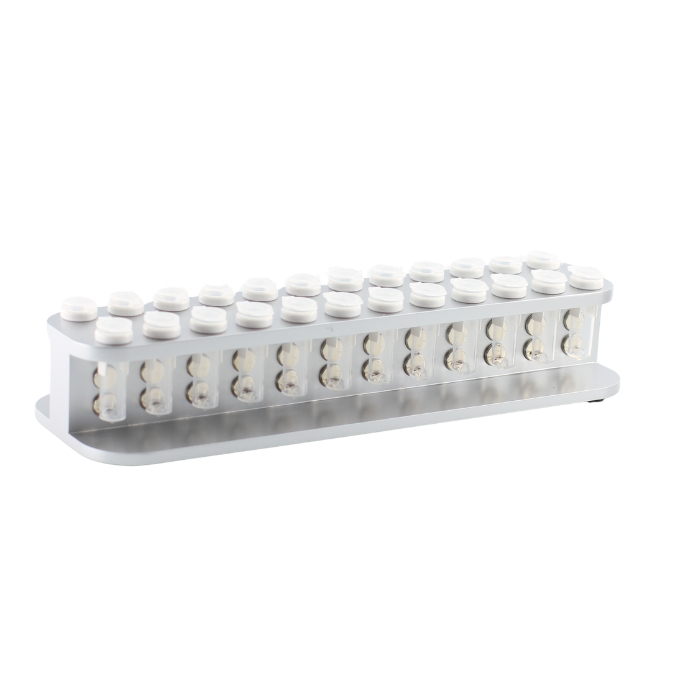

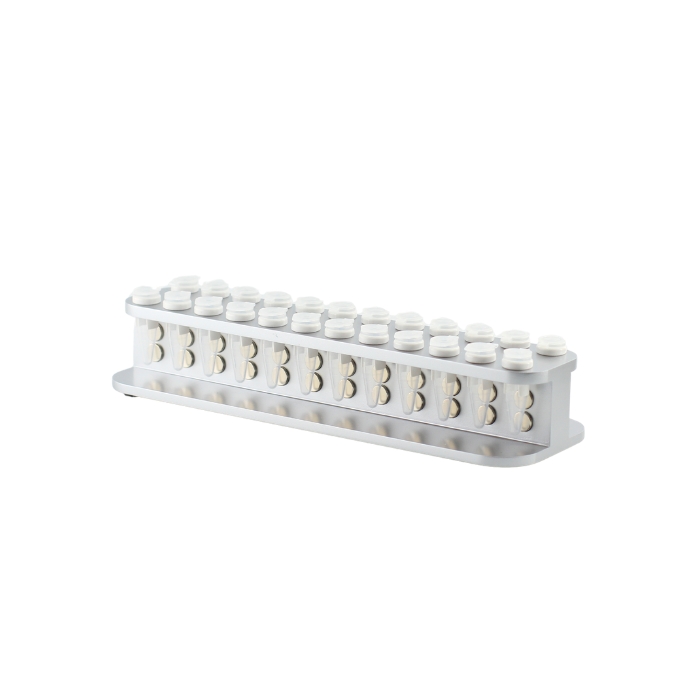

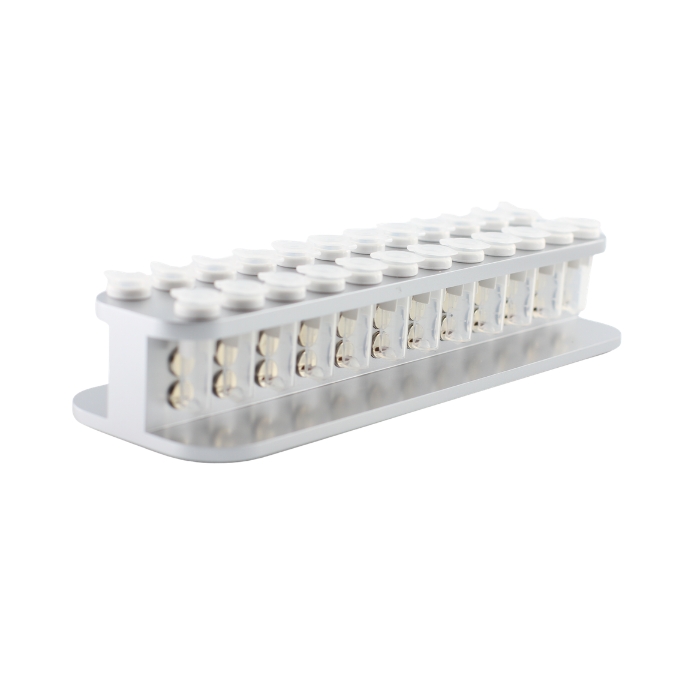

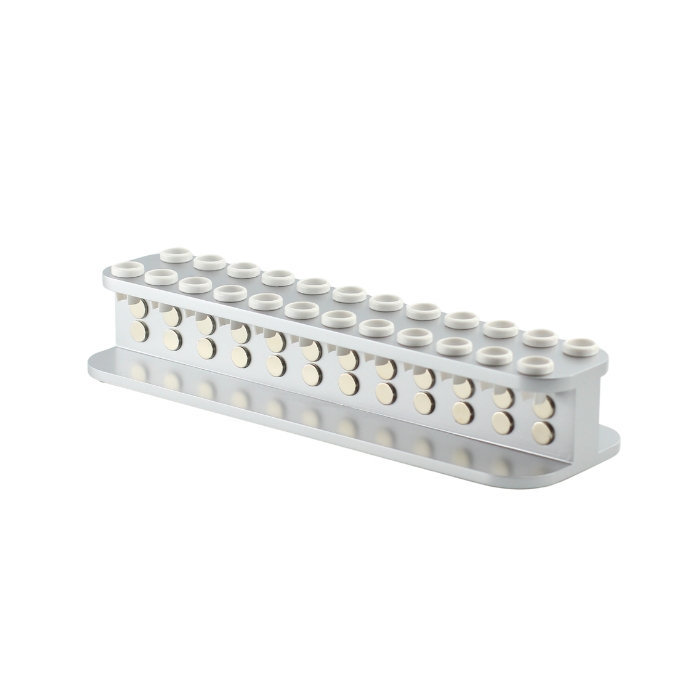

1. Latest improved 24-hole magnetic rack
2. Can be used with 1.5 ml or 2.0 ml centrifuge tubes

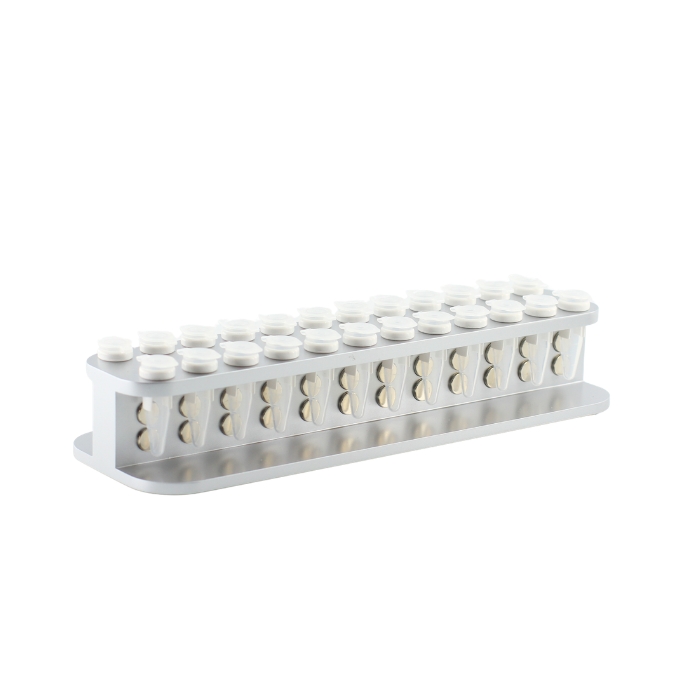

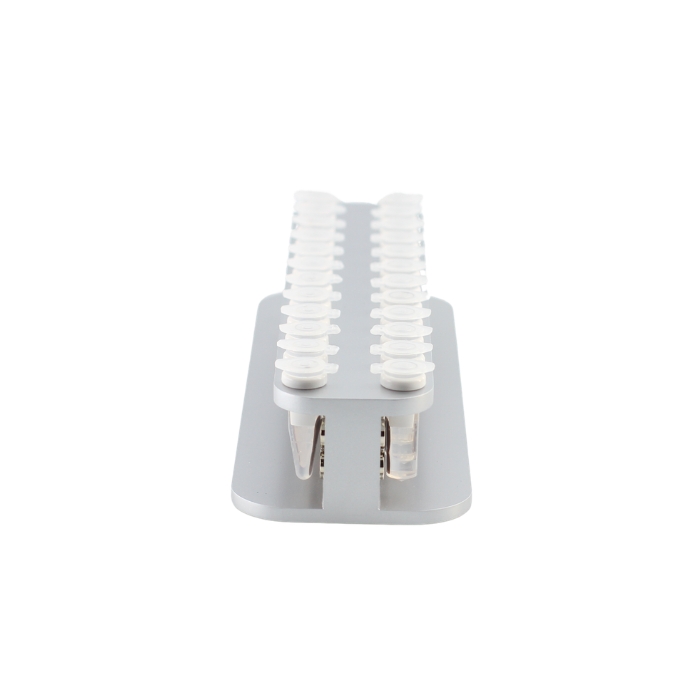

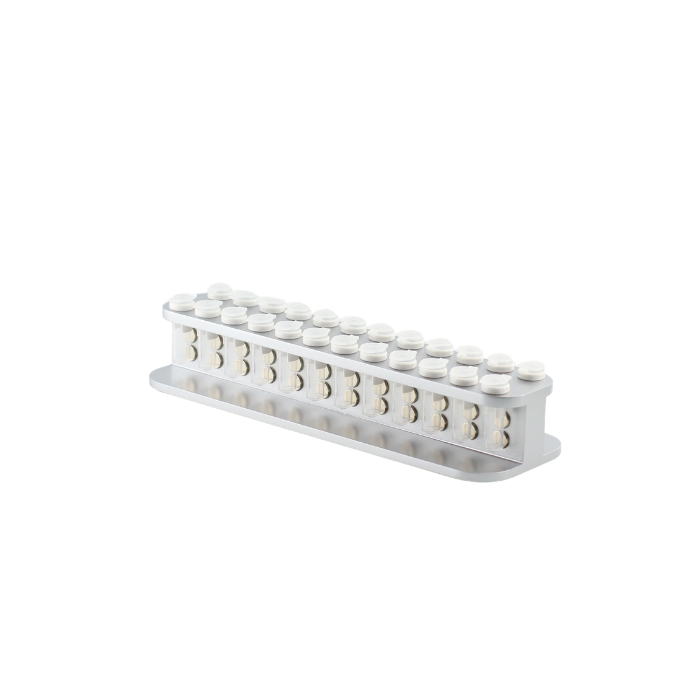

3. Holds 24 × 1.5 ml or 2.0 ml centrifuge tubes at a time

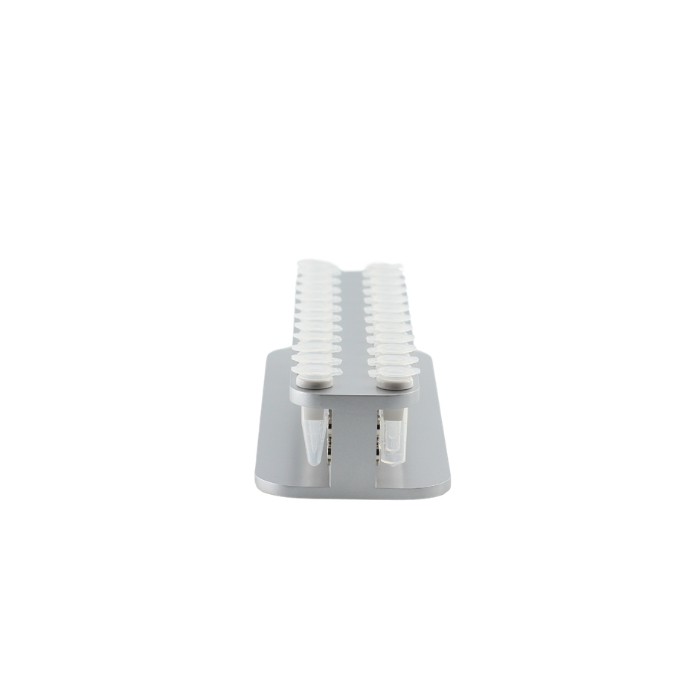

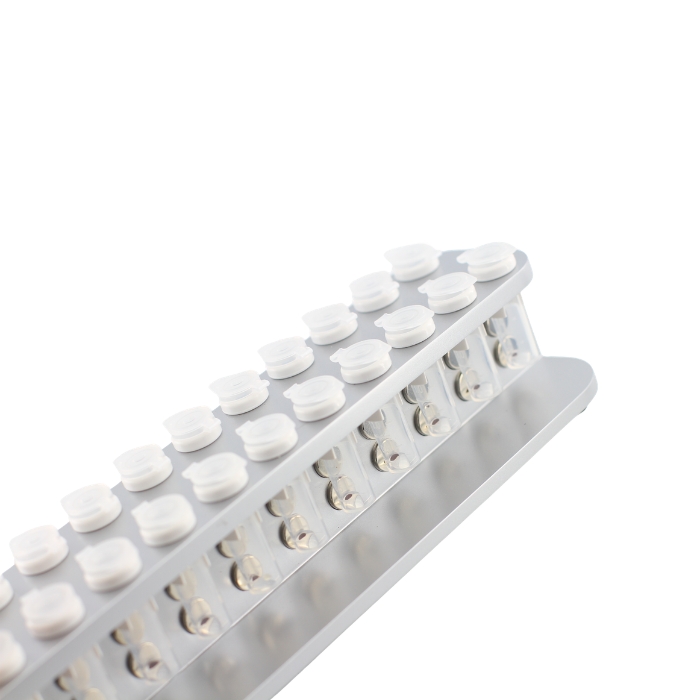

4. Features the latest patented clip sleeve, which holds the tubes in place and allows easy removal

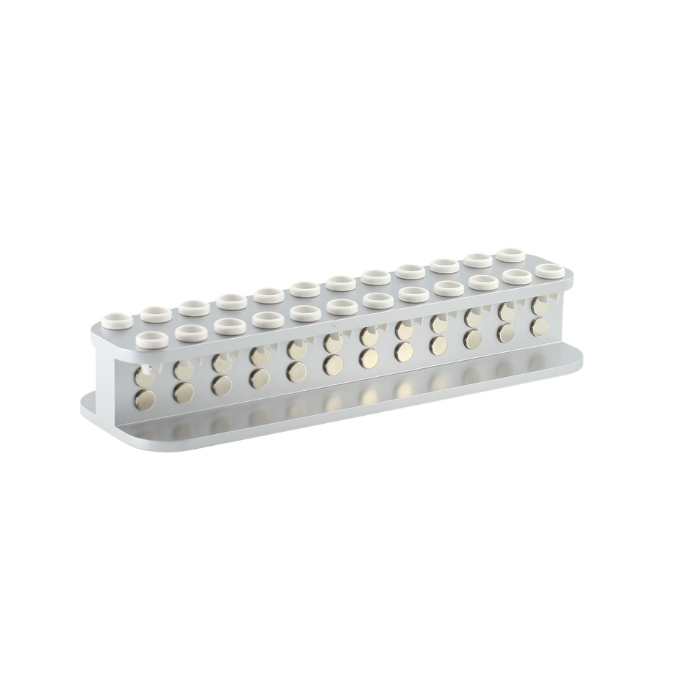

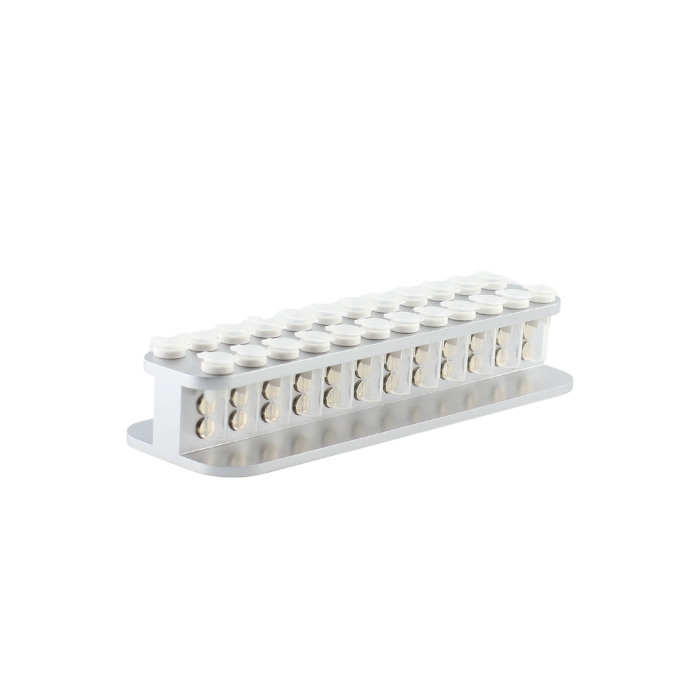

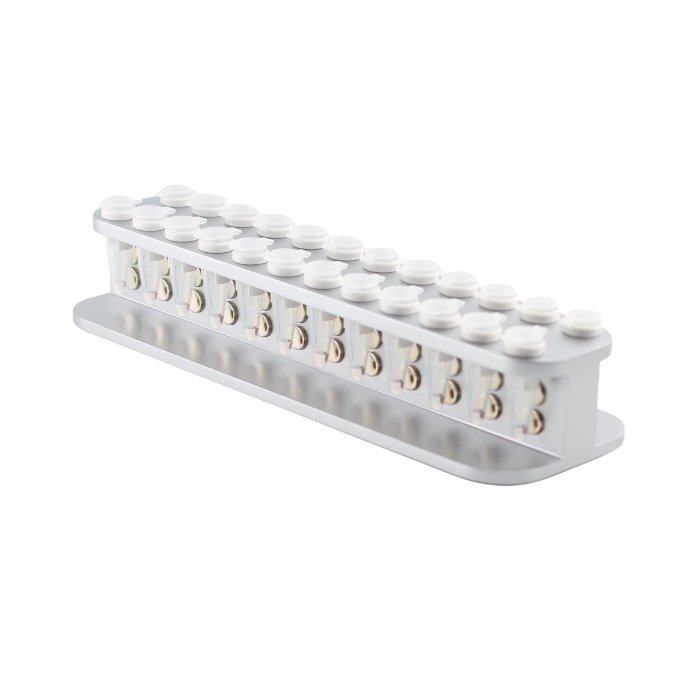

5. Close to the centrifuge tubes, higher magnetism

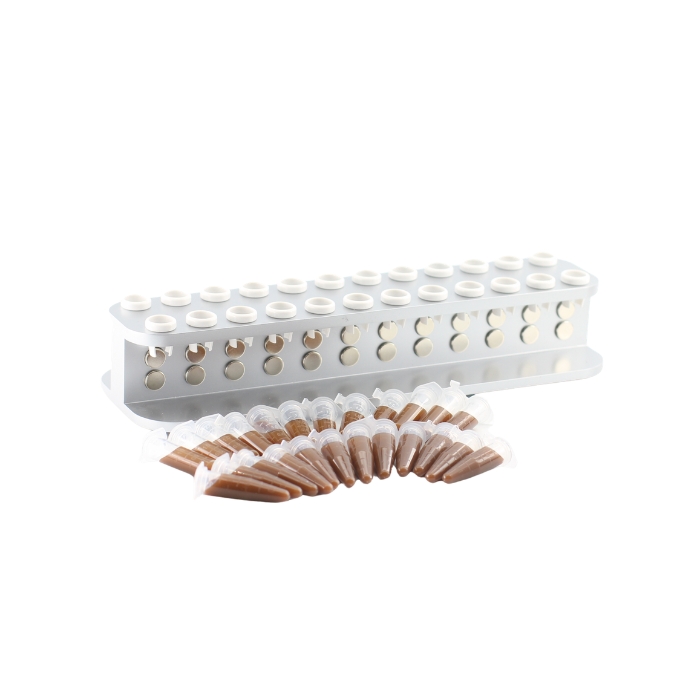

6. Magnetic bead adsorption

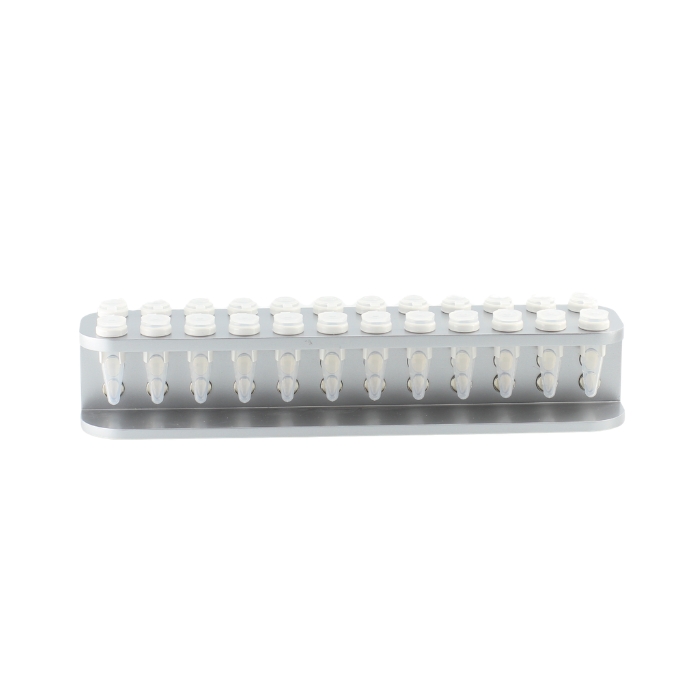

- Before bead adsorption

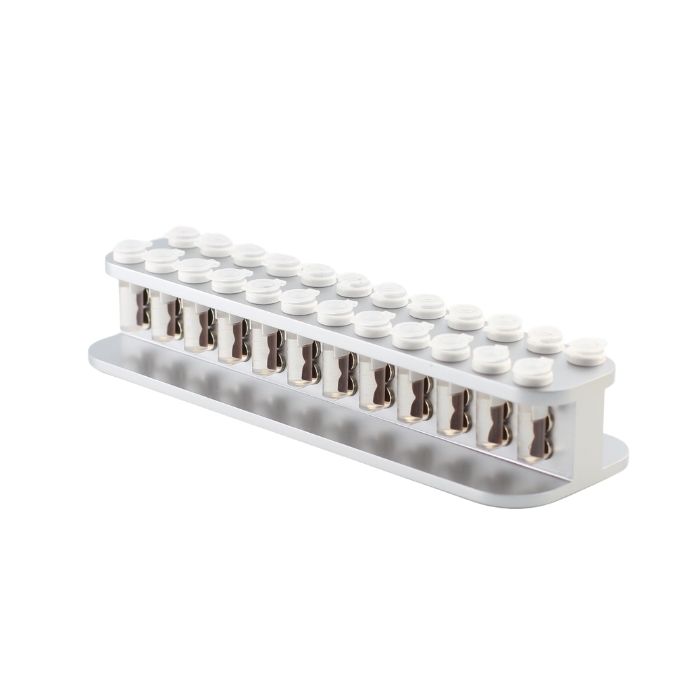

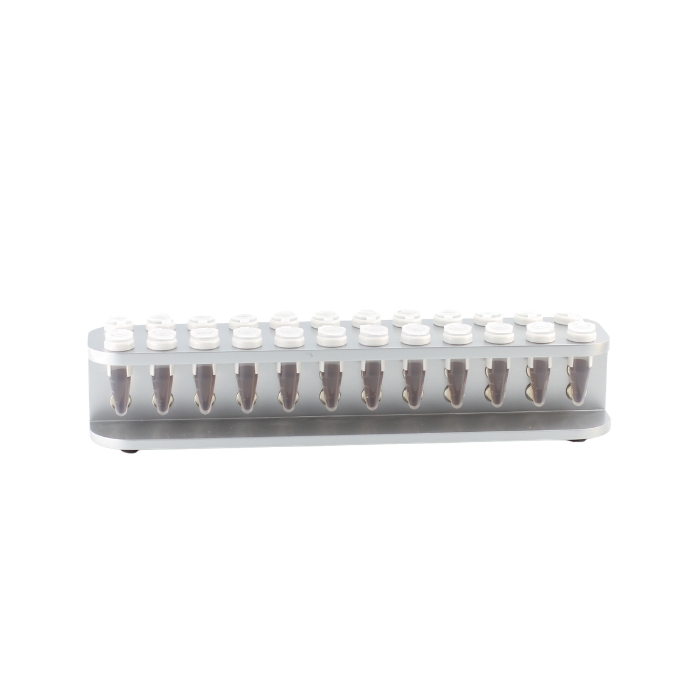

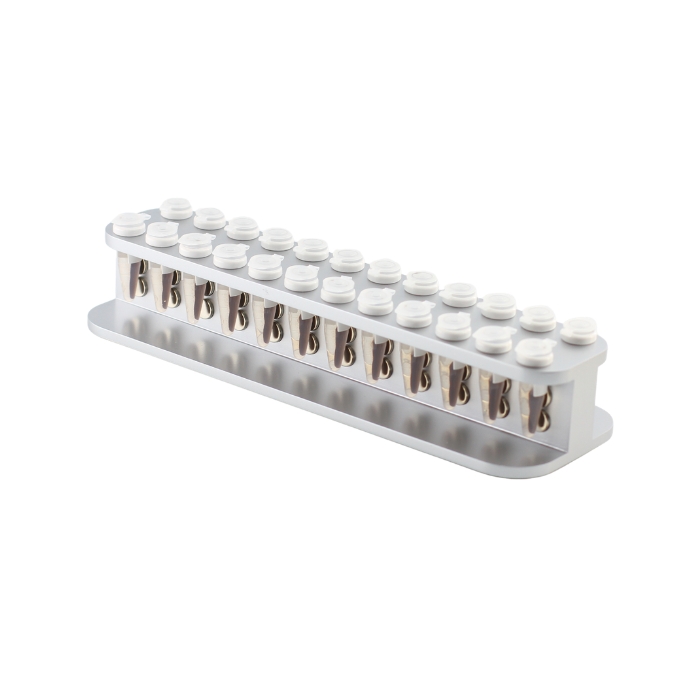

- 1500 µL bead mixture adsorption

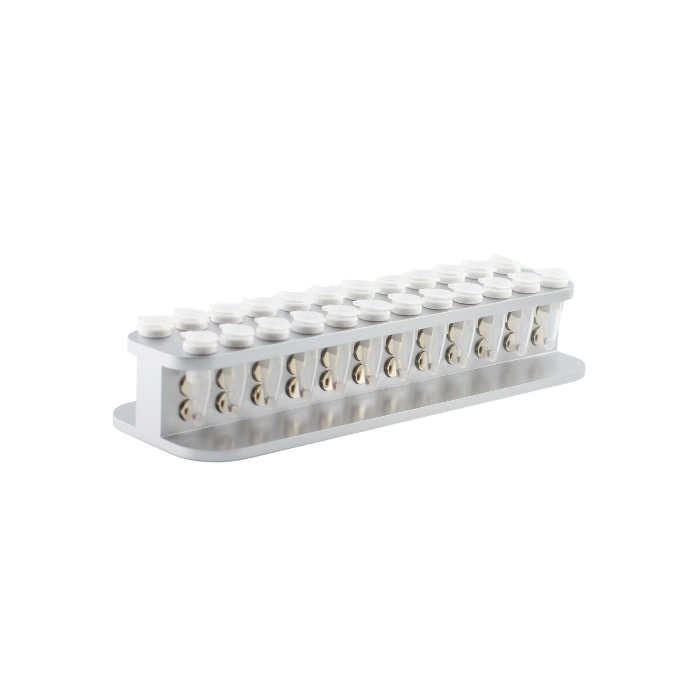

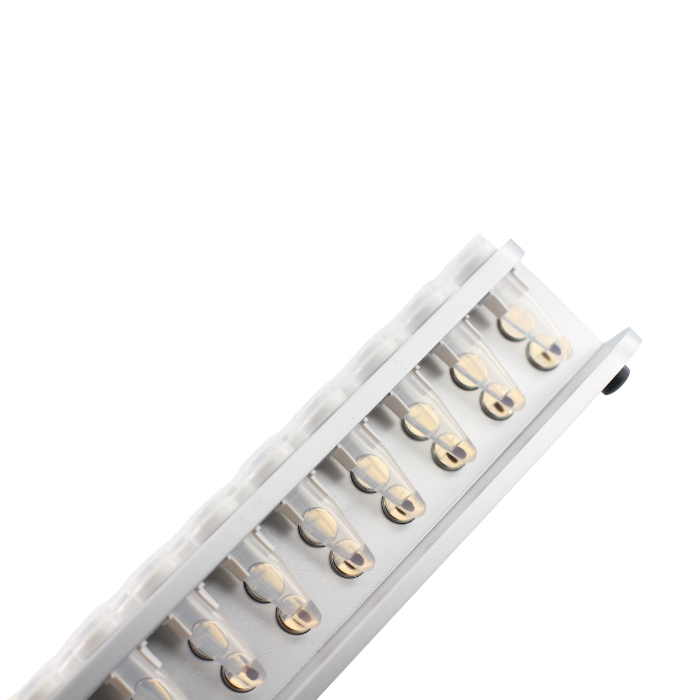

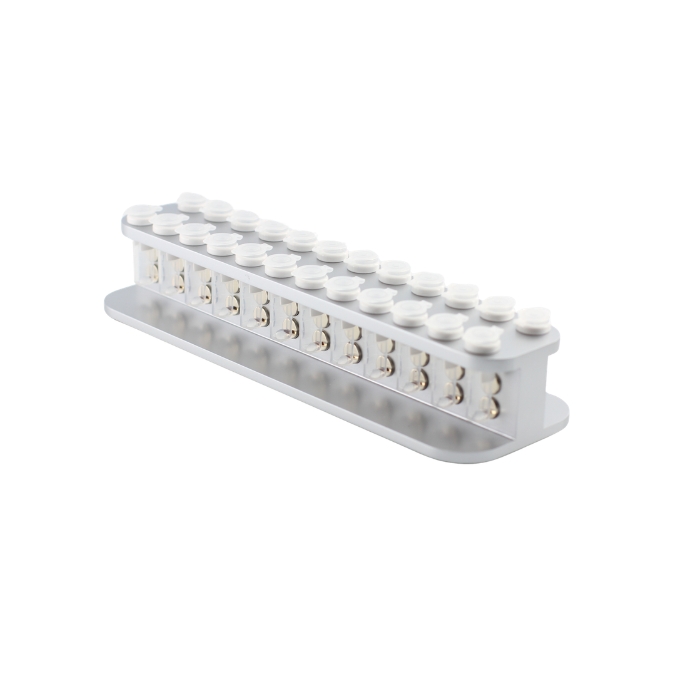

- 60 µL eluate adsorption: the magnet position attracts the beads to the liquid surface, making it easier for the operator to aspirate the supernatant eluate
