Product Introduction:The 4-hole magnetic rack / magnetic stand / magnetic separa

Models：MAG-4-4-C

Time：2026-08-29

Applicable Consumables：most 50ml centrifuge tubes; BD or Corning 50ml centrifuge tubes or 50ml free-standing centrifuge tubes

Visits：

Service hotline

+86 18938927592

Enquire Now

PRODUCT

product

NEWS

News Center

Products

Product Introduction:

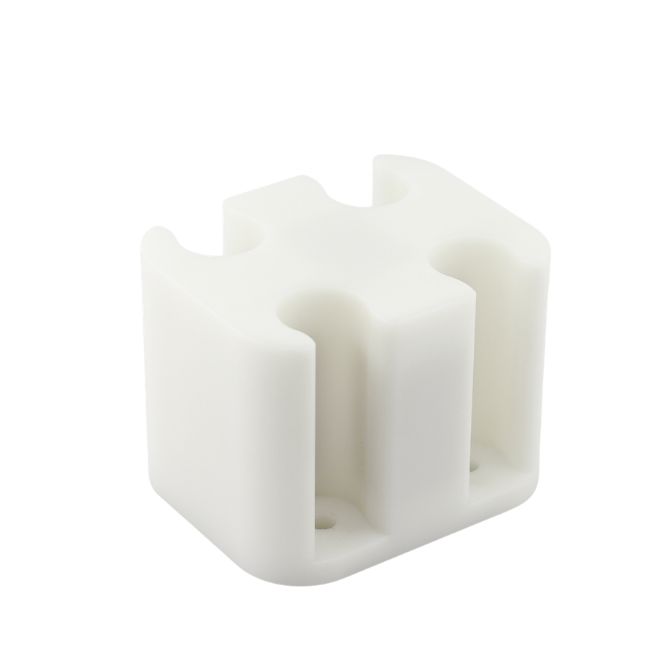

The 4-hole magnetic rack / magnetic stand / magnetic separation rack (Magnetic Separation Rack) launched by Shenzhen BORHEE Technology Development Co., Ltd. can efficiently separate all types of magnetic beads. Place 50 ml centrifuge tubes on the rack, and magnetic separation is completed in an average of 30 seconds. With enhanced magnetic force, it is suitable for rapid bead adsorption, achieving rapid separation and purification of cells, proteins or nucleic acids. On the 4-hole rack, centrifuge tubes fit snugly against the magnets, making the separation process intuitive and convenient. Made of the latest material, POM, which is more resistant to acids and alkalis.

Technical Parameters:

Dimensions (mm): 120×100×92

Well diameter: 29.5 mm - suitable for 50 ml centrifuge tubes

Optimal working volume: 2-50 ml

Recommended tubes: most 50 ml centrifuge tubes on the market; BD or Corning 50 ml centrifuge tubes, or 50 ml free-standing centrifuge tubes

Operation:

1. Place the centrifuge tube containing the incubated bead-target mixture on the magnetic rack.

2. Wait 30 seconds until the beads are pulled to the centrifuge tube wall.

3. Carefully pour off the liquid, or aspirate and discard it with a pipette.

4. Remove the tube from the magnetic rack and return it to a standard tube rack; the magnetic separation is complete.

Application Features:

1. A small-scale dedicated magnetic separation tool designed for biological experiments, suitable for sequencing, antibody purification, immunoprecipitation, co-immunoprecipitation, cell sorting, nucleic acid separation and other operations.

2. Well designed and easy to operate. High magnetic field strength and rapid separation. Average magnetic separation time is 1 minute - fast and efficient.

3. Compact, lightweight and durable. The unique material makes the rack light yet long-lasting.

Application Images:

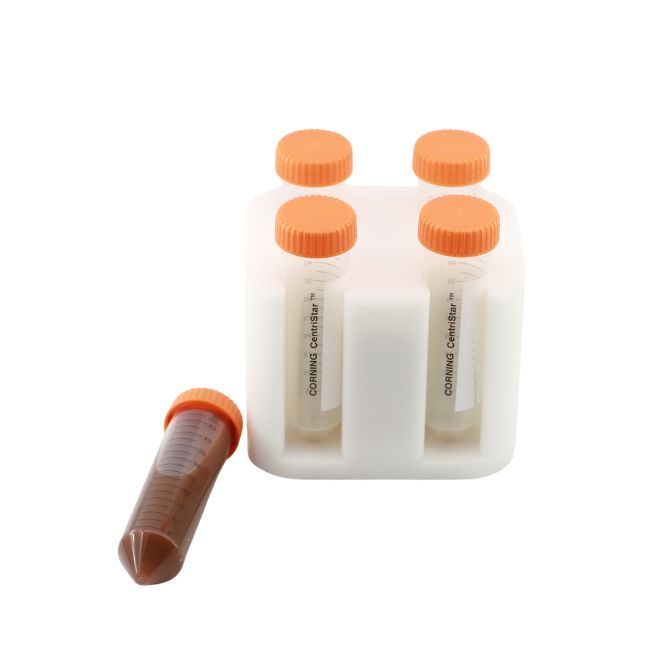

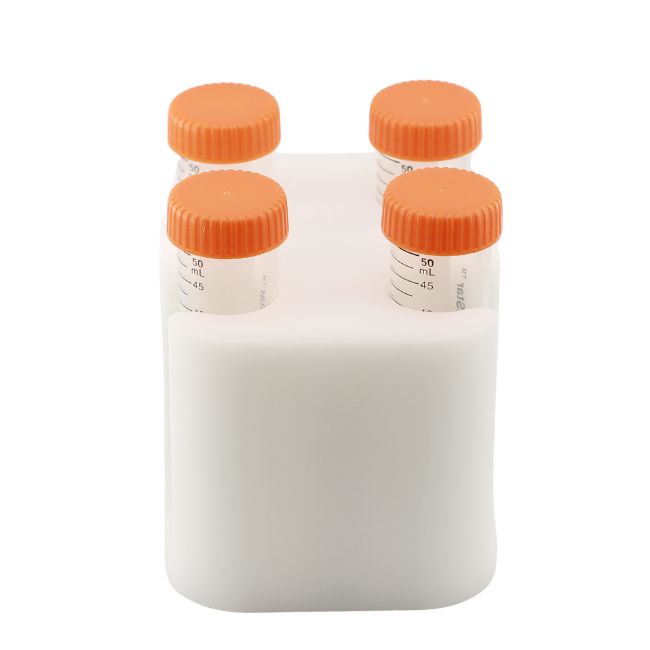

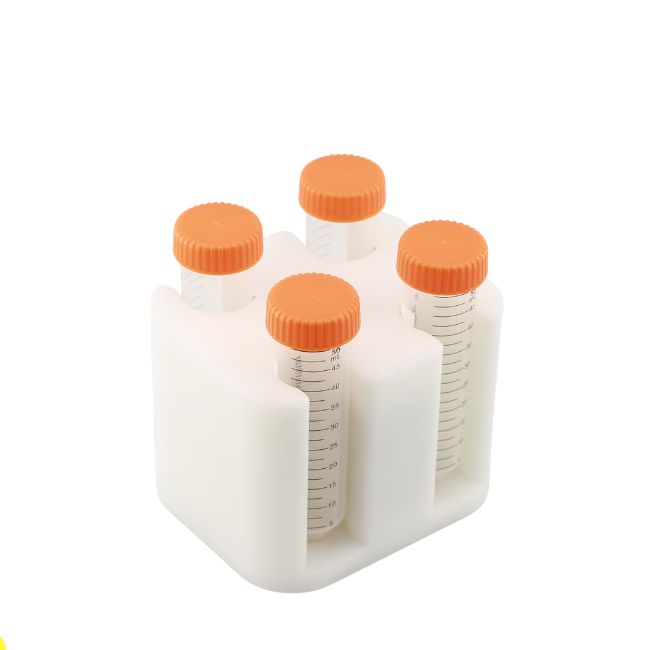

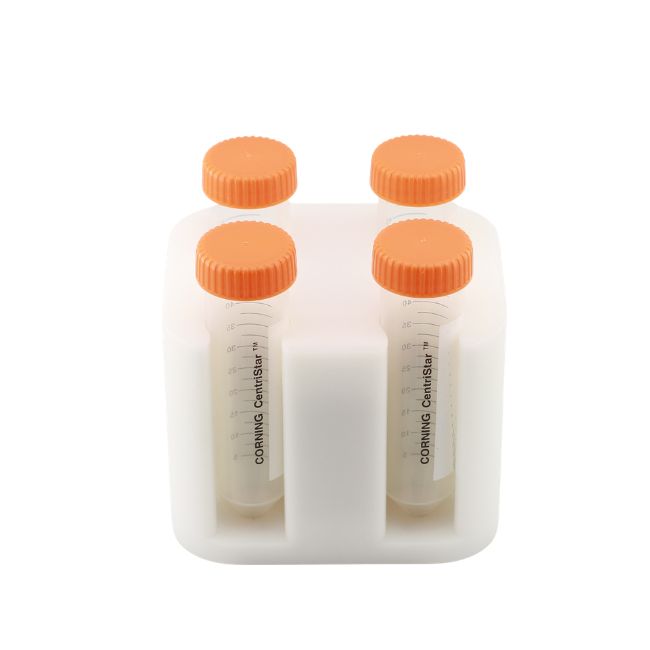

1. Can be used with 50 ml centrifuge tubes or free-standing centrifuge tubes

MAG-4-4-C - 1. Can be used with 50 ml centrifuge tubes or free-standing centrifuge tubes

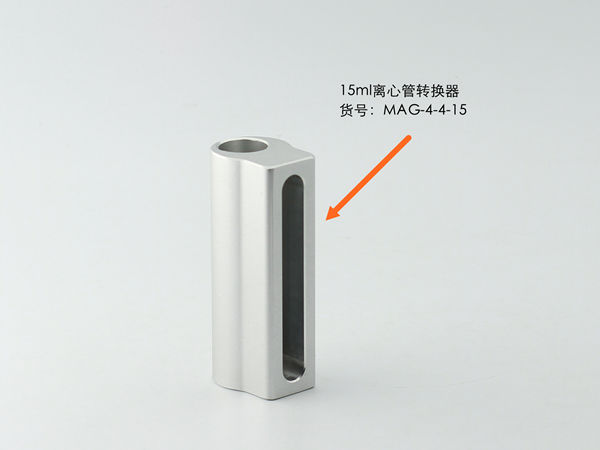

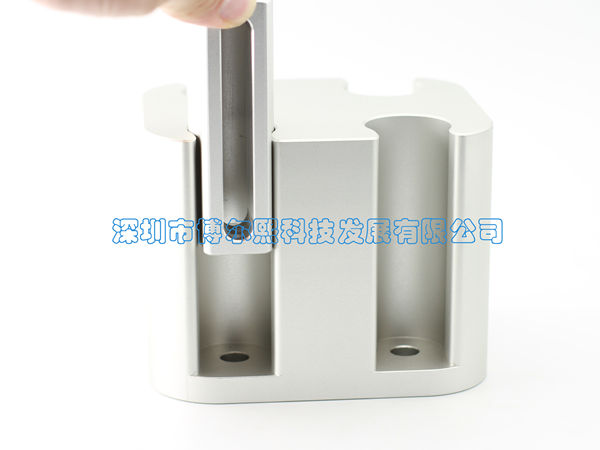

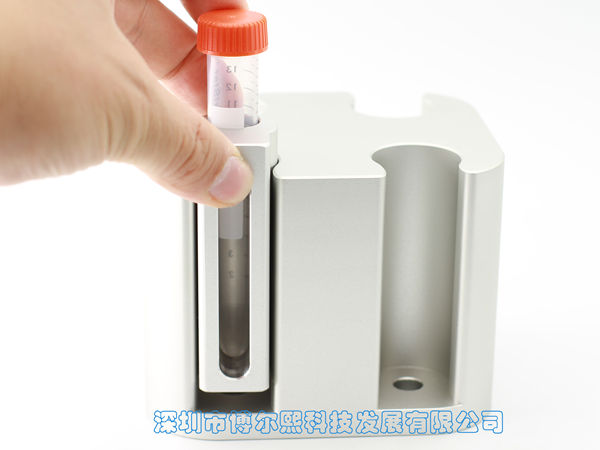

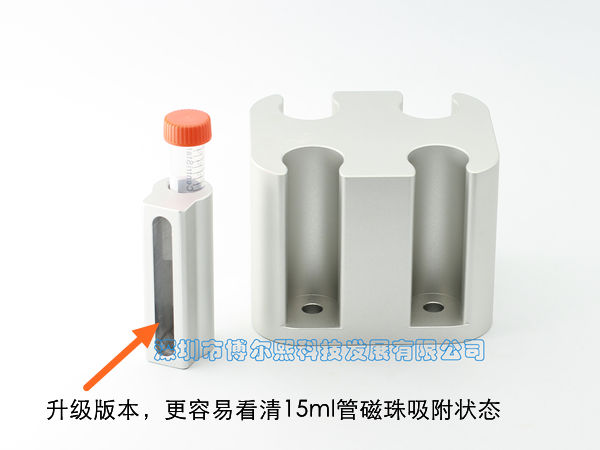

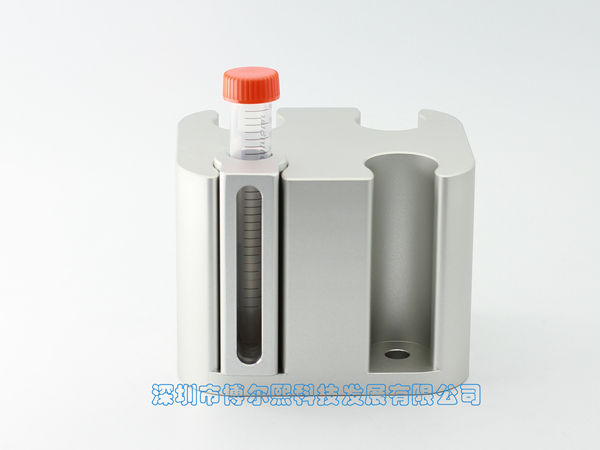

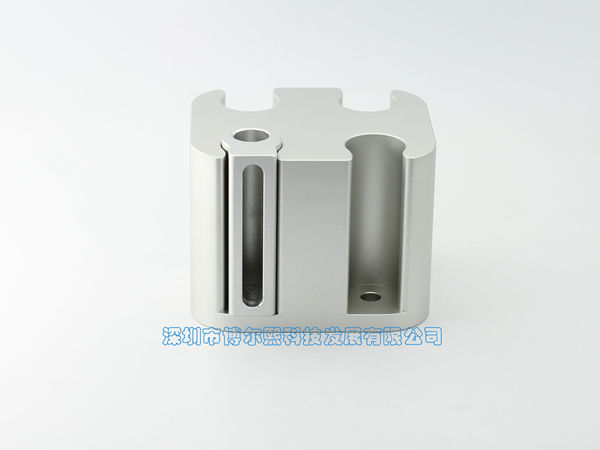

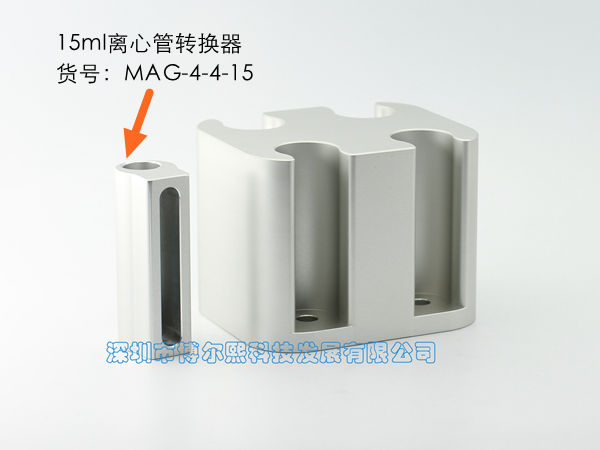

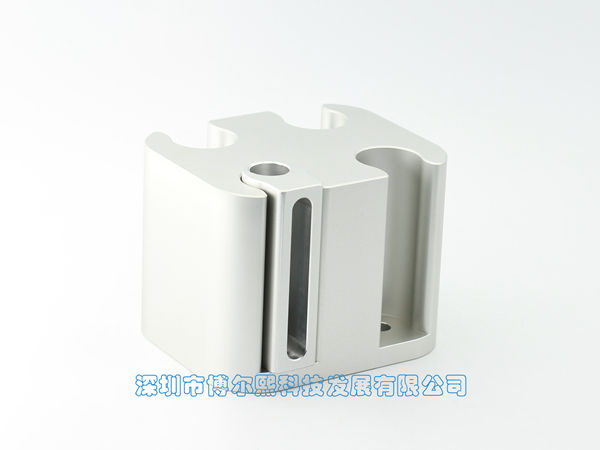

2. Holds 4 × 50 ml centrifuge tubes or free-standing tubes at a time; with a 15 ml centrifuge tube adapter (ordered separately, Cat. No. MAG-4-4-15), it can also be used for 15 ml centrifuge tubes

MAG-4-4-C - 1. Can be used with 50 ml centrifuge tubes or free-standing centrifuge tubes 2.
