Product Introduction:
The 4-hole magnetic rack / magnetic stand / magnetic separation rack (Magnetic Separation Rack) launched by Shenzhen BORHEE Technology Development Co., Ltd. enables highly efficient separation of all types of magnetic beads. Place a 5 ml flow cytometry tube on the rack and the magnetic separation is completed in only 30 seconds on average; with its super-strong magnetic force it is suitable for rapid bead attraction, thereby achieving rapid separation and purification of cells, proteins, nucleic acids and other substances. The tubes fit closely against the rack, making your separation process intuitive and convenient. This rack is best suited for cell sorting experiments; its special magnetic pole design fits cell sorting magnetic beads, with a magnetic field strength greater than 7,400 GS.
Technical Parameters:
Dimensions (mm): 50 × 65 × 70
Bore diameter: 12.2 mm, suitable for 5 ml flow cytometry tubes
Optimal working volume: 0.1–5 ml; cell unit range: 0.1–2.5 × 10^8 cells
Recommended tubes: 5 ml flow cytometry tubes, round-bottom tubes (e.g. Corning Catalog#352058)
Operation:
1. Place the blood collection tube containing the incubated magnetic bead–target mixture on the magnetic rack.
2. Leave it to stand for 30 seconds until the magnetic beads are attracted to the tube wall.
3. Carefully decant the liquid, or aspirate it with a pipette.
4. Remove the tube from the magnetic rack and return it to the tube stand; the magnetic separation is complete.
Application Features:
1. A small-scale dedicated magnetic separation tool designed for biological experiments, suitable for sequencing, antibody purification, immunoprecipitation, co-immunoprecipitation, cell sorting, nucleic acid separation and other operations.
2. Well designed and easy to operate. High magnetic field strength and rapid separation: average magnetic separation time of 1 minute — the separation process is fast and efficient.
3. Compact, lightweight and durable. The unique material makes the rack light yet long-lasting.
Application Images:

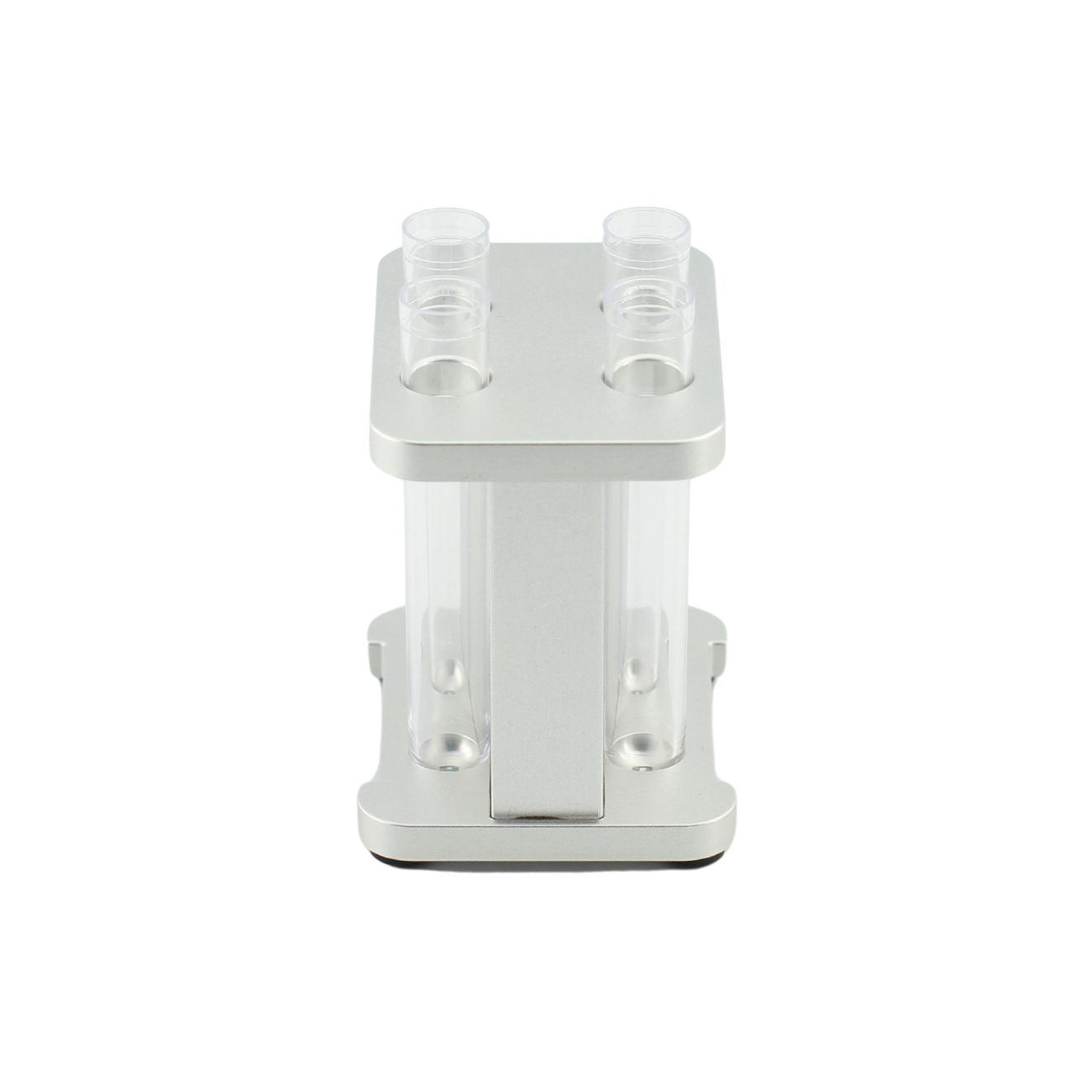

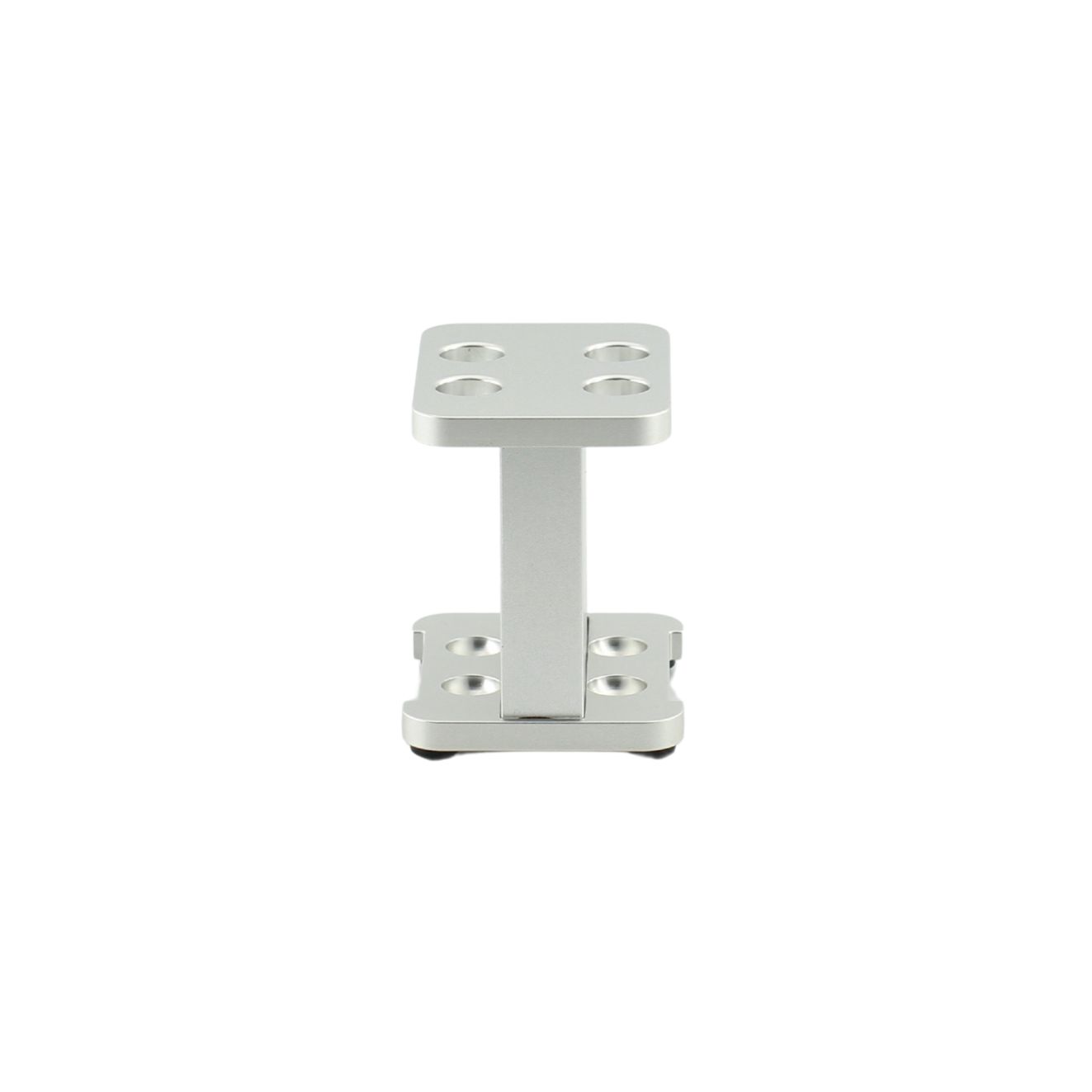

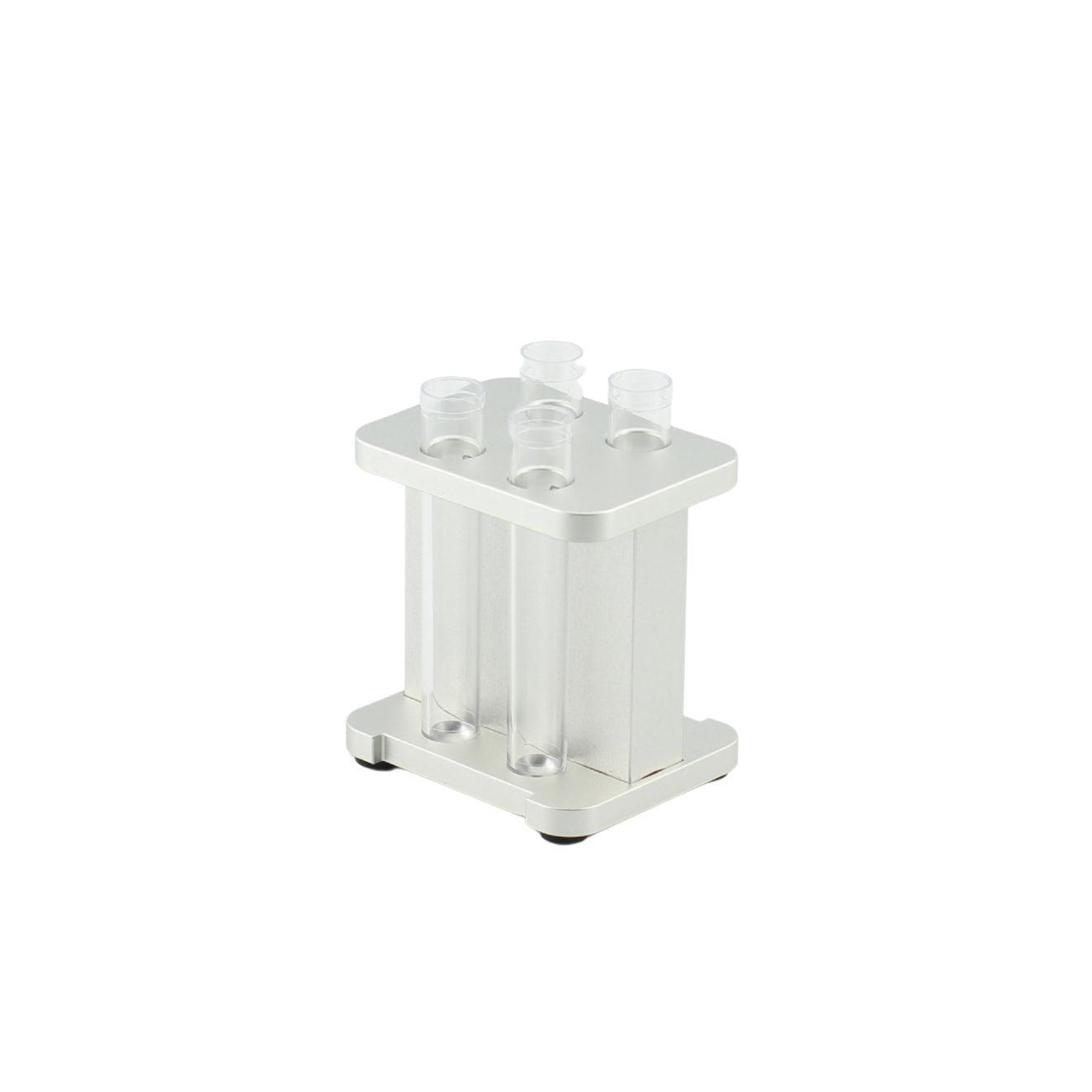

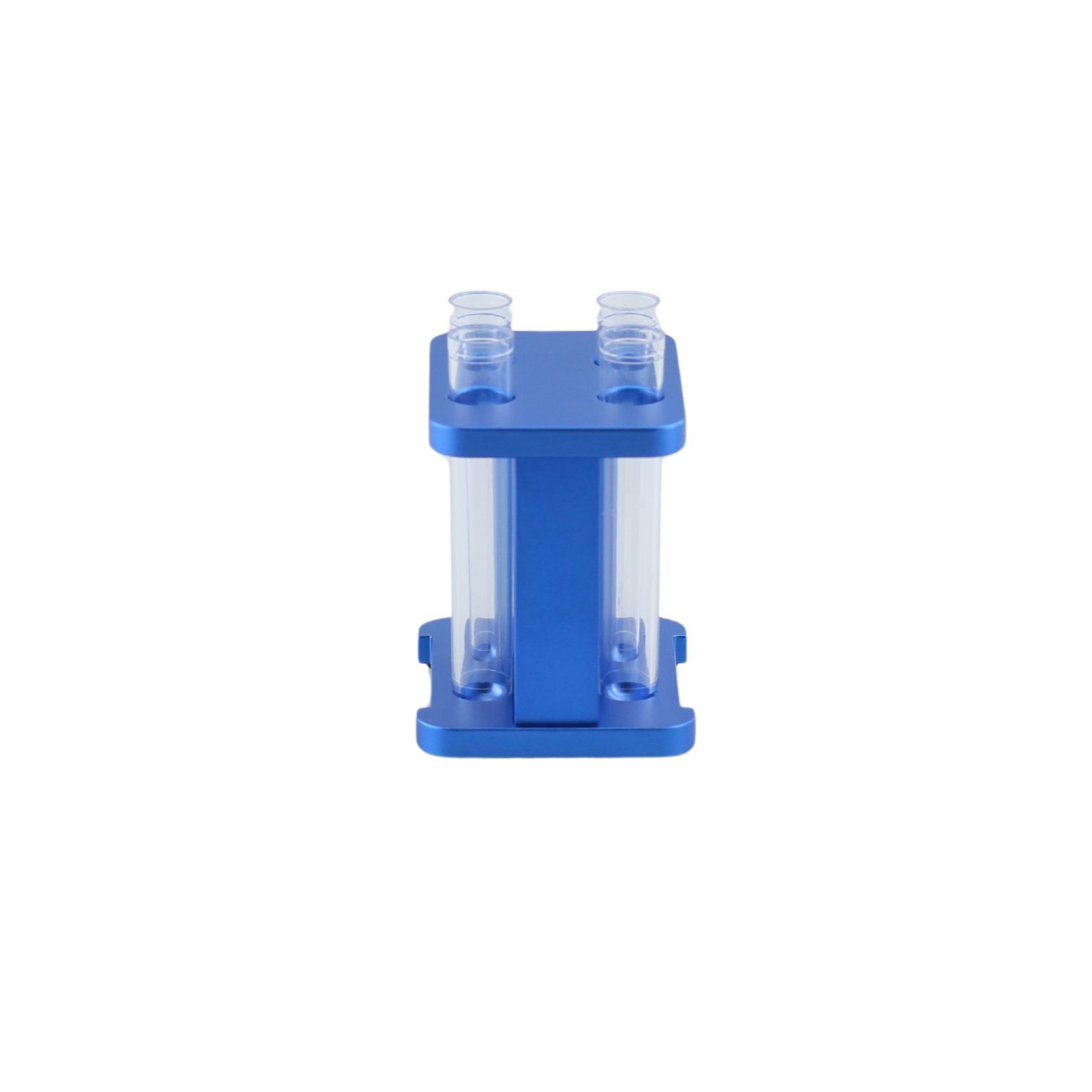

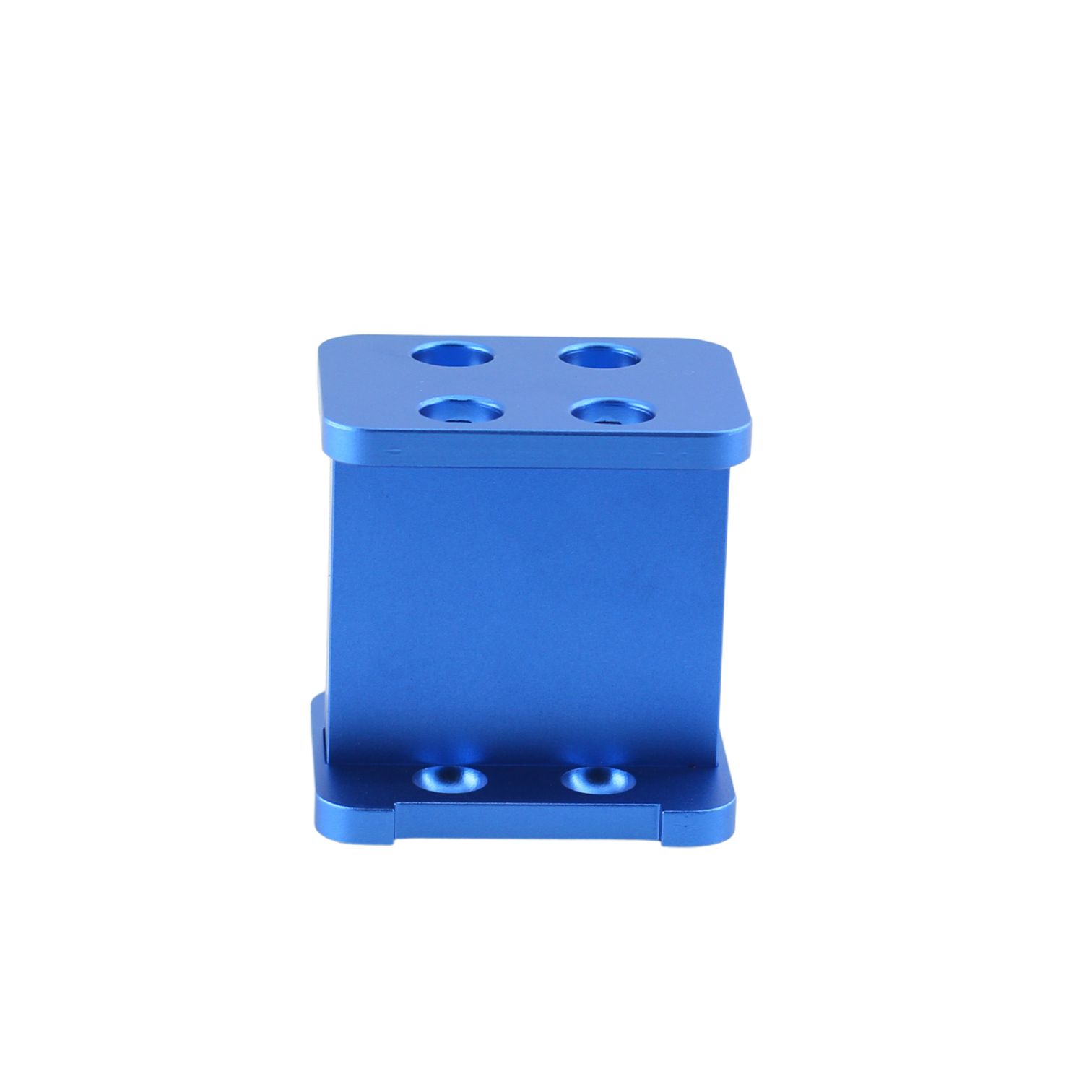

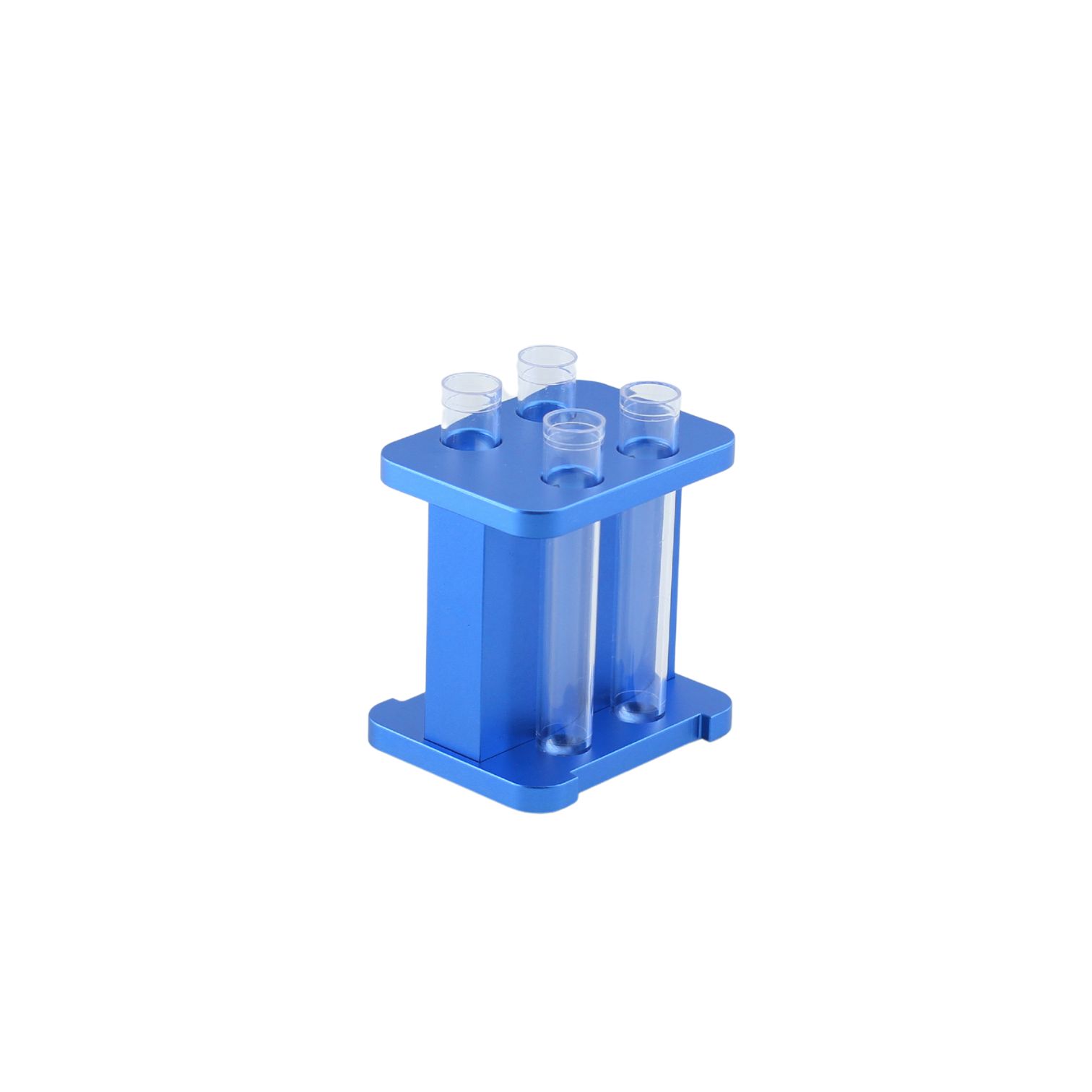

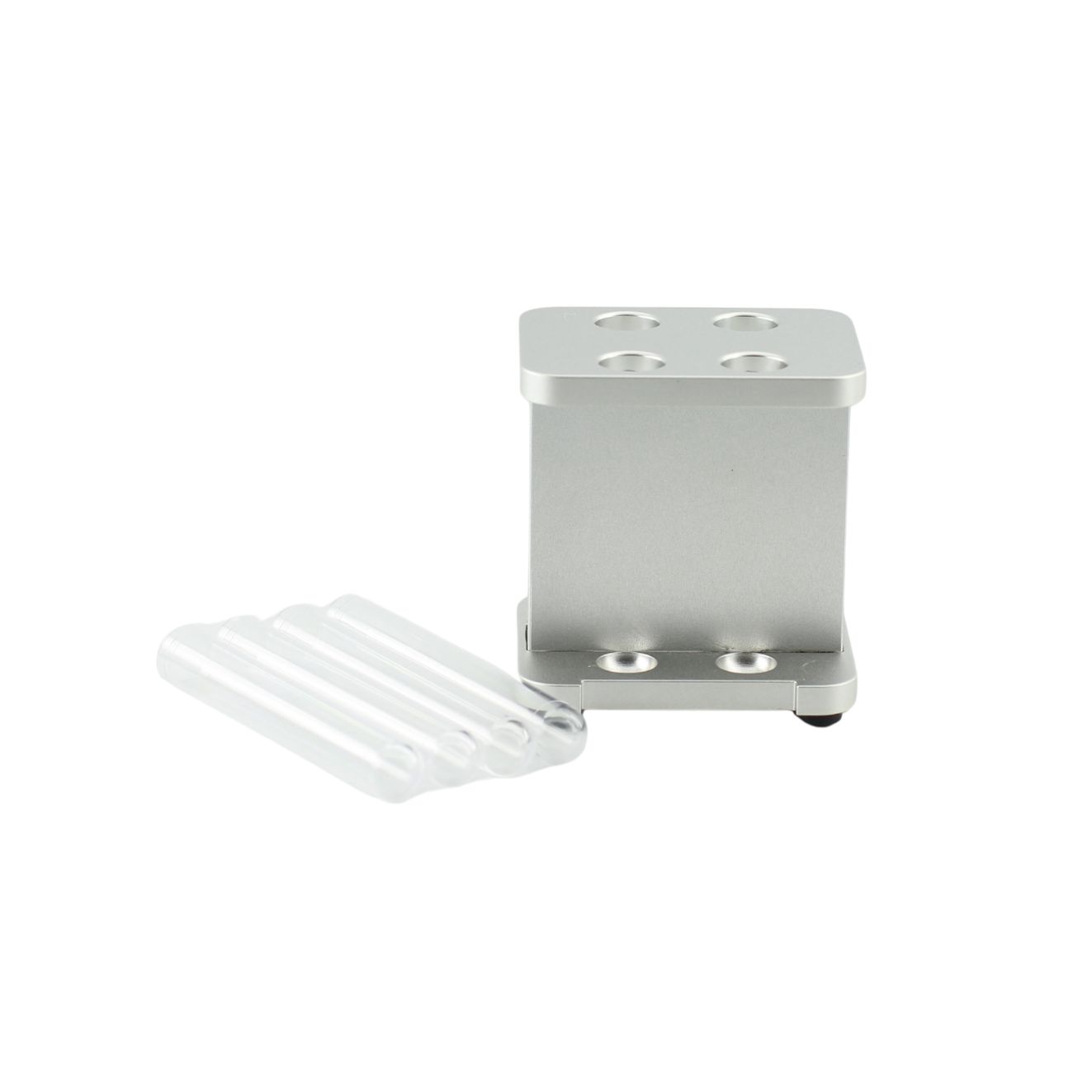

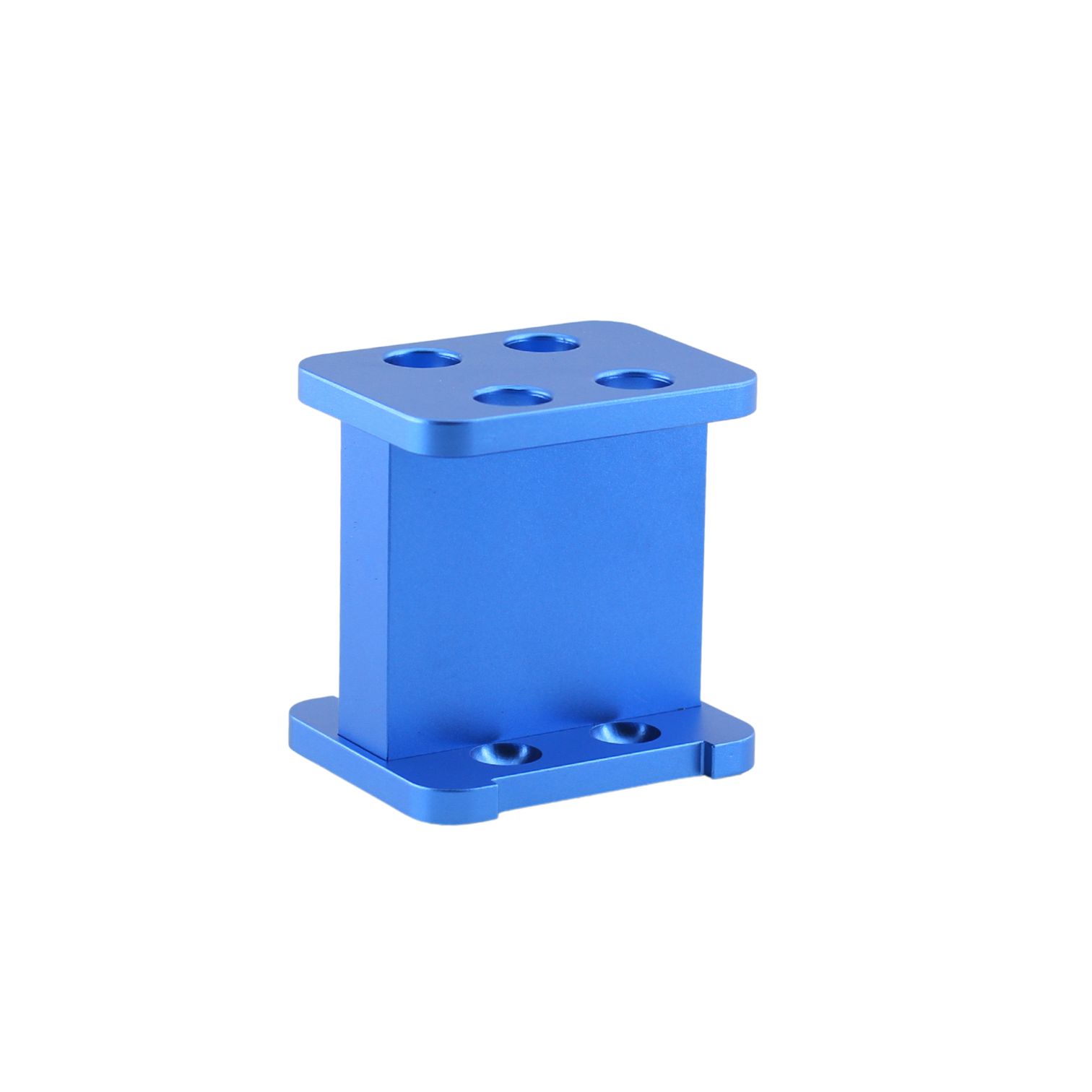

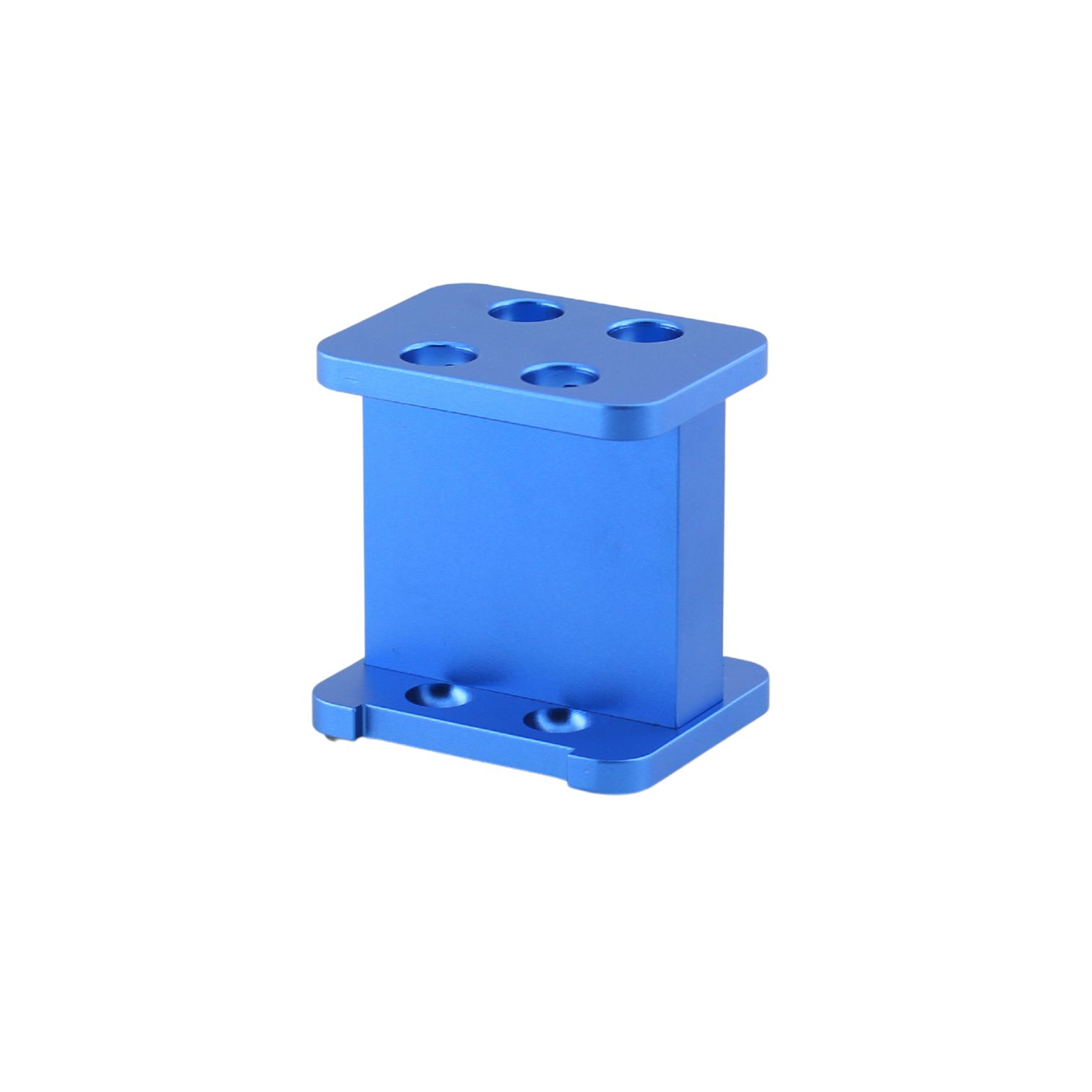

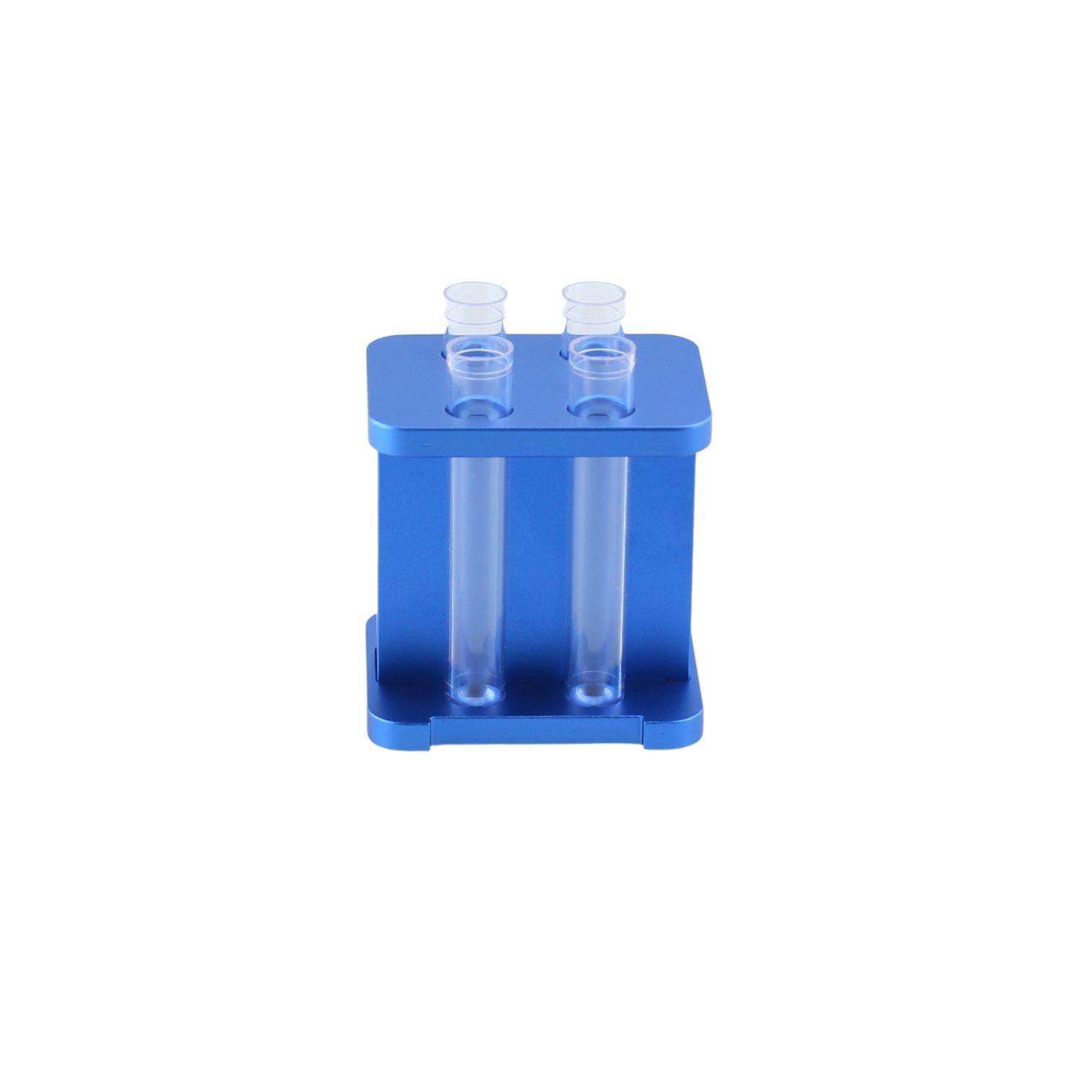

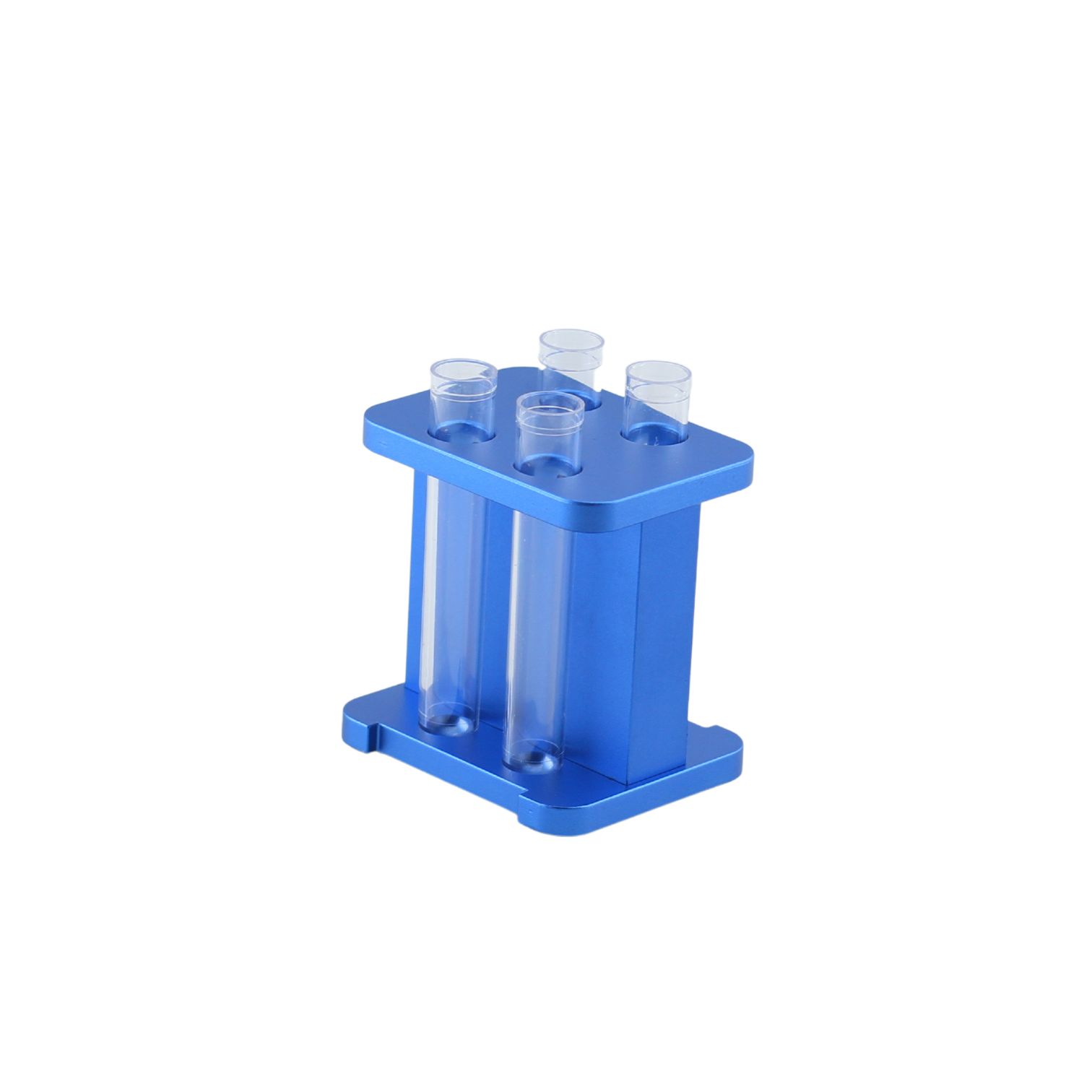

1. Can be used with 5 ml flow cytometry tubes; holds 4 × 5 ml flow cytometry tubes at a time

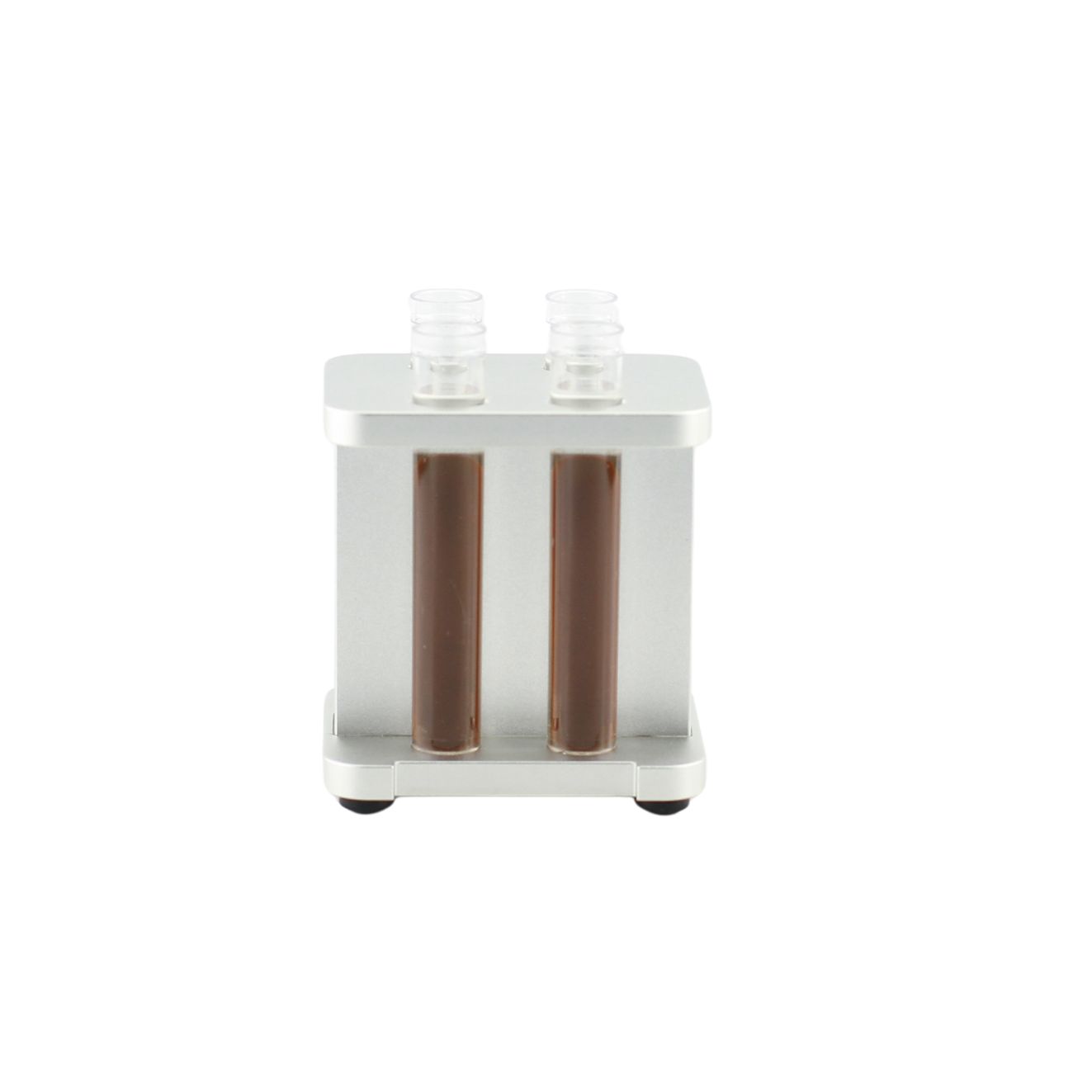

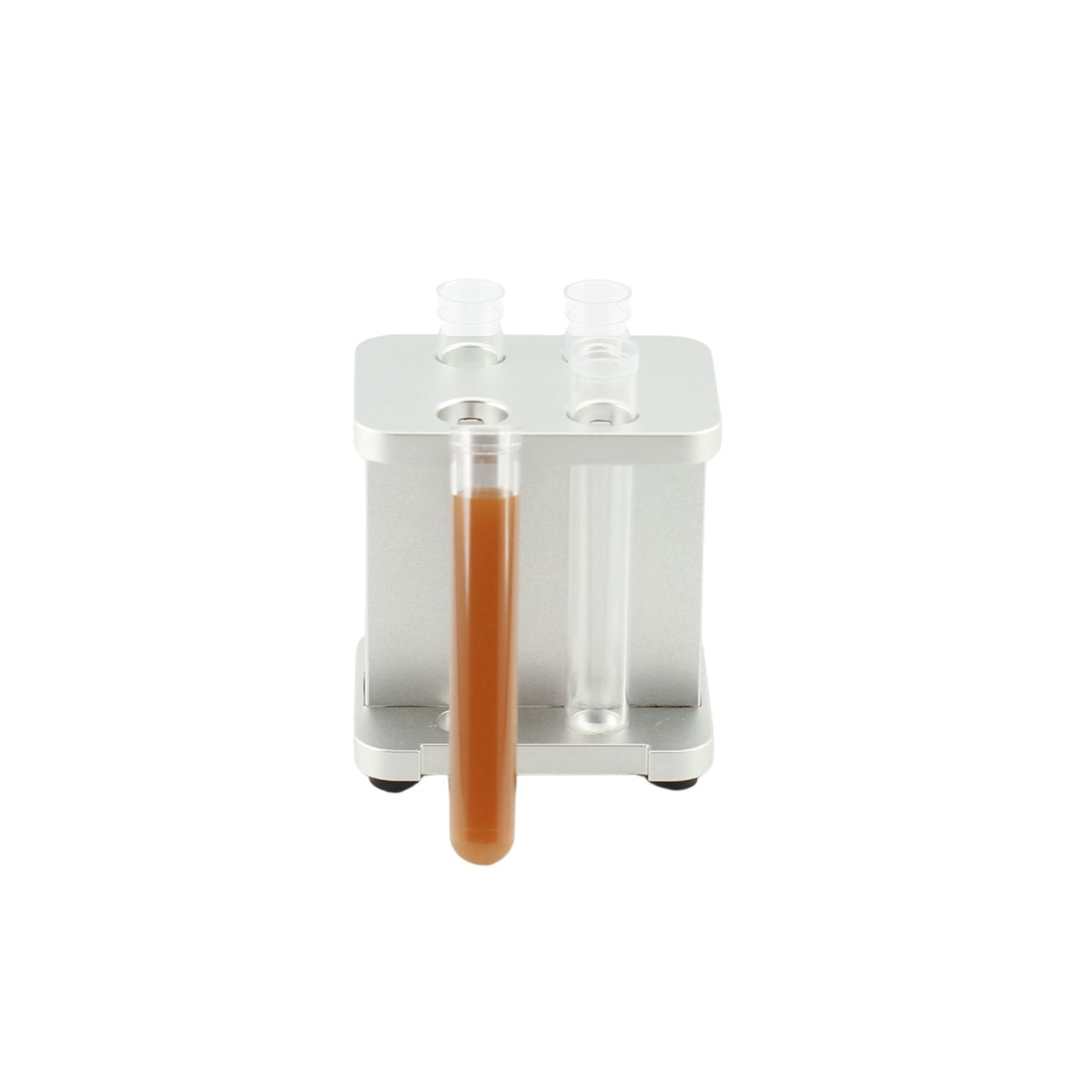

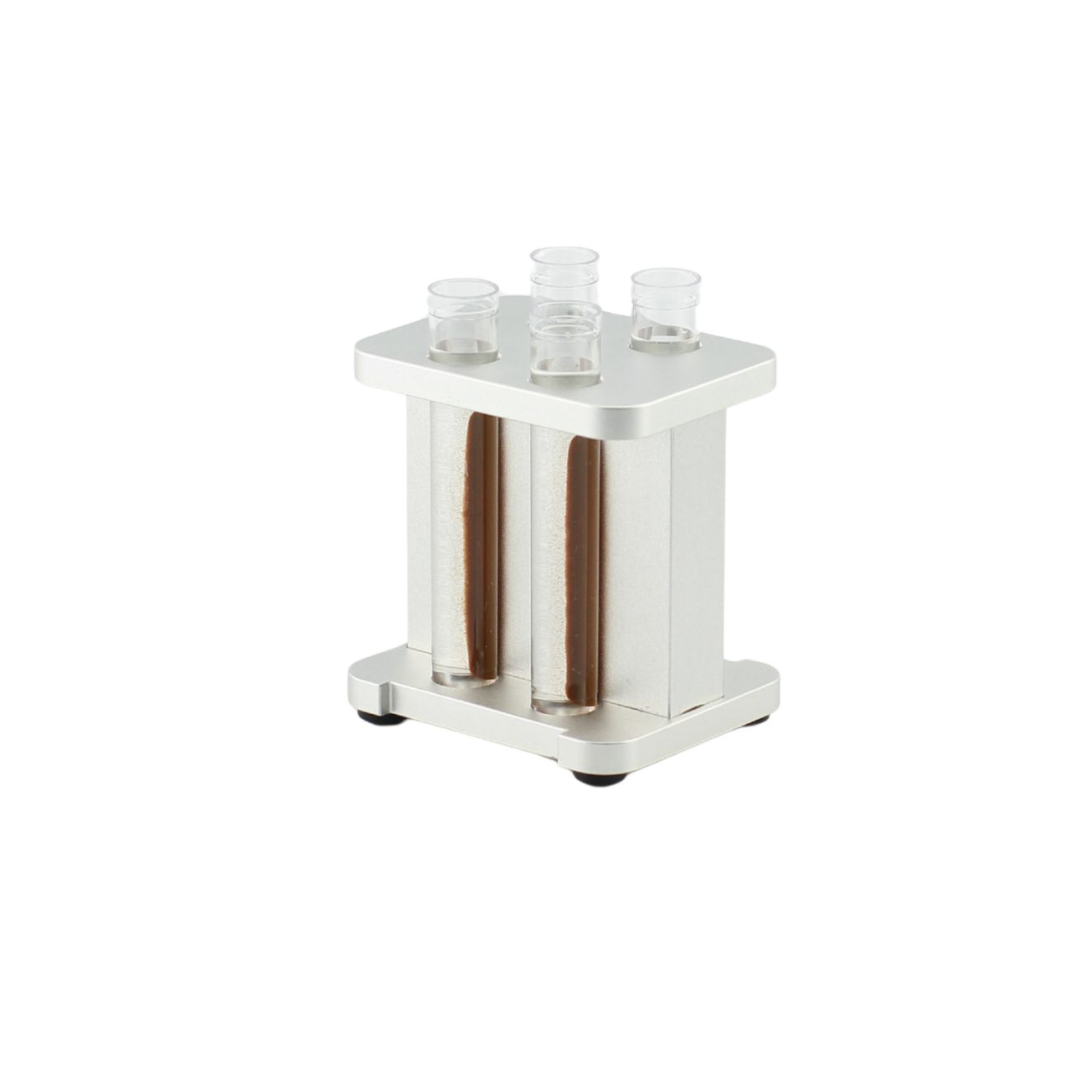

2. Magnetic bead attraction status
- Before bead attraction

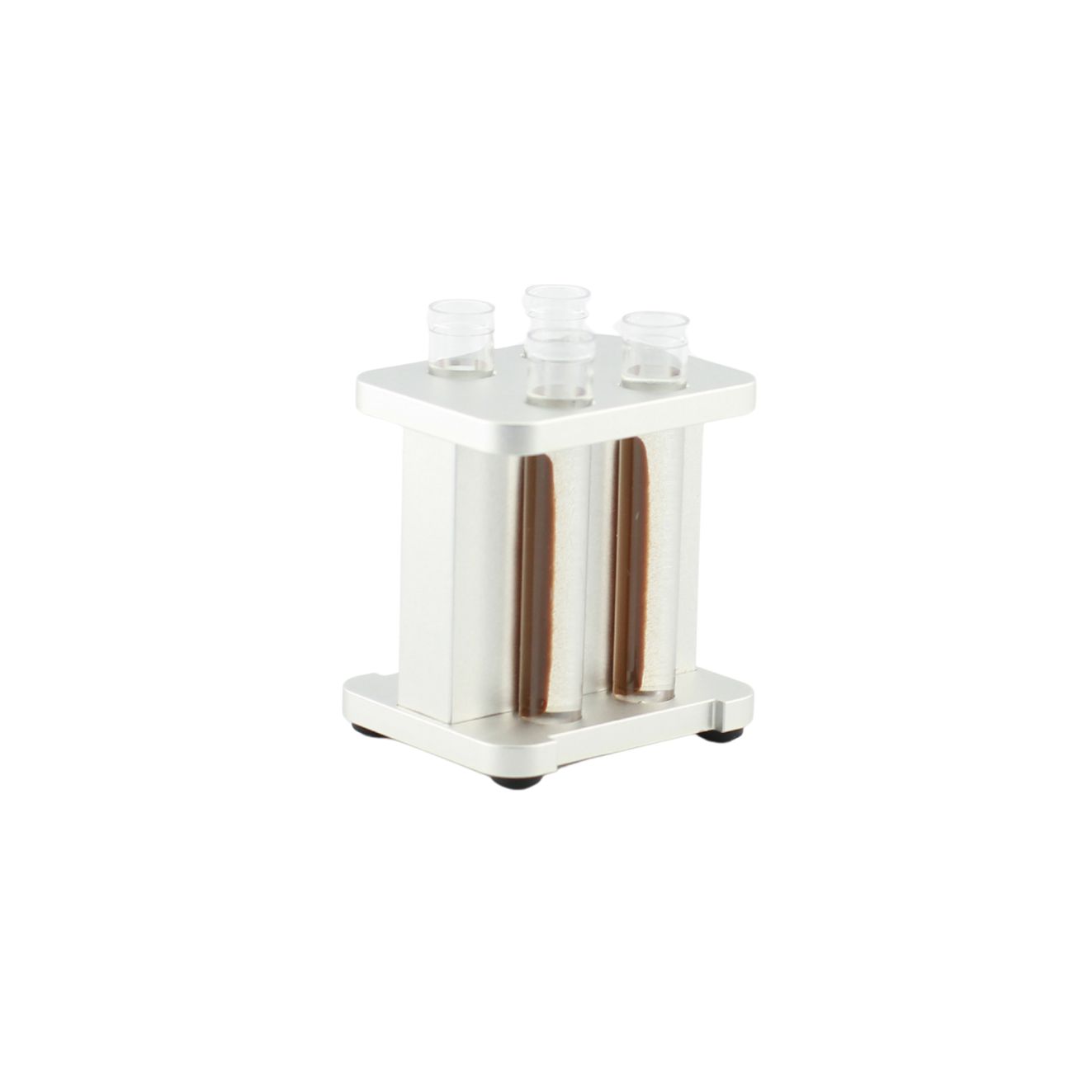

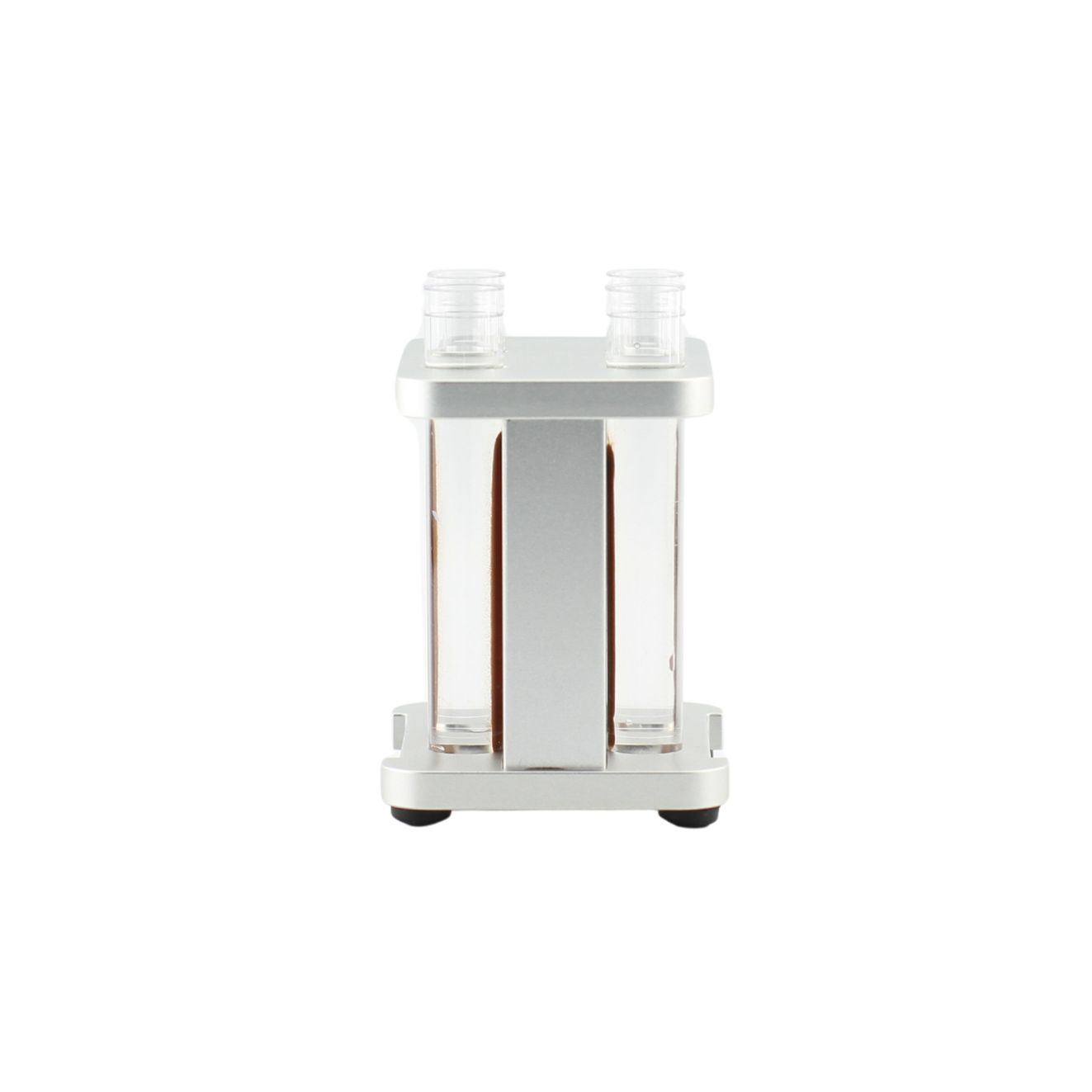

- After bead attraction
