Cell Sorting Magnetic Separators
Location： Home > PRODUCT > Cell Sorting Magnetic Separators
Models：MAG-XB-8
Time：2026-08-29
Applicable Consumables：5ml flow cytometry tubes
Visits：
Service hotline
+86 18938927592
Product Introduction:
The 8-hole magnetic separation rack (Magnetic Separation Rack) launched by Shenzhen BORHEE Technology Development Co., Ltd. achieves highly efficient separation of all types of magnetic beads. Place 5 ml flow cytometry tubes on the rack and the magnetic separation process is completed in just 15 seconds on average. With ultra-strong magnetic force, it is suitable for rapid attraction of magnetic beads, enabling rapid separation and purification of cells, proteins, nucleic acids and other substances. The tubes fit the rack exactly, keeping your separation process intuitive and convenient. This rack is best suited for cell sorting experiments: the special magnetic pole design is made for cell sorting beads, with a magnetic field strength greater than 7400 GS.
Technical Parameters:
Specification (mm): 120 × 68 × 70
Hole diameter: 12.2 mm, for 5 ml flow cytometry tubes
Optimal working volume: 0.1-5 ml; cell count range: 0.1 - 2.5 × 10⁸ cells
Recommended tubes: 5 ml flow cytometry round-bottom tubes (e.g. Corning Catalog#352058)
Operation:
1. Place the tube containing the incubated mixture of magnetic beads and target substance on the magnetic rack.
2. Wait 15 seconds until the beads are attracted to the tube wall.
3. Carefully pour off the liquid, or aspirate it with a pipette.
4. Remove the tubes from the rack and return them to a tube holder, completing the magnetic separation.
Application Features:
1. A small-scale dedicated magnetic separation tool designed for biological experiments; suitable for sequencing, antibody purification, immunoprecipitation, co-immunoprecipitation, cell sorting, nucleic acid separation and other applications.
2. Well-designed and easy to operate. High magnetic field strength and rapid separation. Average magnetic separation time is 15 seconds - fast and efficient.
3. Compact, lightweight and durable. The unique material makes the rack light yet long-lasting.
Application Images:

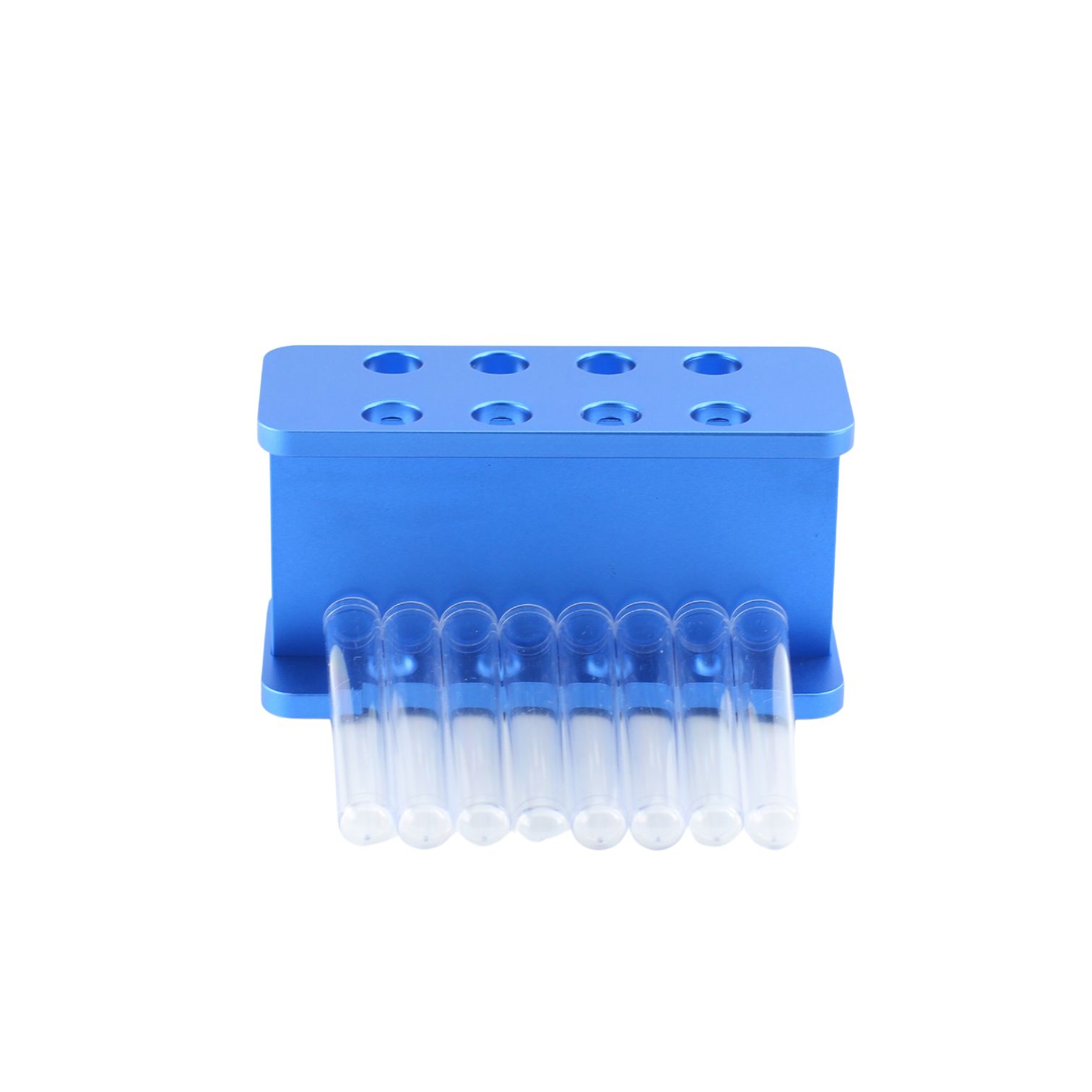

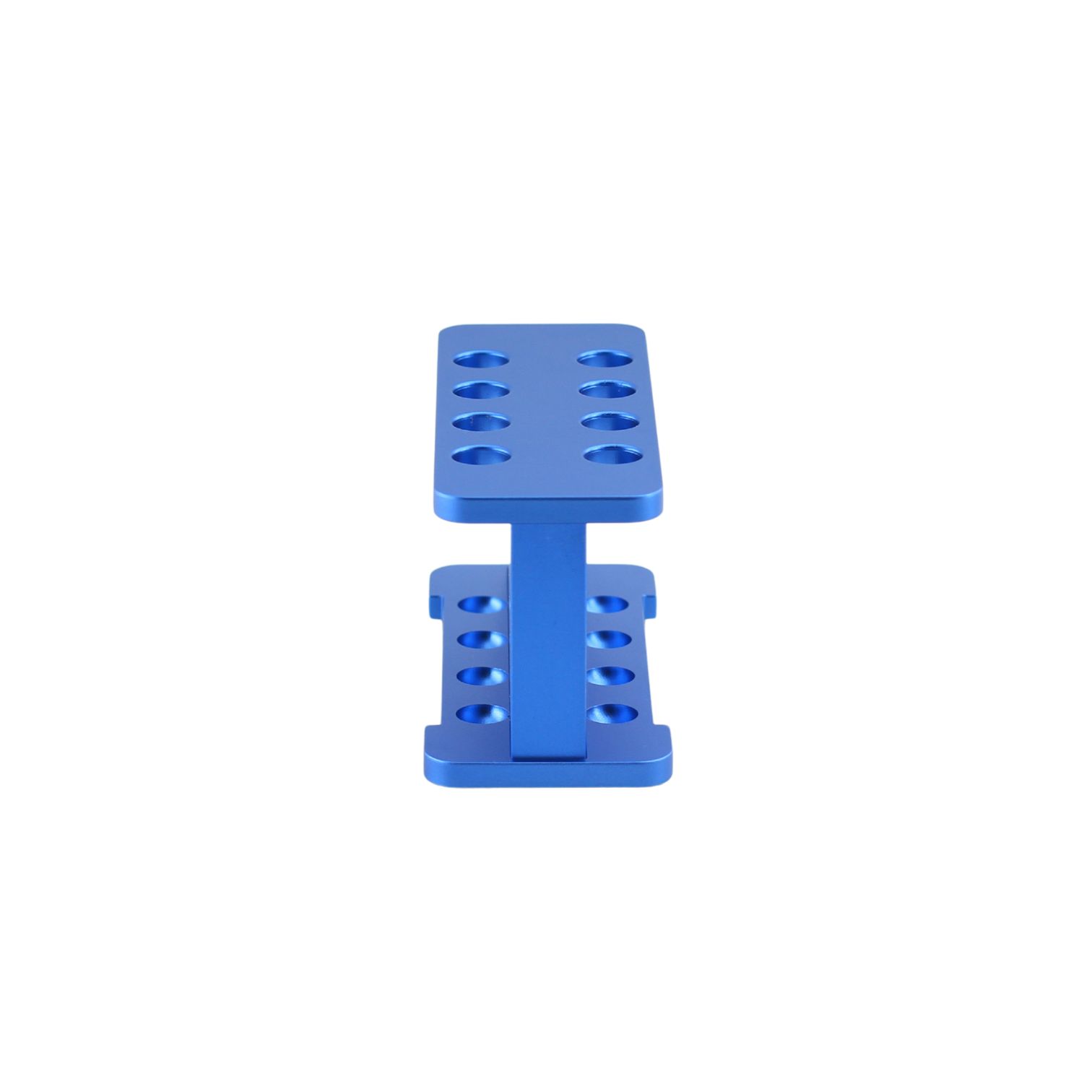

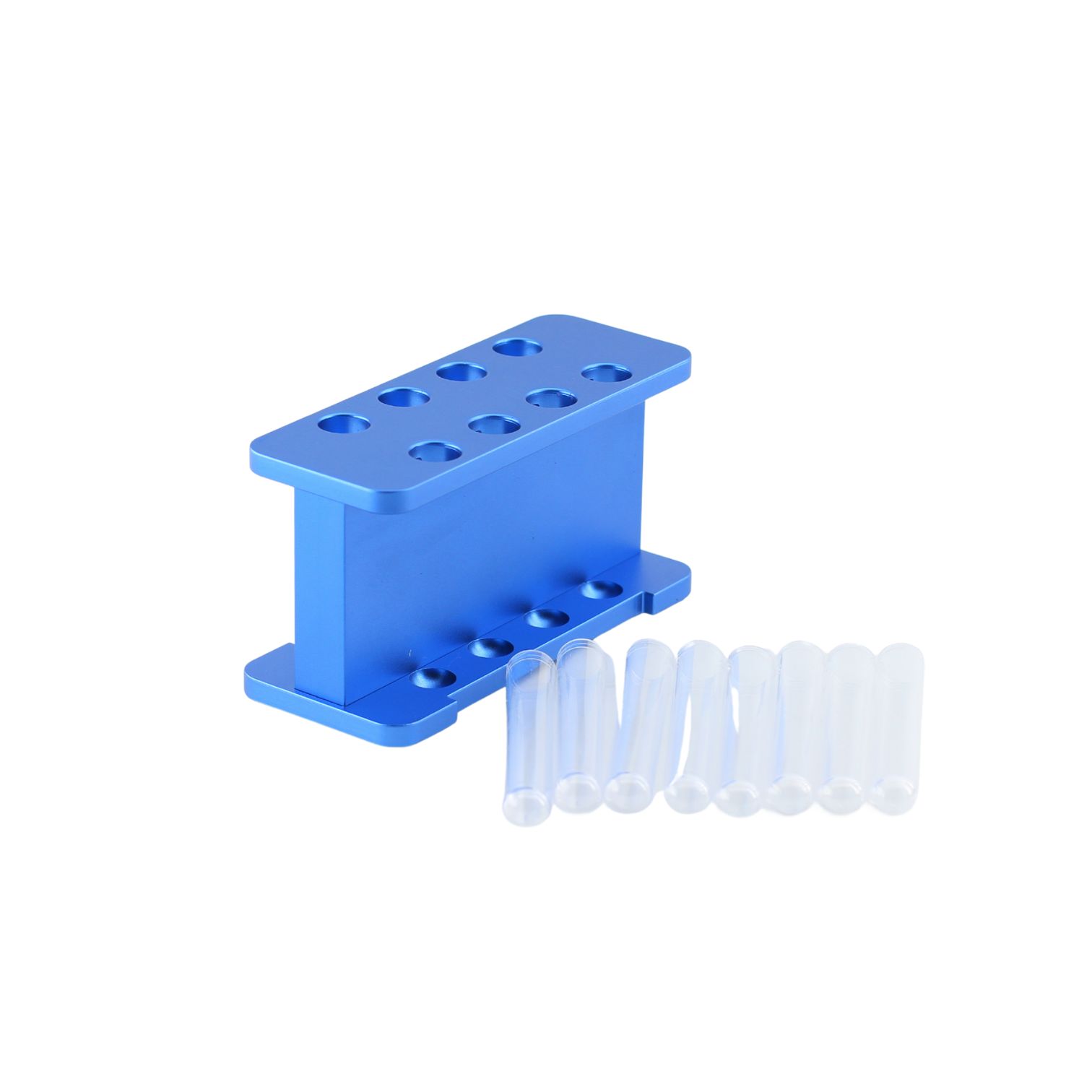

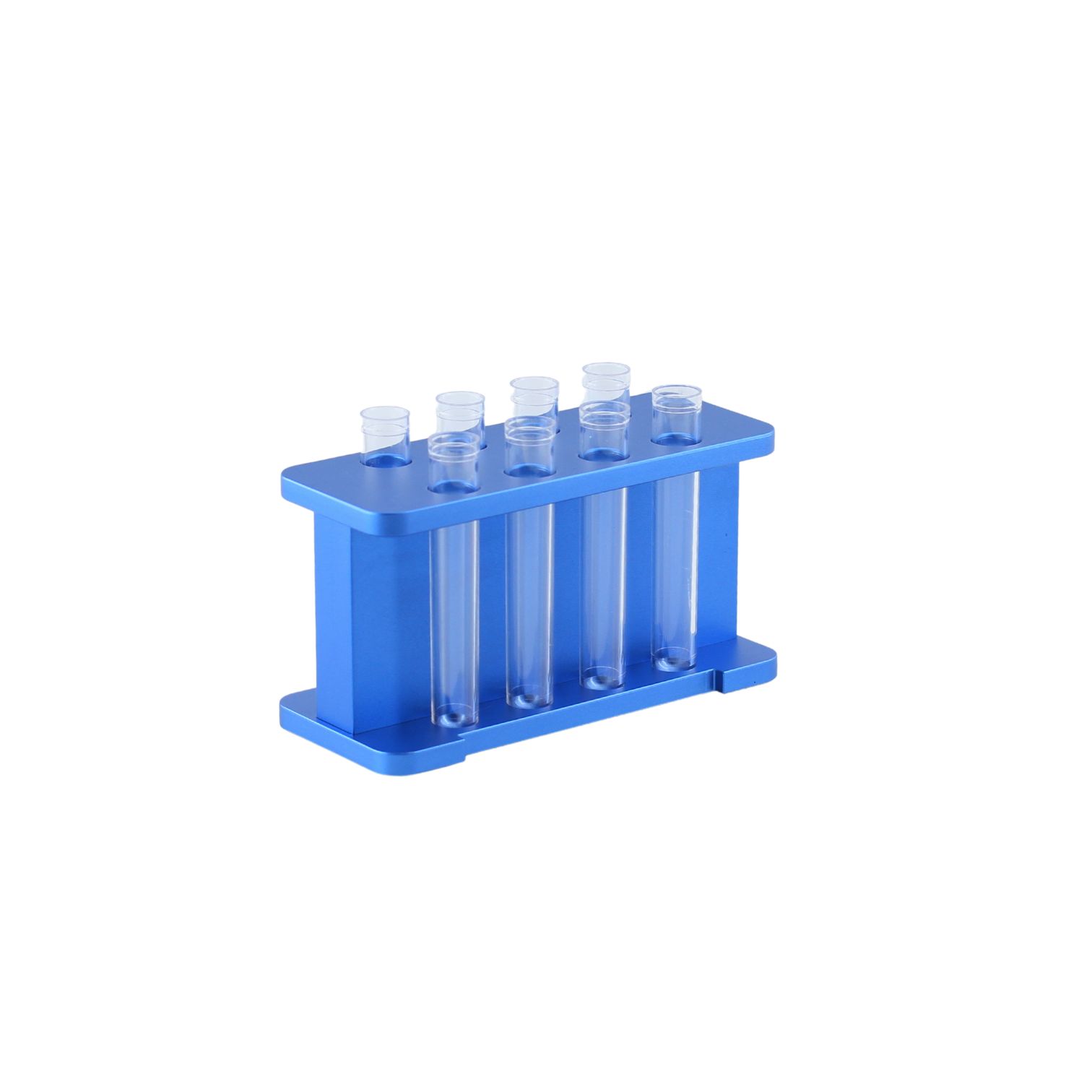

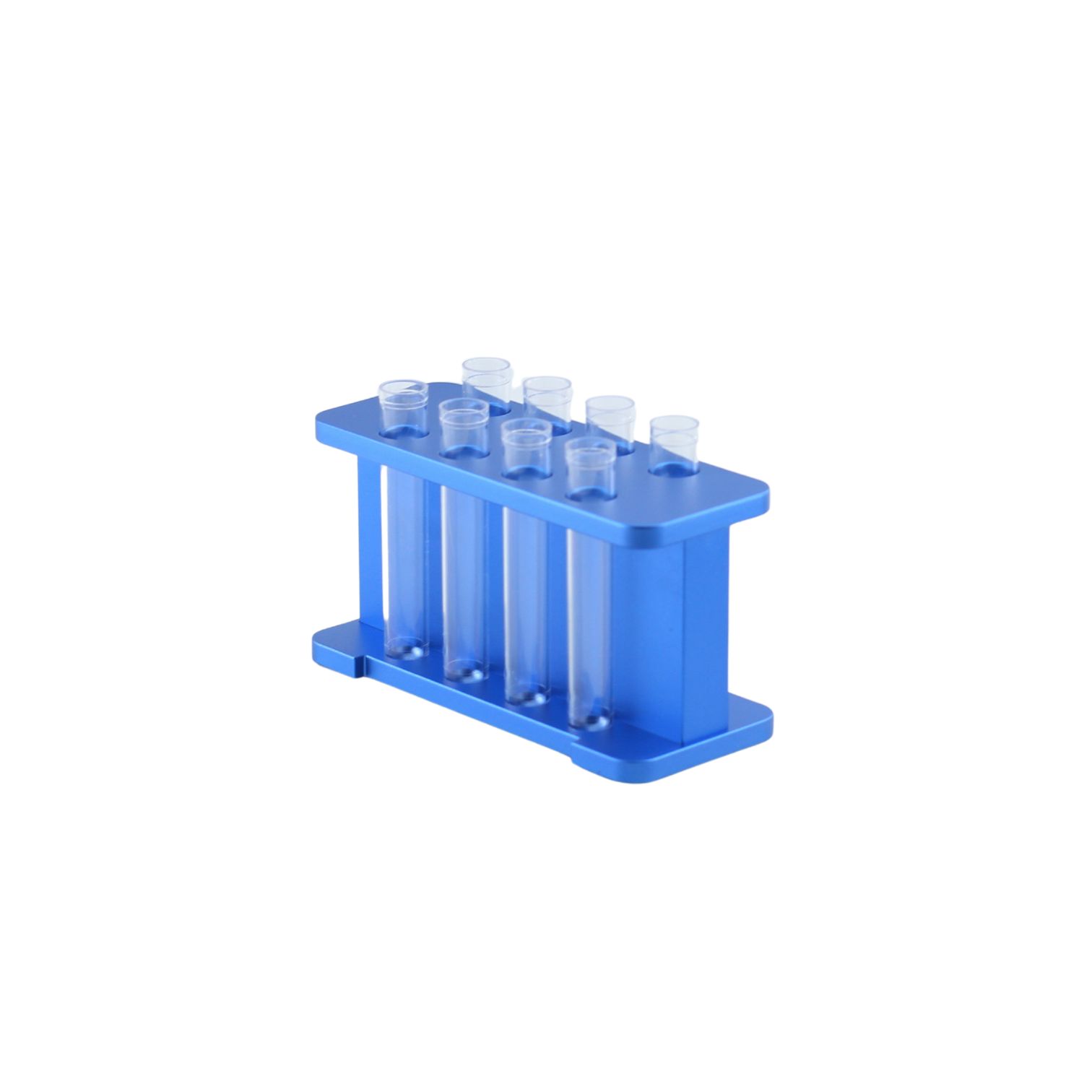

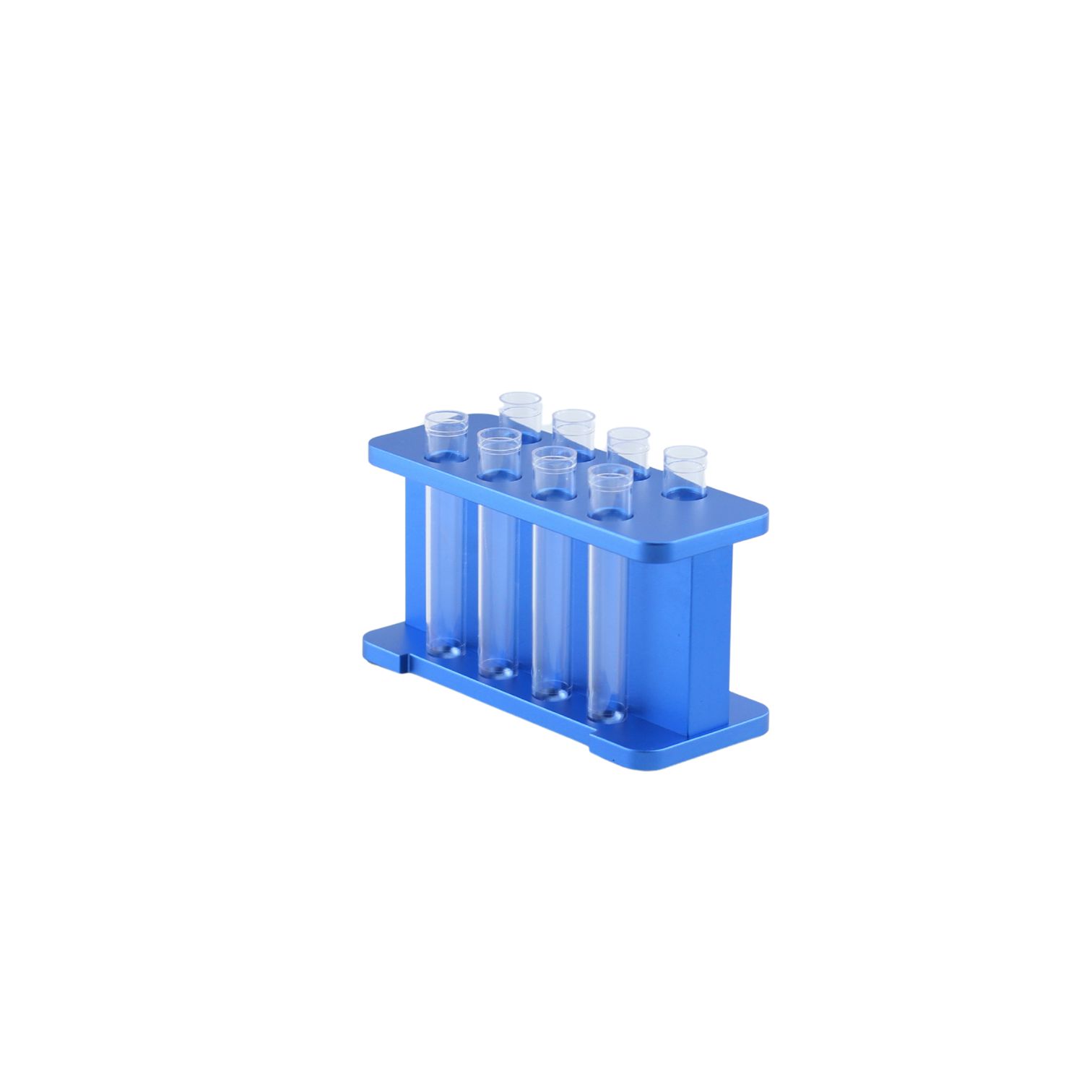

1. For 5 ml flow cytometry tubes; up to eight 5 ml flow cytometry tubes can be placed at a time.

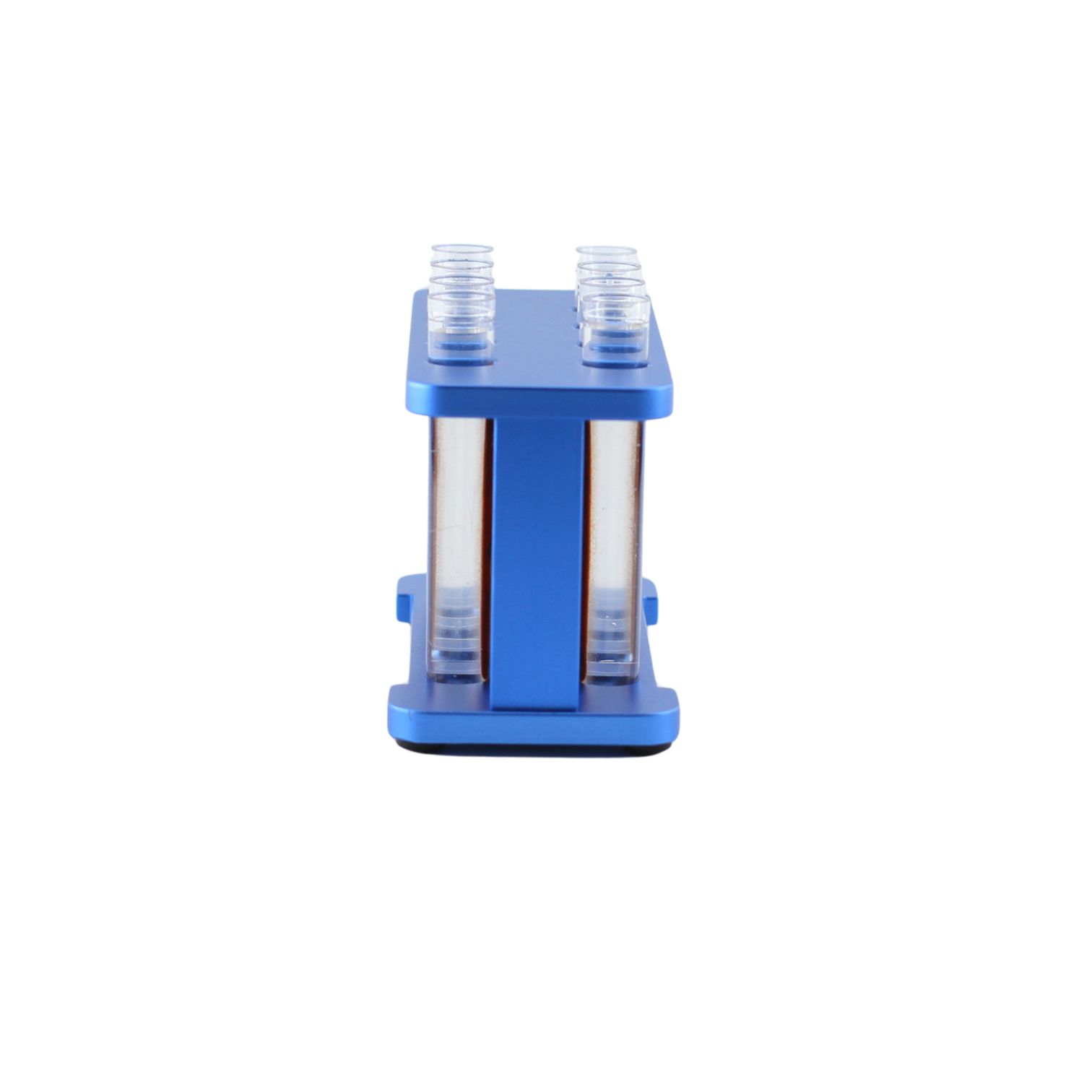

2. Magnetic bead attraction:

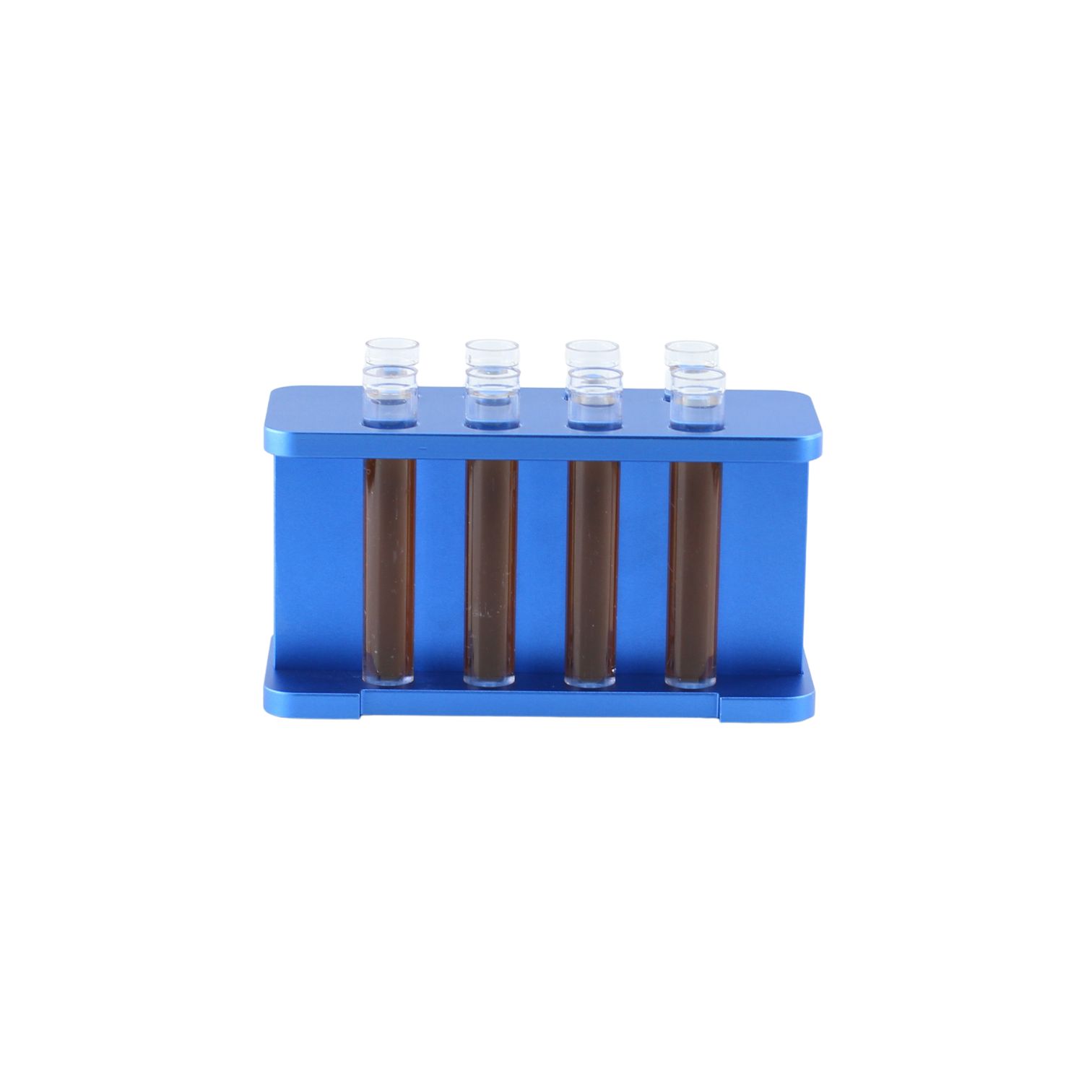

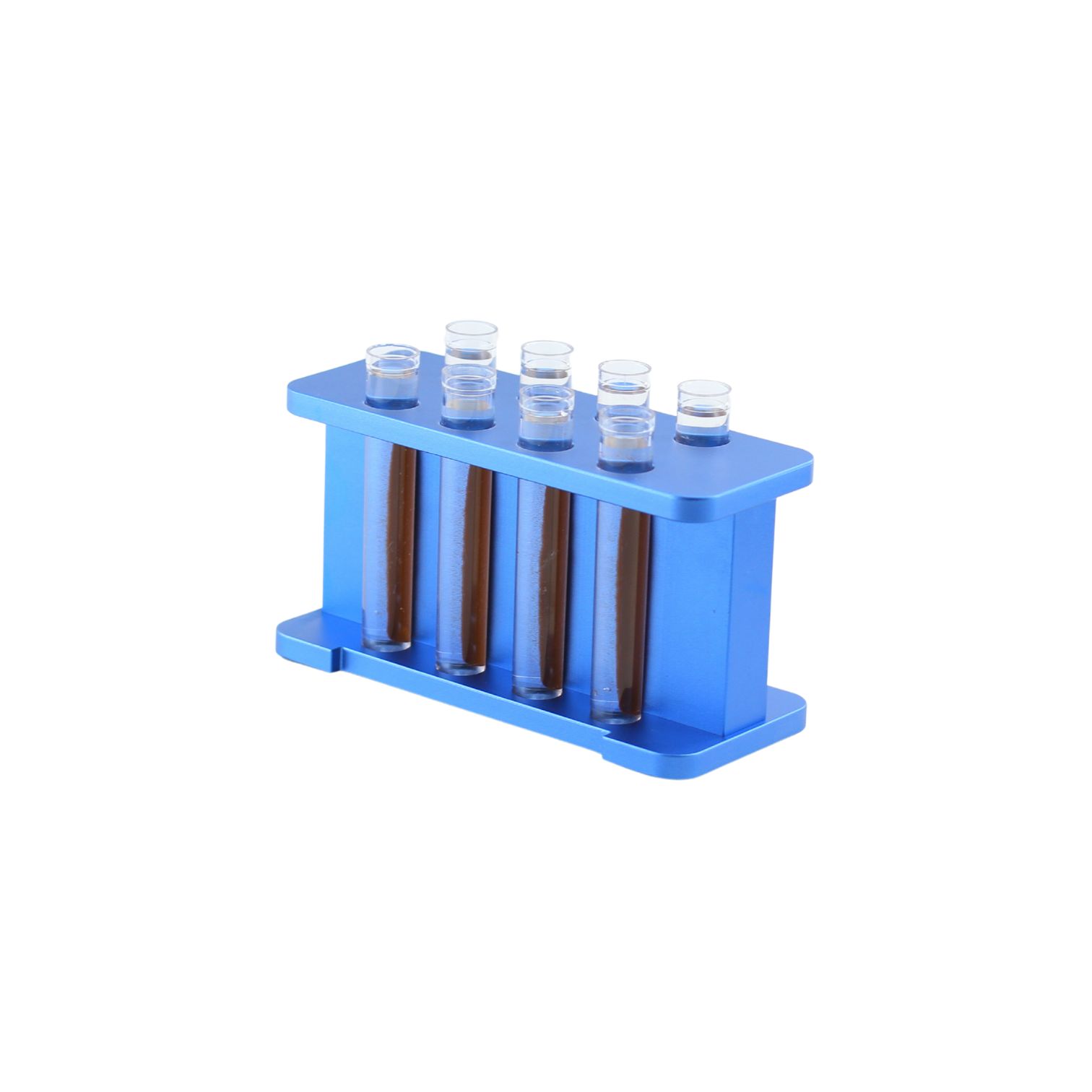

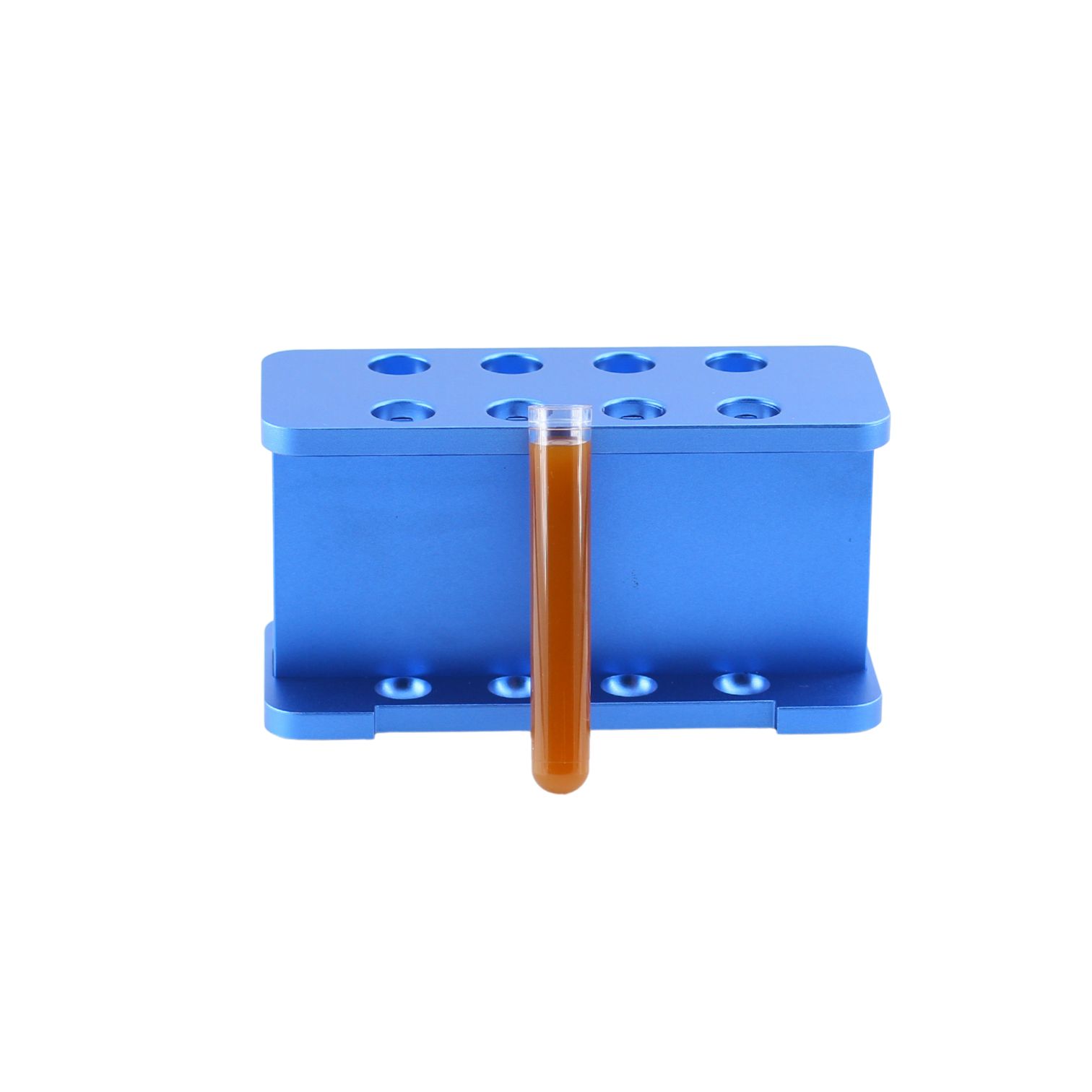

- Before attraction

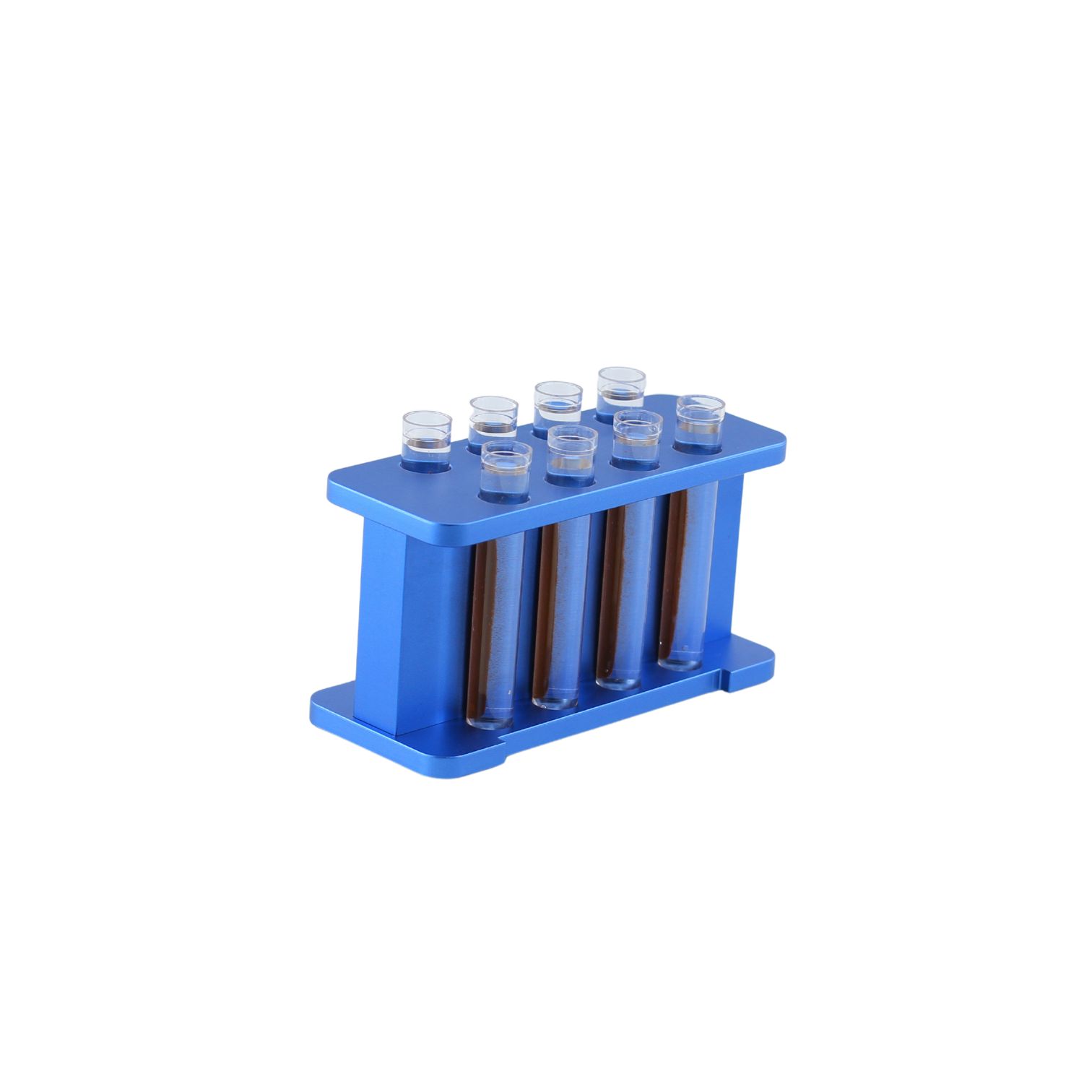

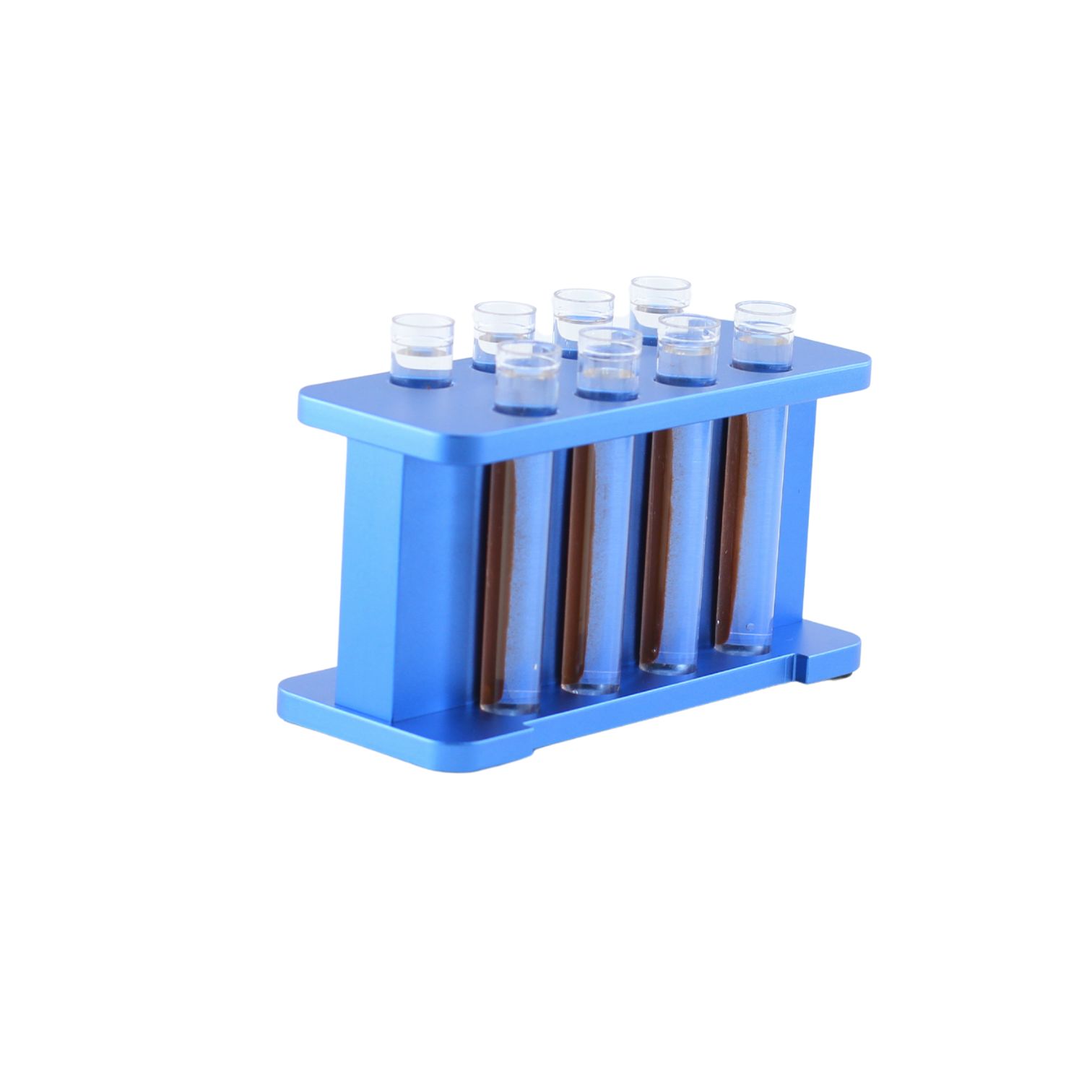

- After attraction
