Product Introduction:

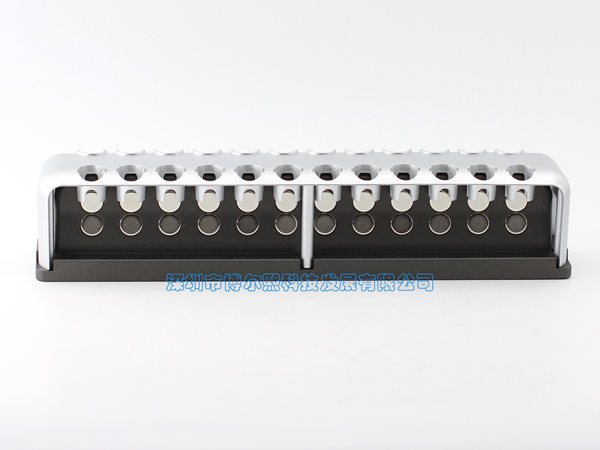

Shenzhen BORHEE Technology Development Co., Ltd. has launched a 24 hole magnetic separation rack, which can efficiently separate various types of magnetic beads. By placing 1.5ml or 2.0ml centrifuge tubes on the magnetic rack, the magnetic separation process can be completed in an average of 30 seconds, achieving the goal of rapid separation and purification of substances such as cells, proteins, or nucleic acids. The centrifuge tube of the 24 hole magnetic frame can be tightly attached to the magnetic frame, making your separation process intuitive and convenient. The magnetic bracket is detachable and separable, making it more convenient to operate the separation of magnetic beads, avoiding the repeated steps of pulling and inserting tubes, and saving experimental operation time.

Technical parameters:

Specification (mm): 260 × 50 × 50

Aperture: 10.7mm, suitable for 1.5ml or 2.0ml centrifuge tubes

Optimal working volume: 1-2000ul

Recommended centrifuge tube brands: Axygen or Corning centrifuge tubes and various types of centrifuge tubes

Usage method:

1. Place the centrifuge tube containing the mixture of magnetic beads to be separated and the target substance on the magnetic rack.

2. ｉｎｓｅｒｔ and fix the upper plate loaded with centrifuge tubes onto the magnet holder, and let it rest for 30 seconds until all the magnetic beads are attracted to the centrifuge tube wall.

3. The liquid can be poured directly or aspirated using a pipette.

4. The upper plate loaded with centrifuge tubes can be directly used to mix and oscillate on the shaking mixer, and then inserted and fixed on the magnet frame to complete the magnetic separation operation.

Application features:

1. A small-scale specialized magnetic separation tool designed for biological experiments, suitable for antibody purification, immunoprecipitation, immunoprecipitation, cell sorting, nucleic acid separation, and other operations.

2. Reasonable design and convenient operation. High magnetic field strength, fast separation. The average magnetic separation time is 30 seconds, and the separation process is fast and efficient.

3. Compact, lightweight, and durable. The unique material makes the magnetic frame lightweight yet durable.

Application image:

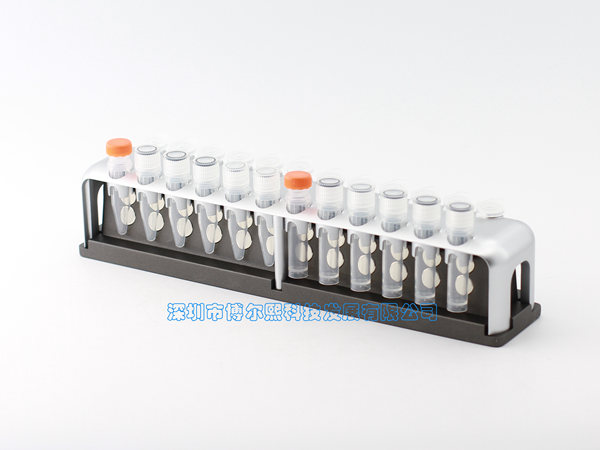

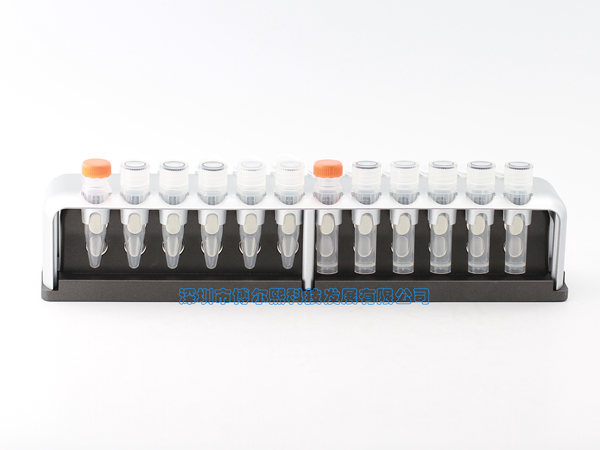

1. Can be used for 1.5ml centrifuge tubes and 2.0ml centrifuge tubes

2. The upper board and magnetic bracket are easy to plug and unplug, and are very stable and can be pressed

3. After inserting and fixing the upper plate loaded with centrifuge tubes onto the magnet frame, it is easy to separate the magnetic beads, which facilitates the magnetic adsorption operation of the magnet frame without repeatedly plugging and unplugging the centrifuge tubes

4. Before magnetic bead adsorption

5. After magnetic bead adsorption

6. After magnetic bead adsorption, the Borxi waste liquid collection artifact can be used to quickly collect the supernatant. The item number is: PUMP-1， Website: Waste liquid collection device - Shenzhen Borhee Technology Development Co., Ltd. (www.borhee.com)
