16-Hole Magnetic Separators
Location： Home > PRODUCT > Magnetic Separator for Tubes and Vials > 16-Hole Magnetic Separators
Models：MAG-16-2-S
Time：2026-08-29
Applicable Consumables：0.5ml / 0.6ml centrifuge tubes
Visits：
Service hotline
+86 18938927592
NEWS
Product Introduction:
The 16-hole magnetic separation rack (Magnetic Separation Rack) launched by Shenzhen BORHEE Technology Development Co., Ltd. achieves highly efficient separation of all types of magnetic beads. Place 0.5ml or 0.6ml centrifuge tubes on the rack and the magnetic separation process is completed in just 30 seconds on average, enabling rapid separation and purification of cells, proteins, nucleic acids and other substances. The tubes of the 16-hole rack fit the rack exactly, keeping your separation process intuitive and convenient. This improved model features highly adaptable sleeves and can be used for centrifuge tubes with a diameter of 7.6-8.1 mm.
Technical Parameters:
Specification (mm): 170 × 58 × 36
Hole diameter: 7.6 ~ 8.1 mm, for 0.5ml or 0.6ml centrifuge tubes
Optimal working volume: 2-600 µL
Recommended tube brands: Axygen or Corning centrifuge tubes.
Operation:
1. Place the centrifuge tube containing the incubated mixture of magnetic beads and target substance on the magnetic rack.
2. Wait 30 seconds until the beads are attracted to the tube wall.
3. Carefully pour off the liquid, or aspirate it with a pipette.
4. Remove the centrifuge tubes from the rack and return them to a standard tube holder, completing the magnetic separation.
Application Features:
1. A small-scale dedicated magnetic separation tool designed for biological experiments; suitable for sequencing, library preparation, antibody purification, immunoprecipitation, co-immunoprecipitation, cell sorting, nucleic acid separation and other applications.
2. Well-designed and easy to operate. High magnetic field strength and rapid separation. Average magnetic separation time is 30 seconds - fast and efficient.
3. Compact, lightweight and durable. The unique material makes the rack light yet long-lasting.
Application Images:

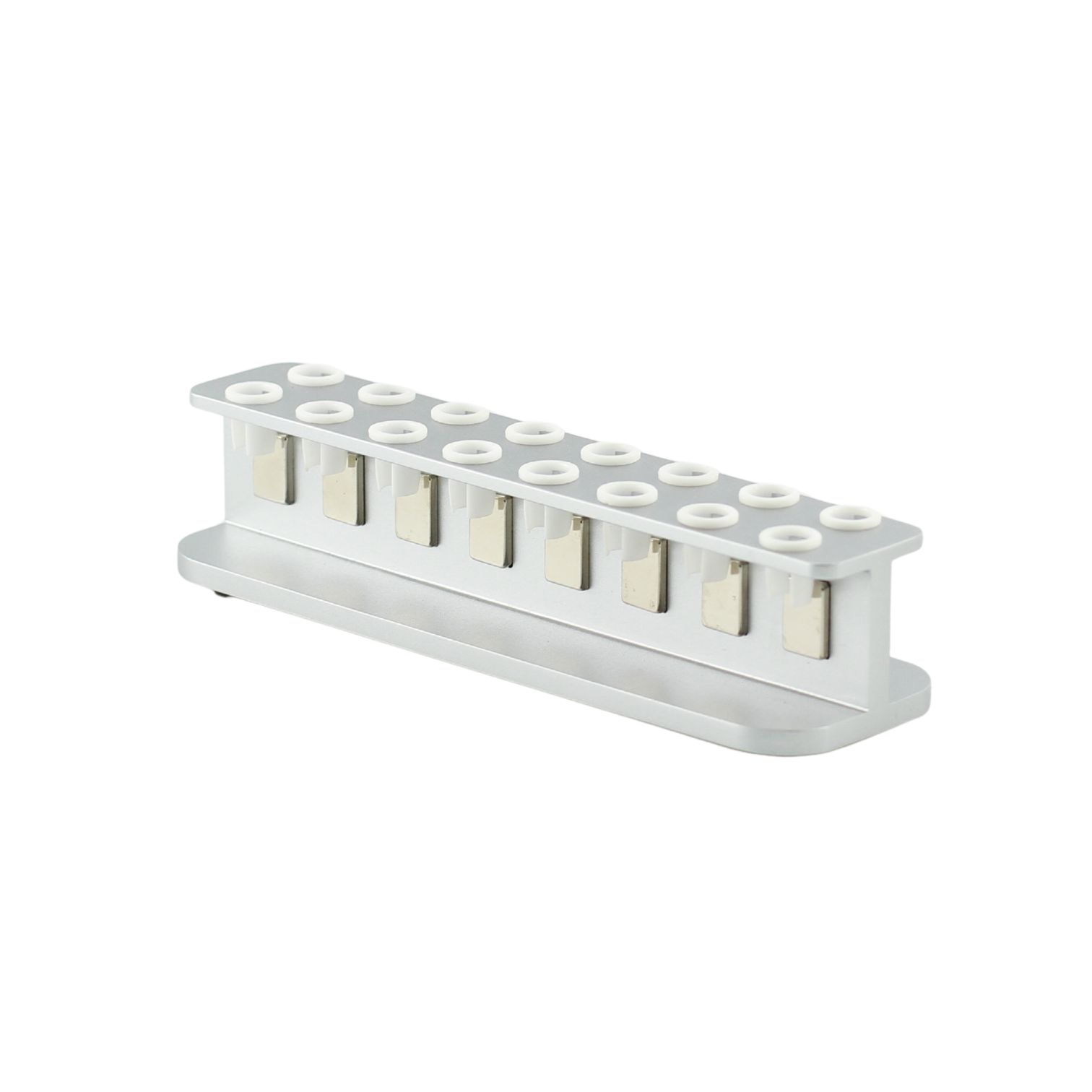

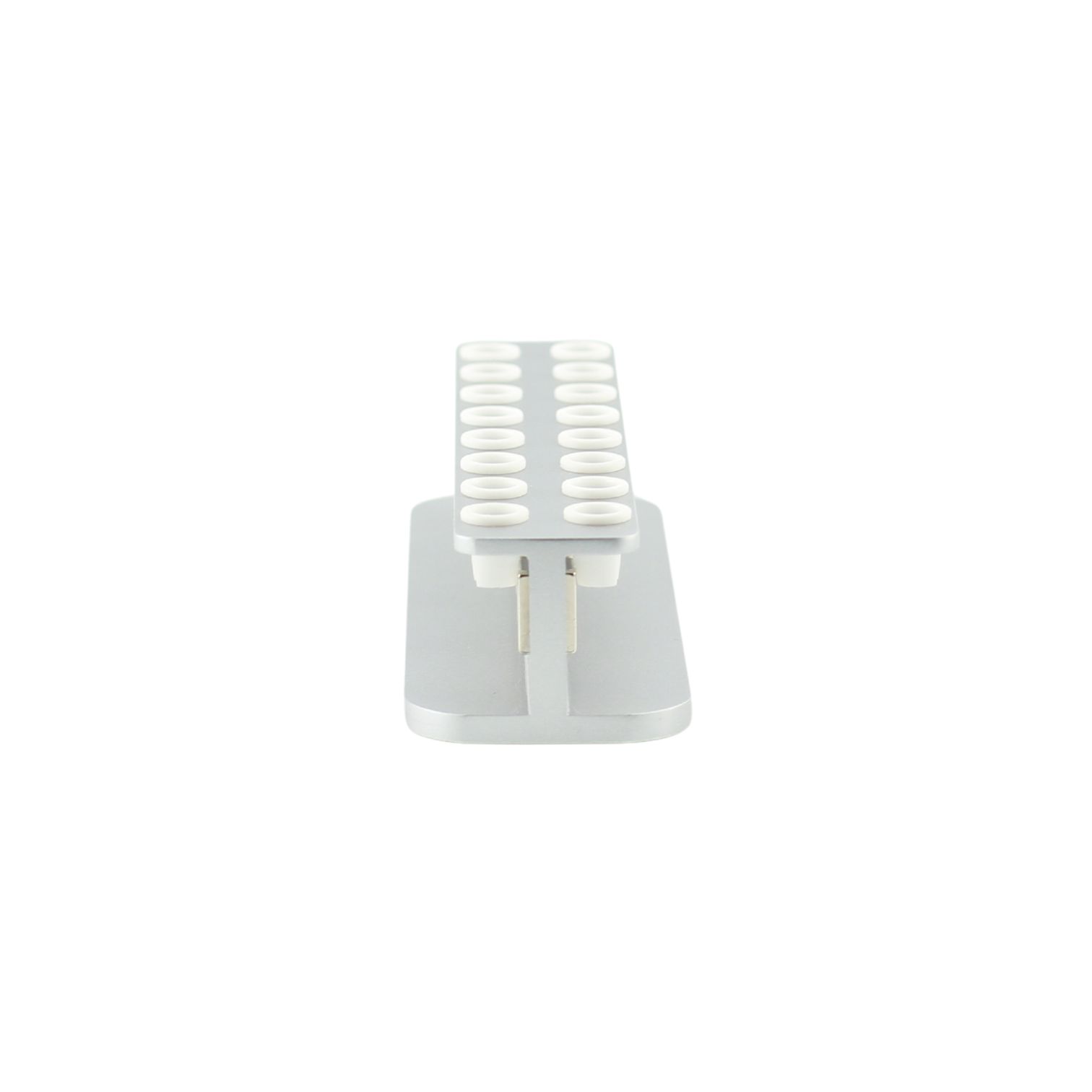

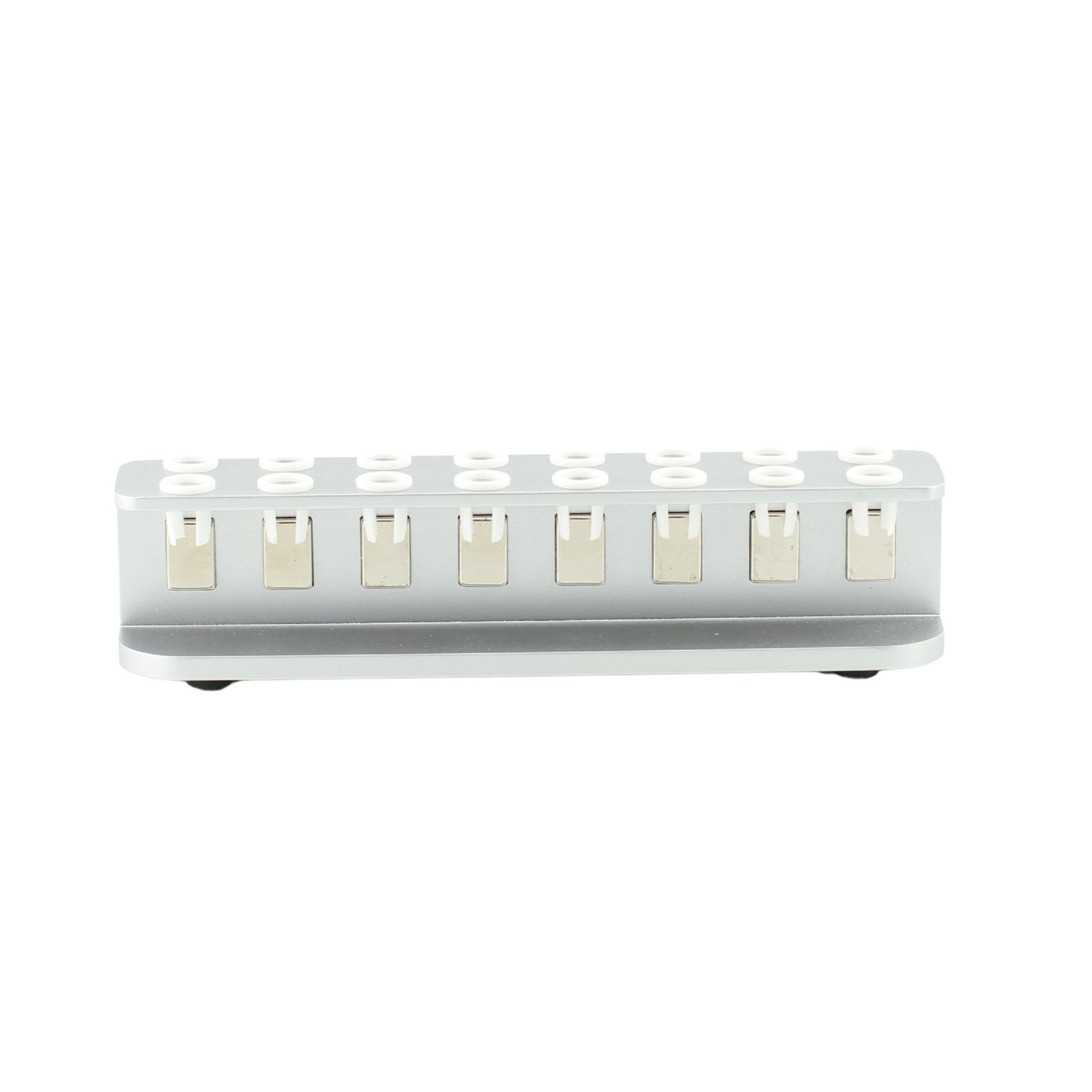

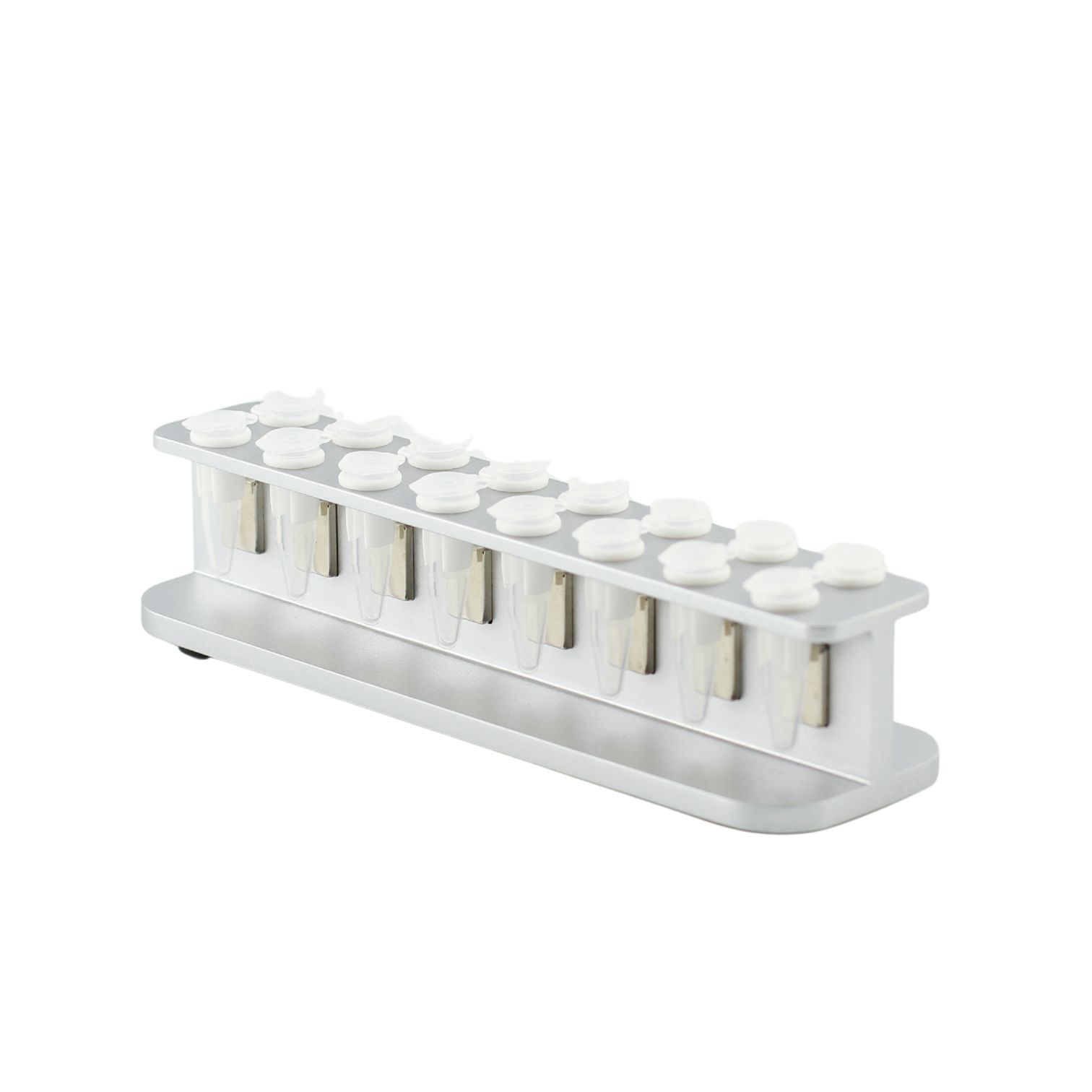

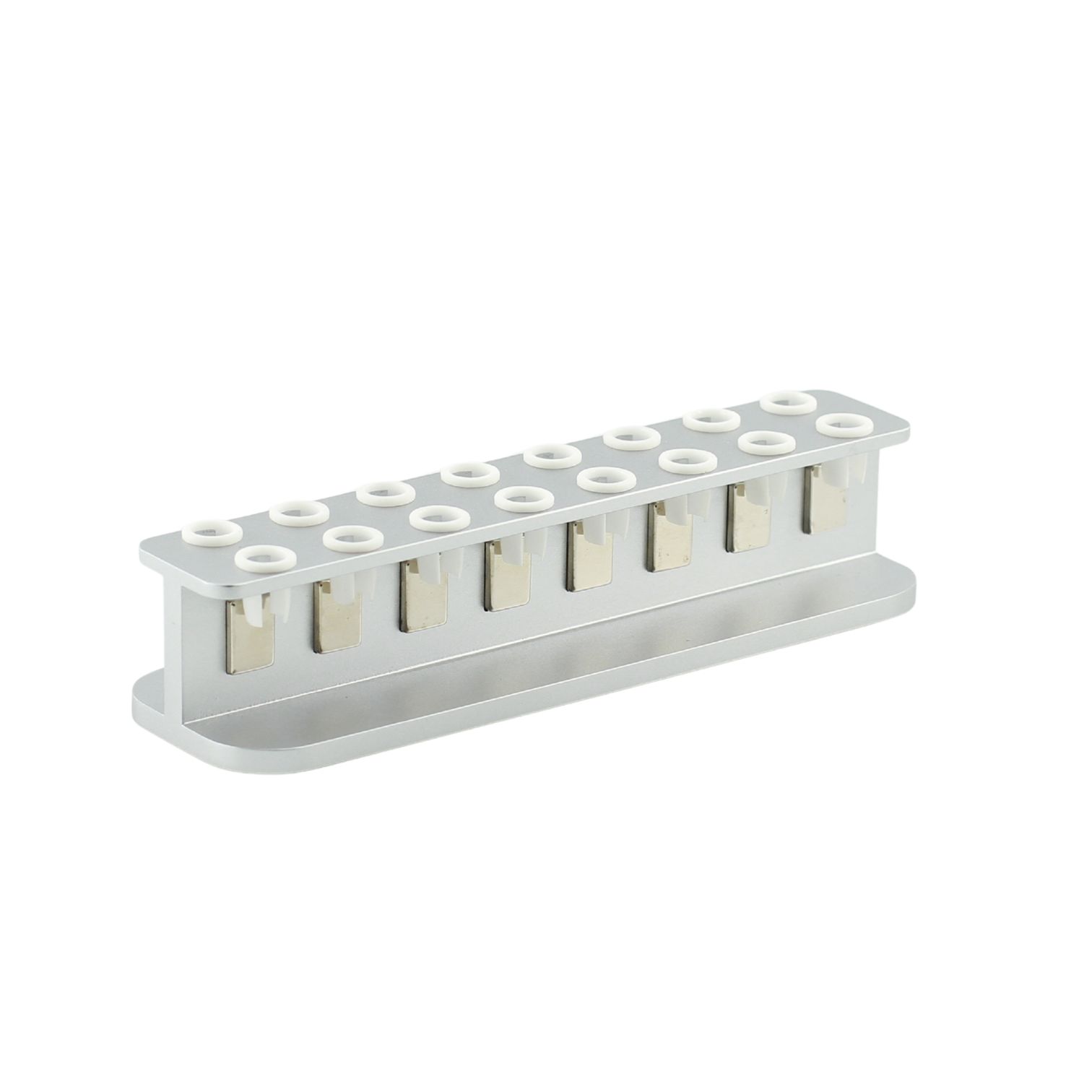

1. 16-hole magnetic rack

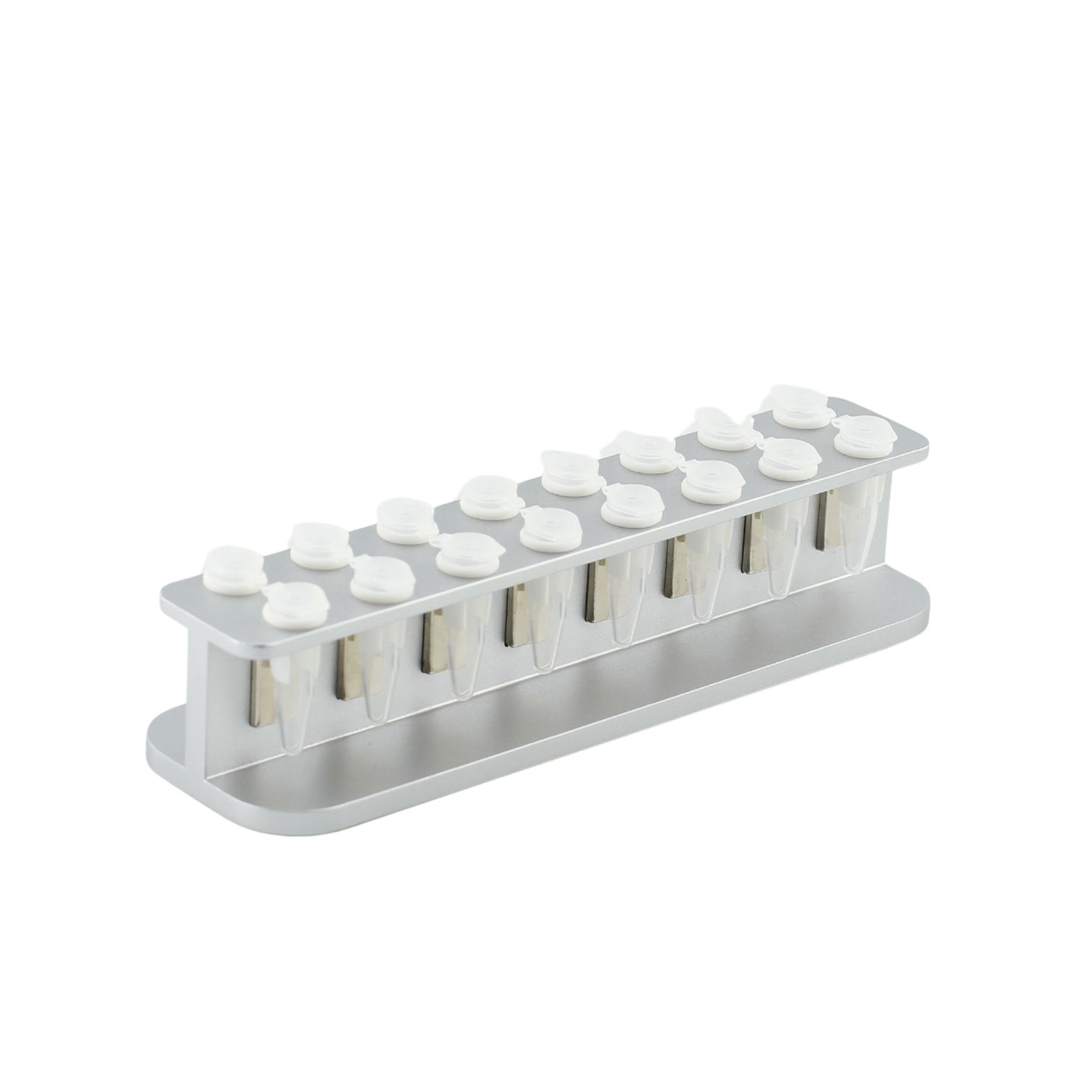

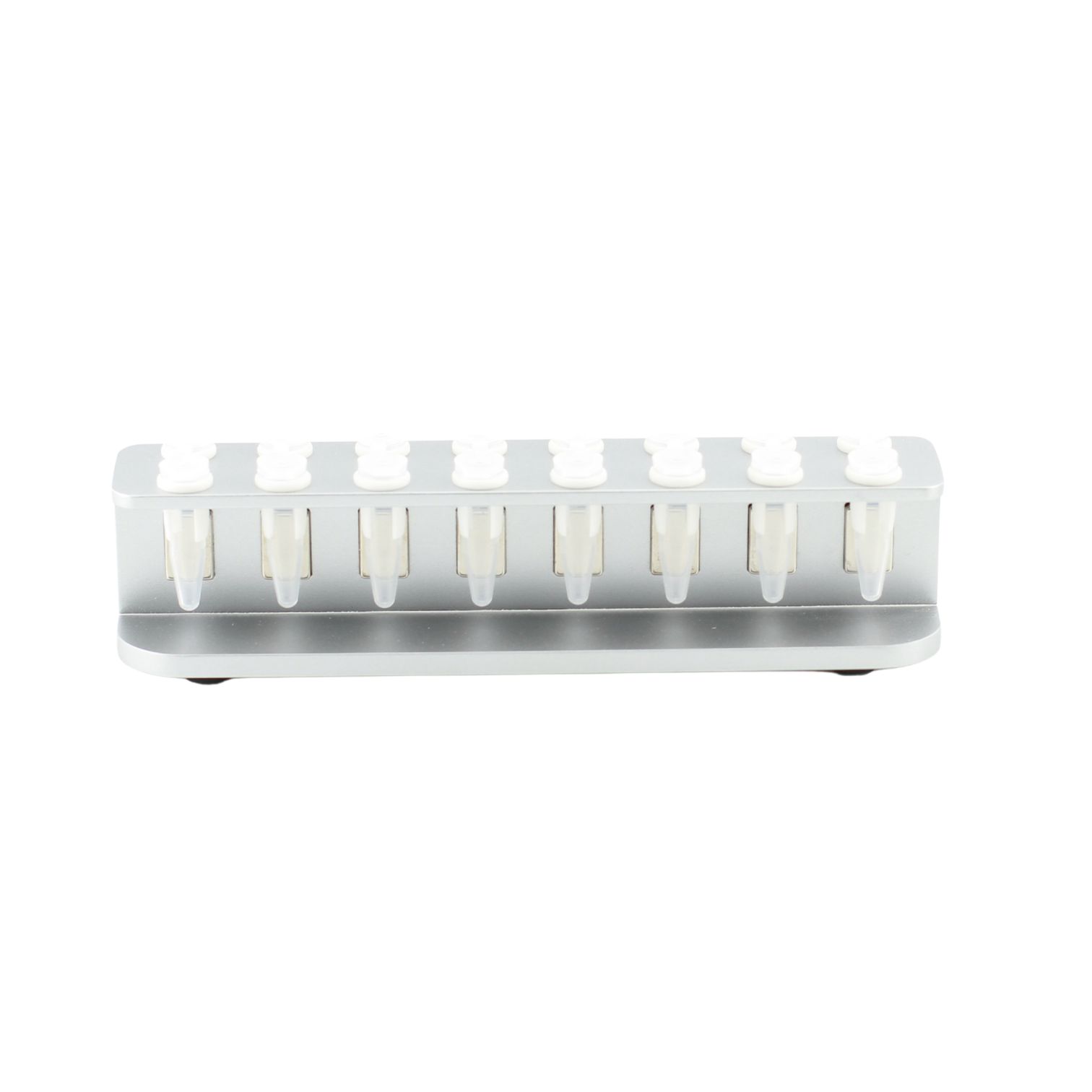

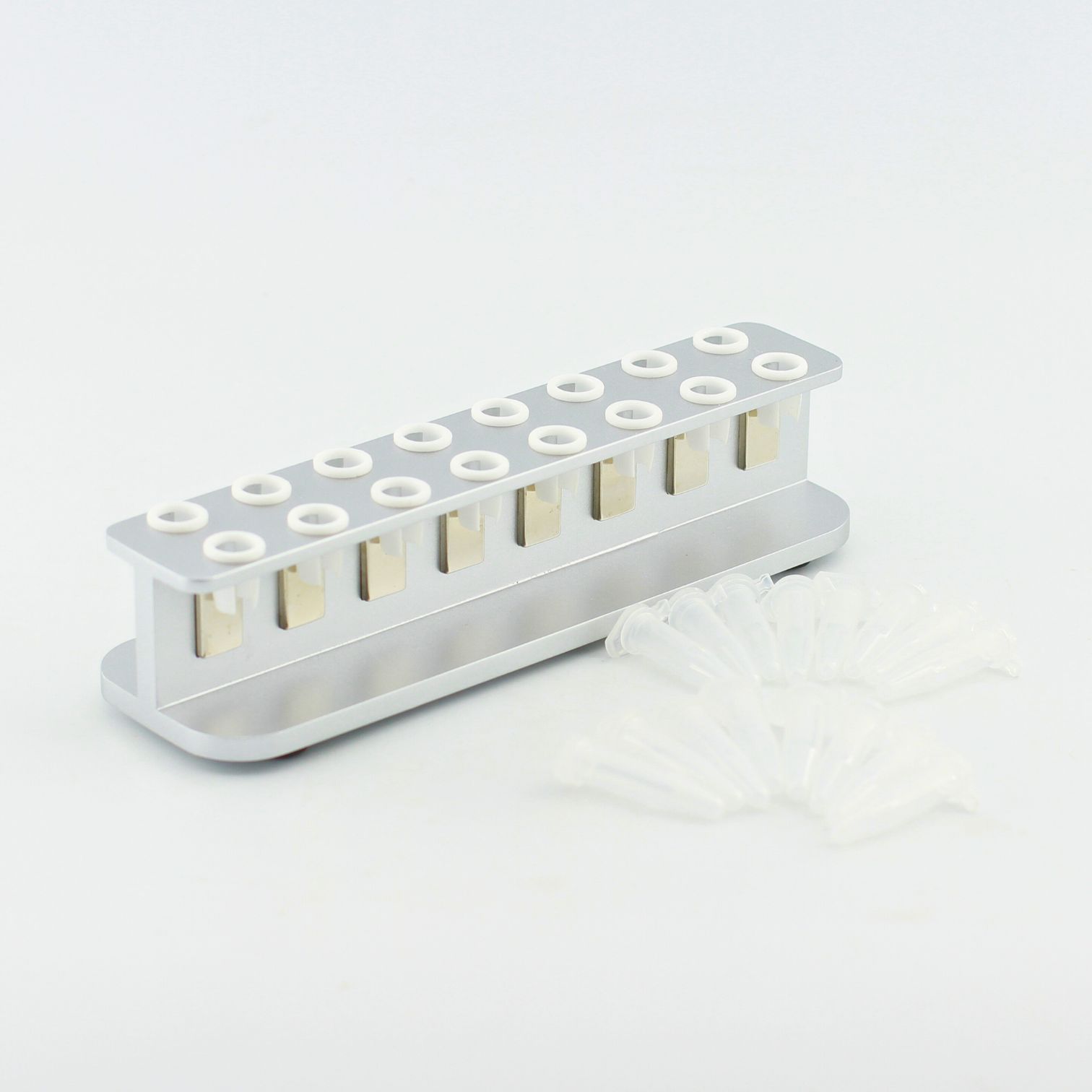

2. For 0.5ml or 0.6ml centrifuge tubes; the tubes sit close to the magnets for higher magnetic force.

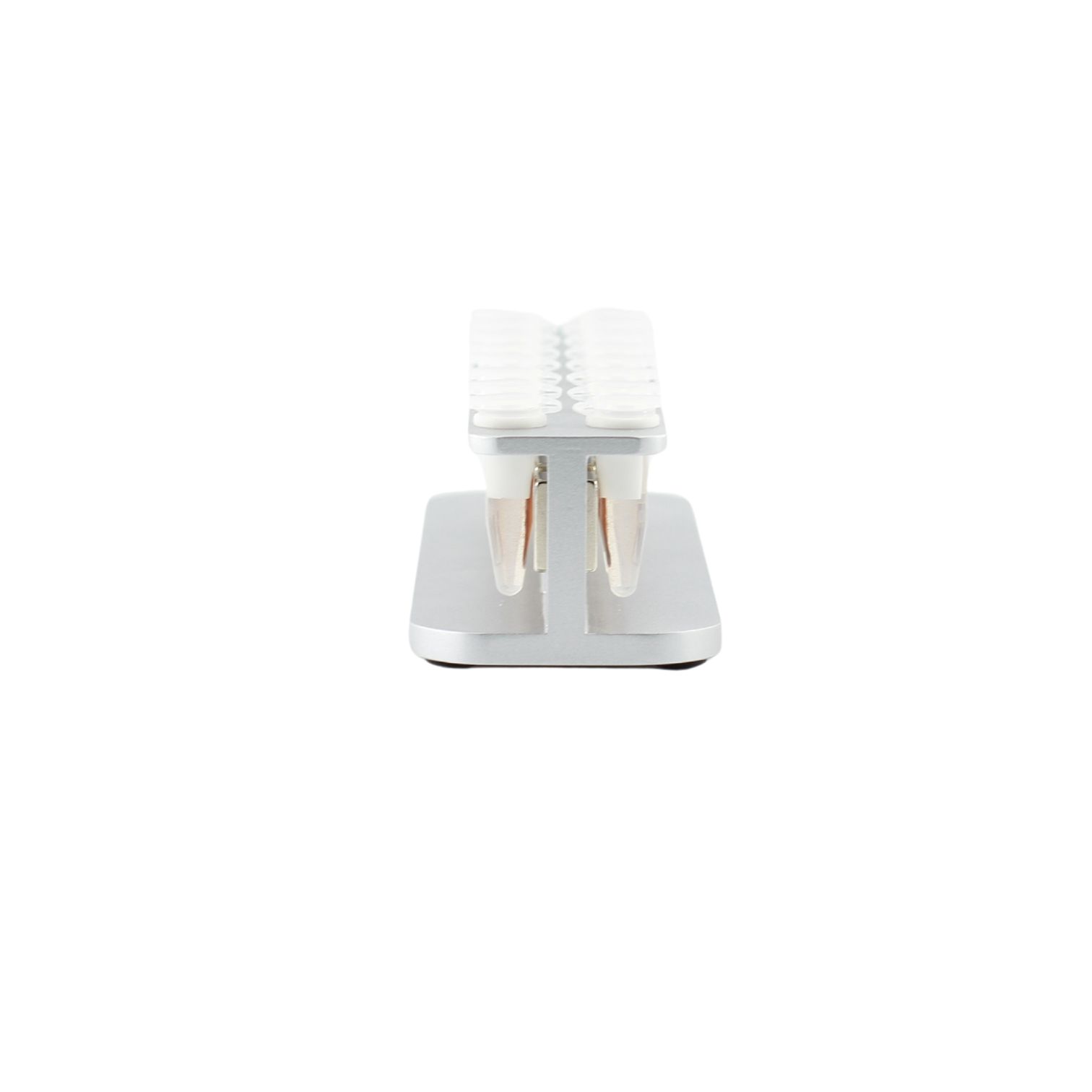

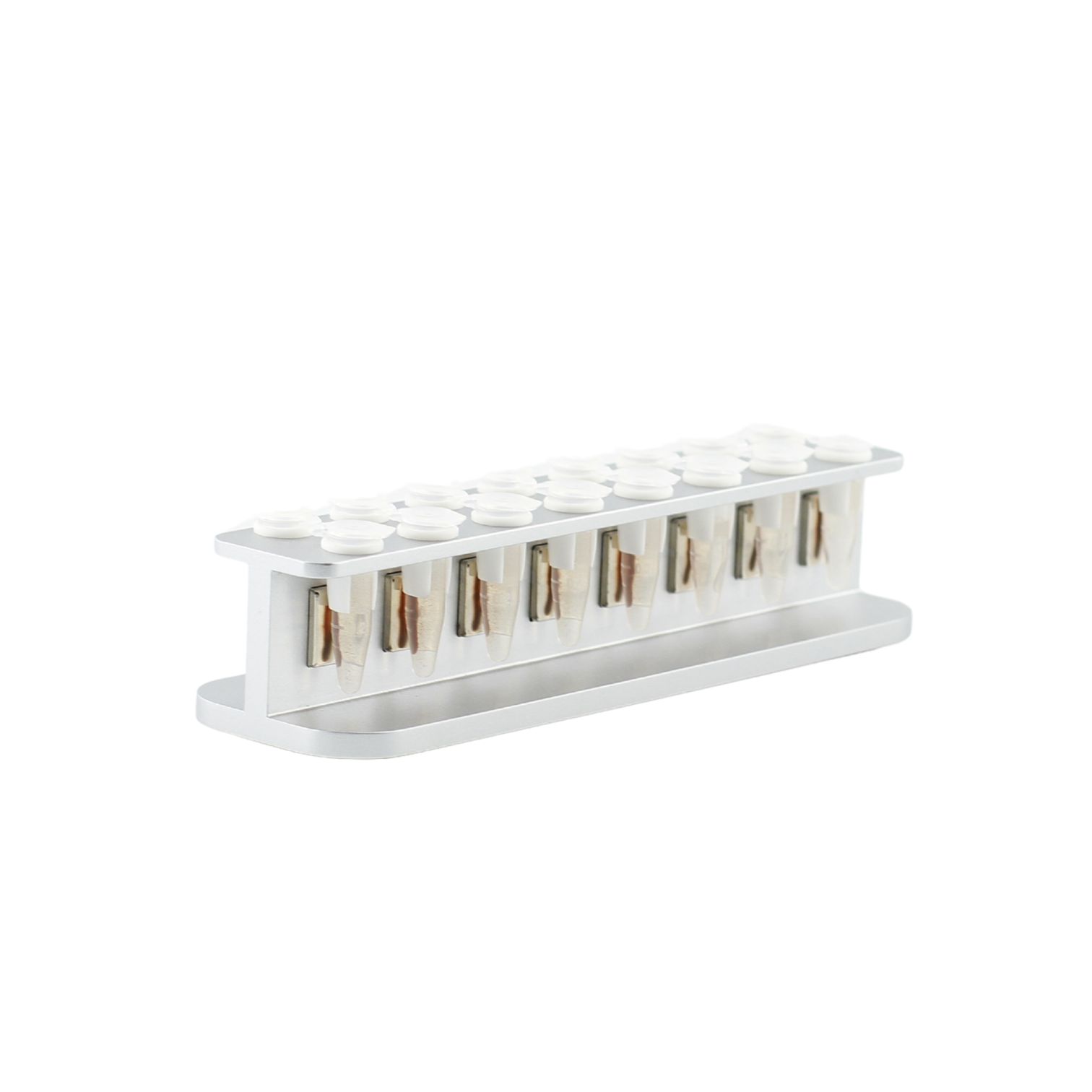

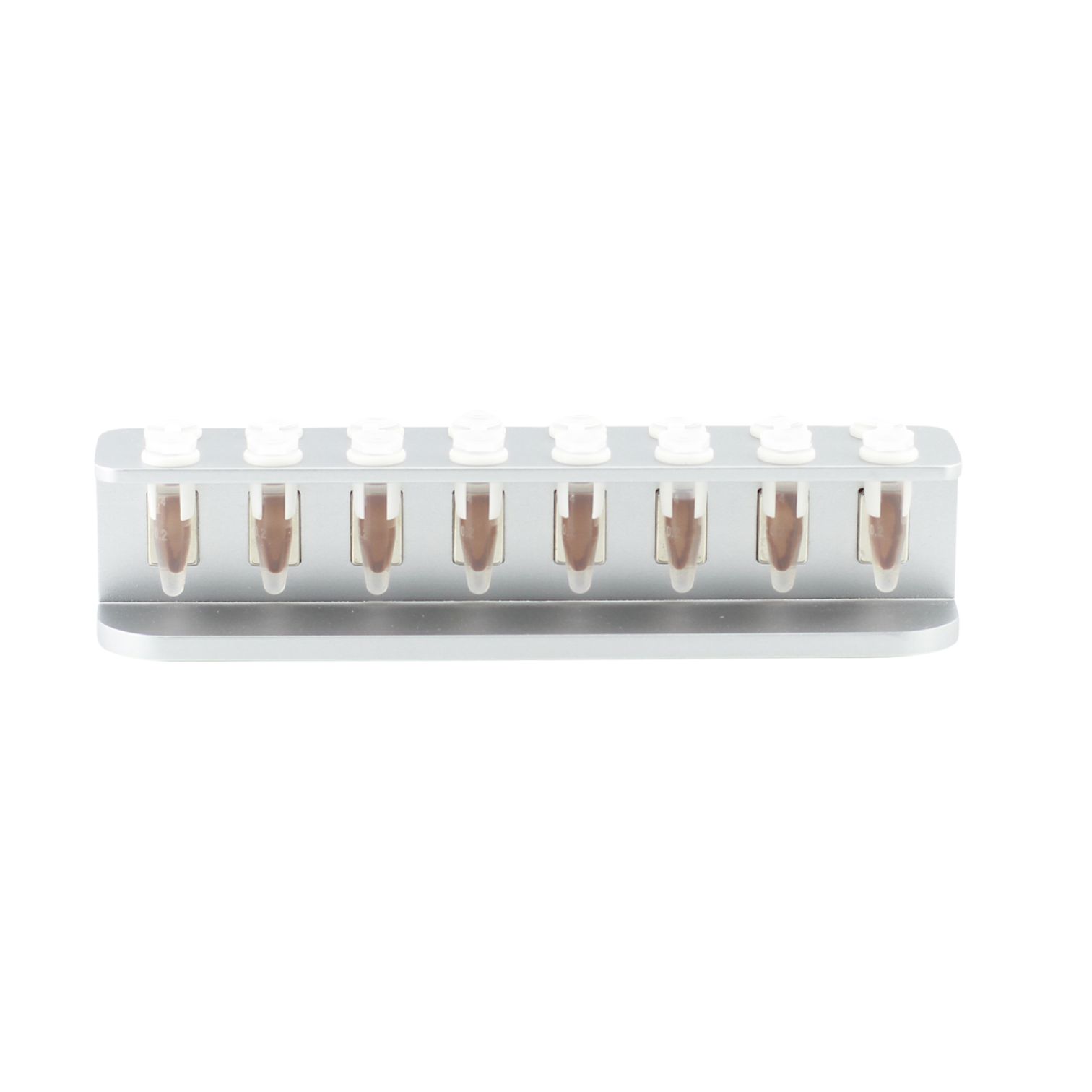

3. Magnetic bead attraction:

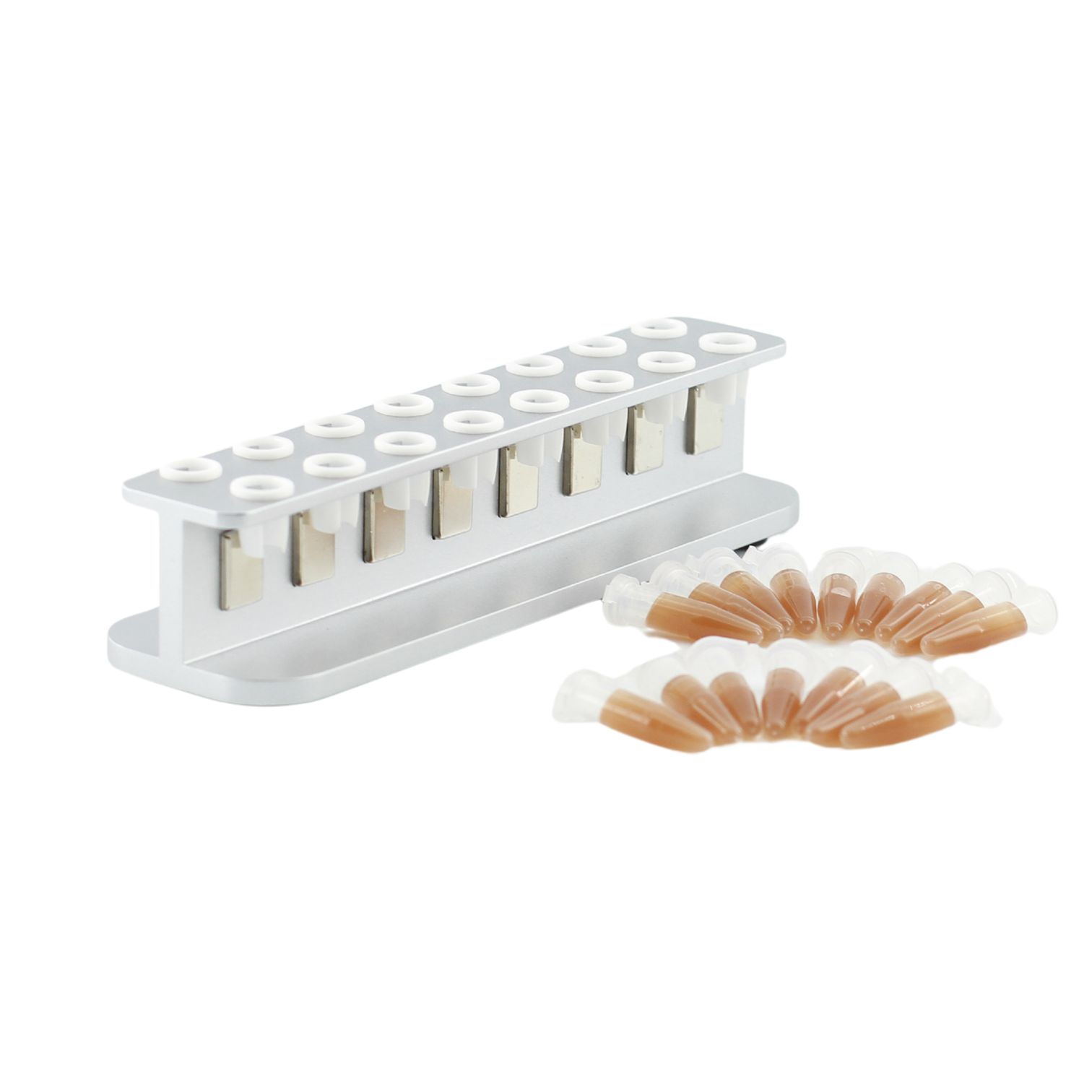

Before attraction -
After attraction -
