Product Introduction:

Shenzhen BORHEE Technology Development Co., Ltd. has launched a 12 hole magnetic separation rack, which can efficiently separate various types of magnetic beads. By placing 1.5ml or 2.0ml centrifuge tubes on the magnetic rack, the magnetic separation process can be completed in an average of 30 seconds, achieving the goal of rapid separation and purification of substances such as cells, proteins, or nucleic acids. The centrifugal tube of the 12 hole magnetic seperator can tightly adhere to the magnetic seperator, making your separation process intuitive and convenient.

Technical parameters:

Specification (mm): 150 × 50 × 50

Aperture: 10.7 mm, suitable for 1.5ml or 2.0ml centrifuge tubes

Optimal working volume: 10-2000ul

Recommended centrifuge tube brands: Axygen or Corning centrifuge tubes, or most domestically produced centrifuge tubes.

Usage method:

1. Place the centrifuge tube containing the mixture of magnetic beads to be separated and the target substance on the magnetic rack.

2. Keep still for 30 seconds until all the magnetic beads are drawn to the centrifuge tube wall.

3. Carefully pour out the liquid or use a pipette to aspirate the liquid.

4. Remove the centrifuge tube from the magnetic rack and place it back on the regular centrifuge tube rack to complete the magnetic separation operation.

Application features:

1. A small-scale specialized magnetic separation tool designed for biological experiments, suitable for sequencing, antibody purification, immunoprecipitation, immunoprecipitation, cell sorting, nucleic acid separation and other operations.

2. Reasonable design and convenient operation. High magnetic field strength, fast separation. The average magnetic separation time is 30 seconds, and the separation process is fast and efficient.

3. Compact, lightweight, and durable. The unique material makes the magnetic frame lightweight yet durable.

Application image:

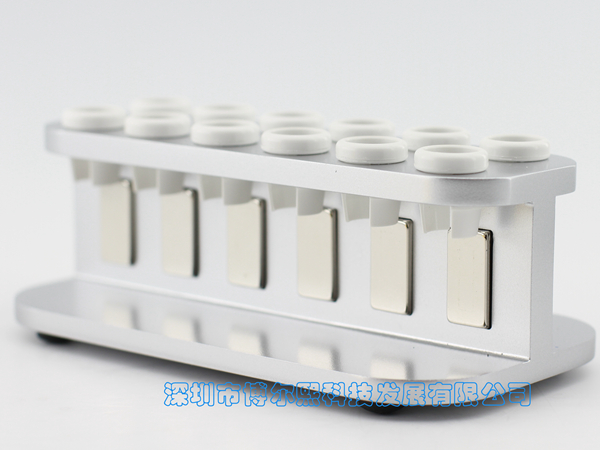

1. Newly improved 12 hole magnetic bracket makes it easier to fix the centrifuge tube

2. Can be used for 1.5ml centrifuge tubes or 2.0ml centrifuge tubes

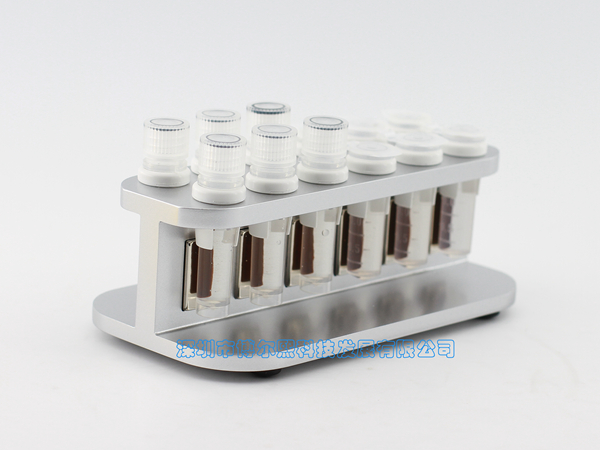

3. Can hold 12 1.5ml or 2.0ml centrifuge tubes at once

4. Close to the centrifuge tube, with higher magnetic properties

5. Magnetic bead adsorption situation

-Before magnetic bead adsorption

-1000ul magnetic bead mixture adsorption

-60ul eluent adsorption, the position of the magnet can better adsorb the magnetic beads on the liquid surface, making it easier for the operator to absorb and clean the eluent
