500ml Magnetic Rack 【MAG-500-3】

Products：

Product Introduction:Shenzhen BORHEE Technology Development Co., Ltd. has launch

Models：MAG-500-3

Time：2026-09-09

Applicable Consumables：Shuniu 500 ml reagent glass bottles and 1000 ml PE reagent bottles

Visits：

Service hotline

+86 18938927592

Enquire Now

PRODUCT

product

NEWS

News Center

Products

Product Introduction:

Shenzhen BORHEE Technology Development Co., Ltd. has launched a magnetic rack / magnetic stand / magnetic separation rack (Magnetic Separation Rack) for Shuniu 500 ml reagent glass bottles and 1000 ml PE reagent bottles. It efficiently separates a wide range of magnetic beads: simply place the Shuniu 500 ml reagent glass bottle or the 1000 ml PE reagent bottle on the rack and magnetic separation is completed in about 1 minute on average, achieving fast separation and purification of cells, proteins or nucleic acids. Both vessels fit snugly against the rack, making the separation process intuitive and convenient.

Technical Parameters:

Dimensions (mm): 190 × 120

Bore diameter: 90.5 mm

Optimal working volume: 10 ml–500 ml / 10 ml–1000 ml

Recommended vessels: suitable for Shuniu 500 ml reagent glass bottles and 1000 ml PE reagent bottles

Operation:

1. Place the bottle containing the incubated magnetic bead–target mixture onto the magnetic rack.

2. Allow to stand for 1 minute until all magnetic beads are drawn to the wall of the bottle.

3. Carefully pour off the liquid or aspirate and discard it with a pipette.

4. Remove the bottle from the rack and return it to the bench, completing the magnetic separation procedure.

Application Features:

1. A dedicated magnetic separation tool designed for biological experiments, suitable for sequencing, antibody purification, immunoprecipitation, co-immunoprecipitation, cell sorting, nucleic acid isolation and other applications.

2. Thoughtful design for easy operation. High magnetic field strength delivers rapid separation, with an average separation time of 1 minute for a fast and efficient process.

3. Compact, lightweight and durable. The specially selected materials make the rack lightweight yet long-lasting.

Application Images:

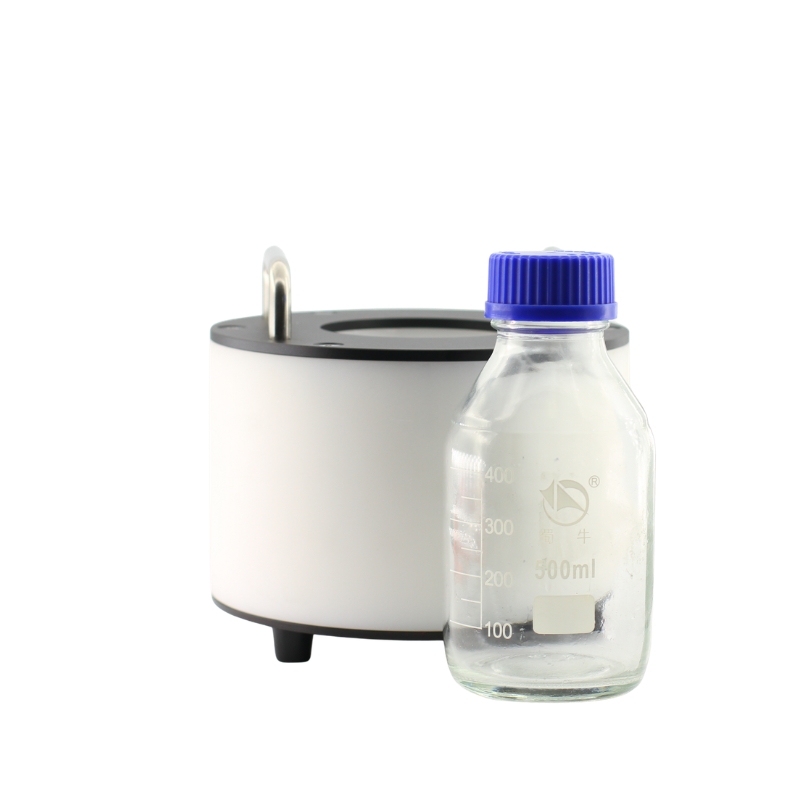

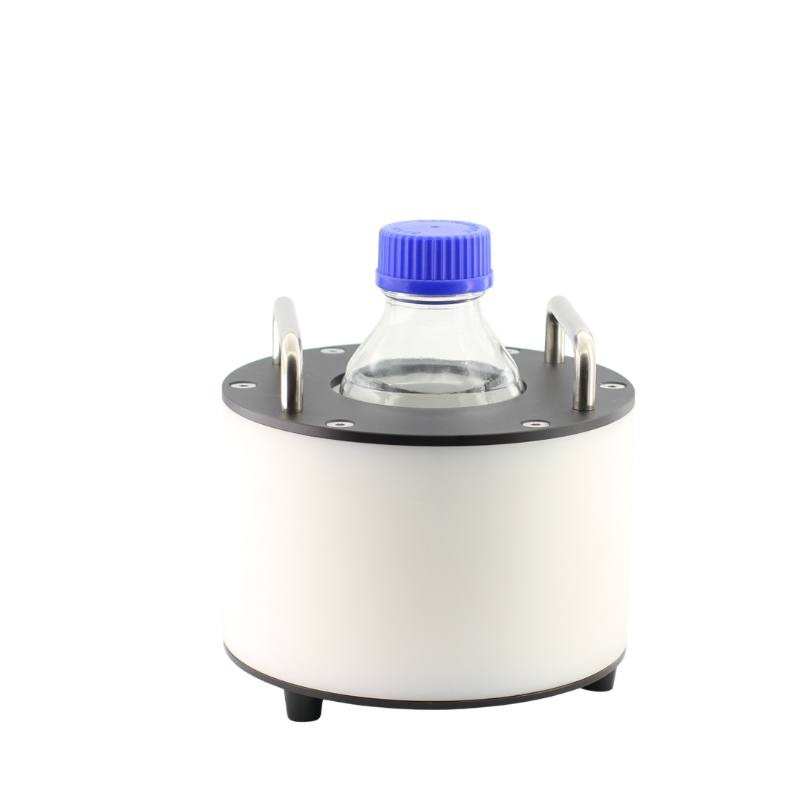

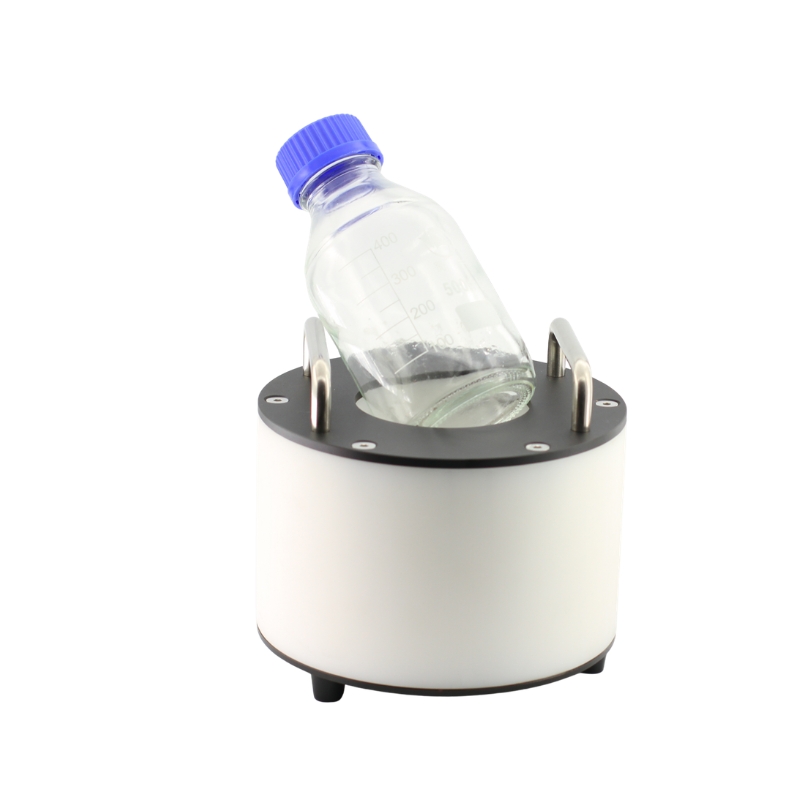

1. For Shuniu 500 ml reagent glass bottles

MAG-500-3 - 1. For Shuniu 500 ml reagent glass bottles

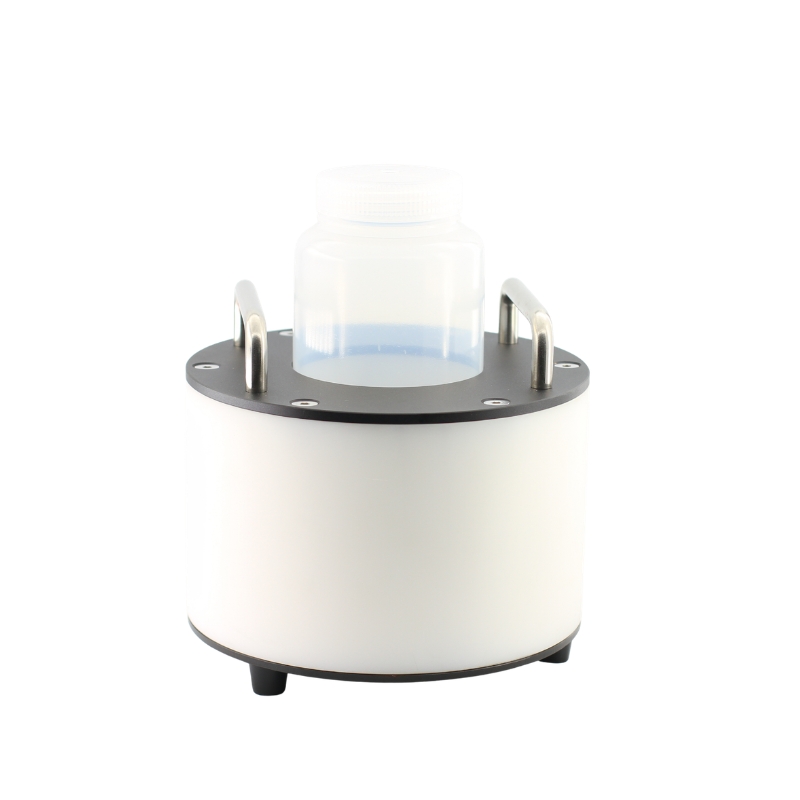

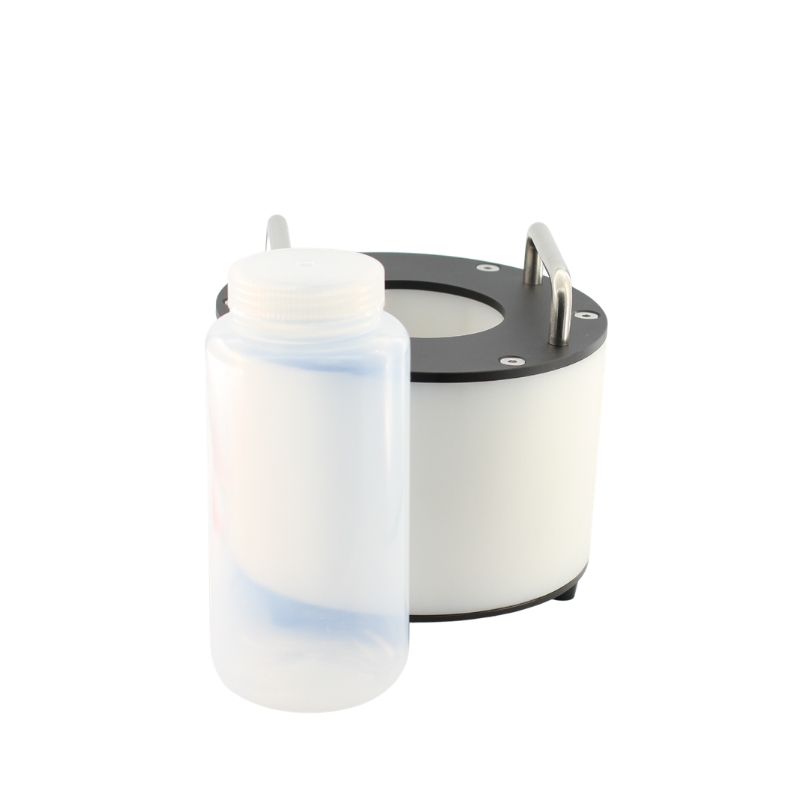

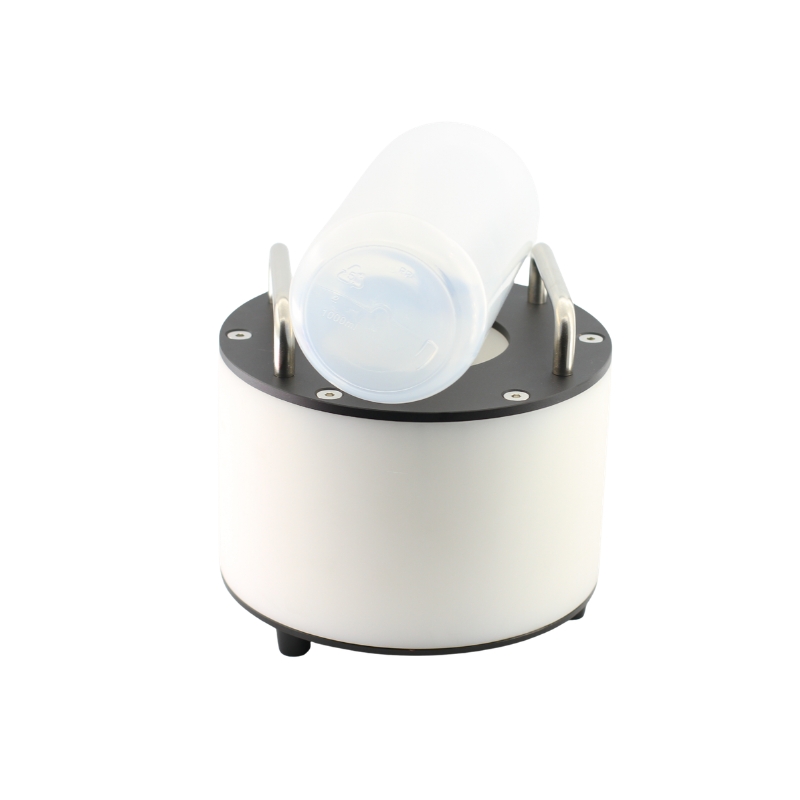

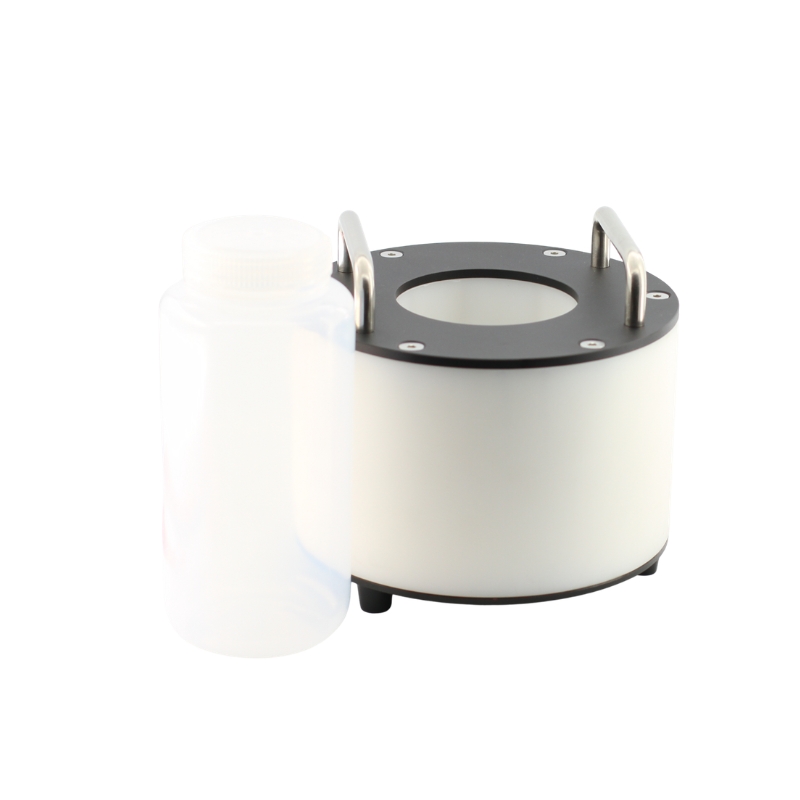

2. For 1000 ml PE reagent bottles

MAG-500-3 - 1. For Shuniu 500 ml reagent glass bottles 2. For 1000 ml PE reagent bottles

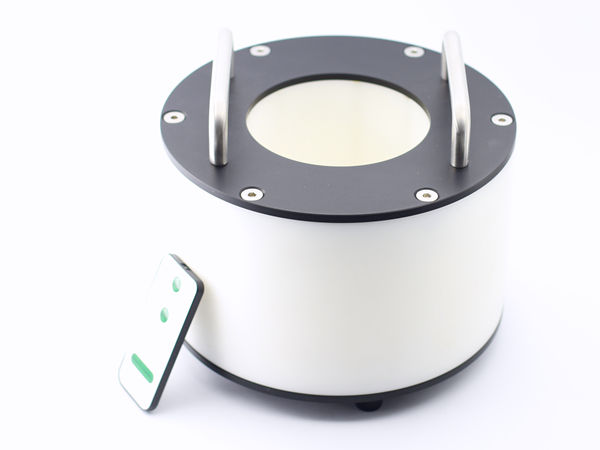

3. Optional bottom wireless remote-controlled illumination module for easy observation of magnetic bead separation

MAG-500-3 - 1. For Shuniu 500 ml reagent glass bottles 2. For 1000 ml PE reagent bottles 3.

4. Adapter sleeves of different sizes are available to fit various centrifuge tubes and reagent bottles.

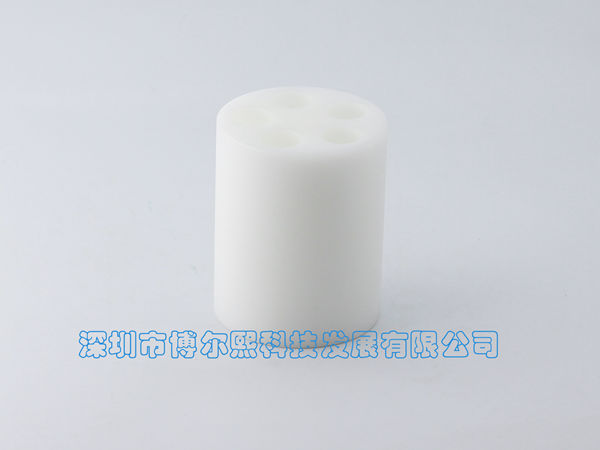

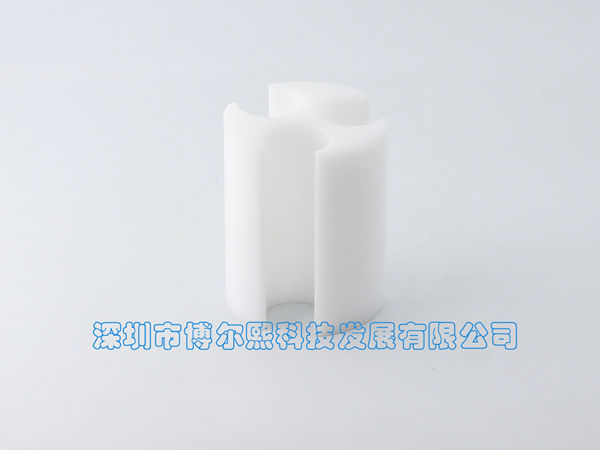

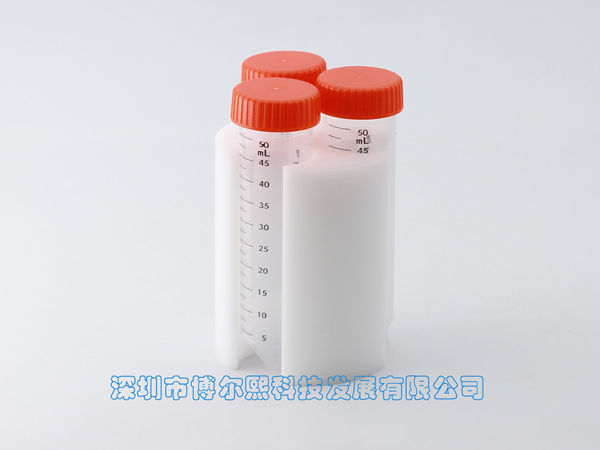

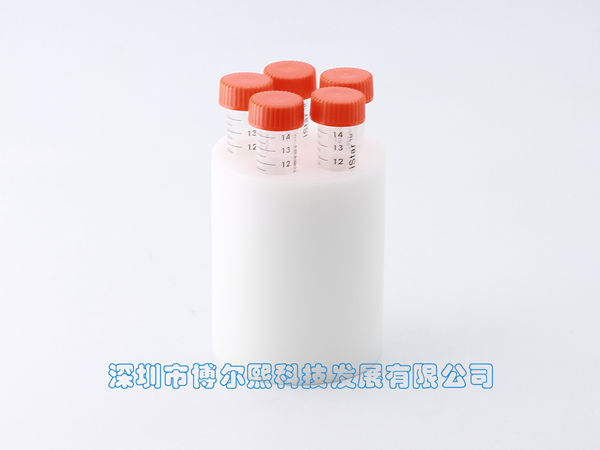

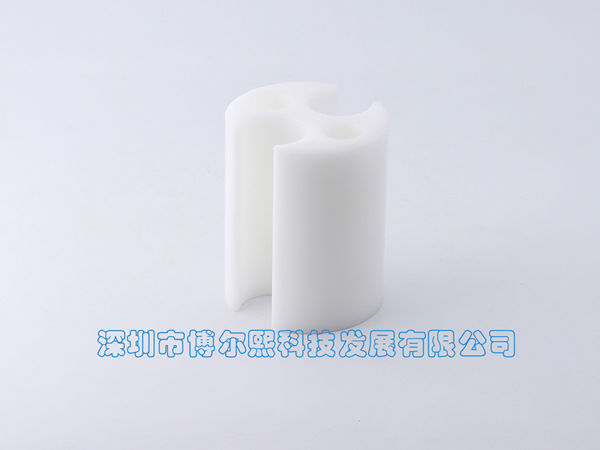

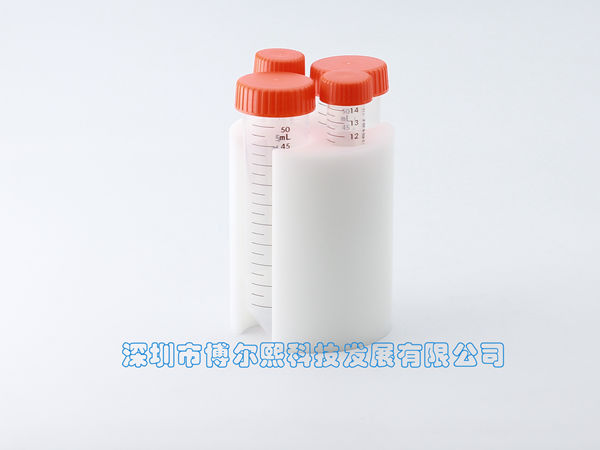

Sleeve model / bore diameter: TG-15 – 17 mm (for 15 ml centrifuge tubes); TG-50 – 29.5 mm (for 50 ml centrifuge tubes); TG-15-50 – 17/29.5 mm (for 15 ml and 50 ml centrifuge tubes); TG-250 – 73 mm (for 250 ml bottles).

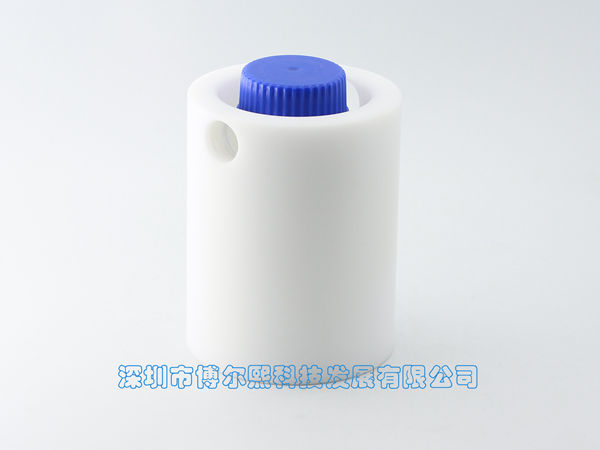

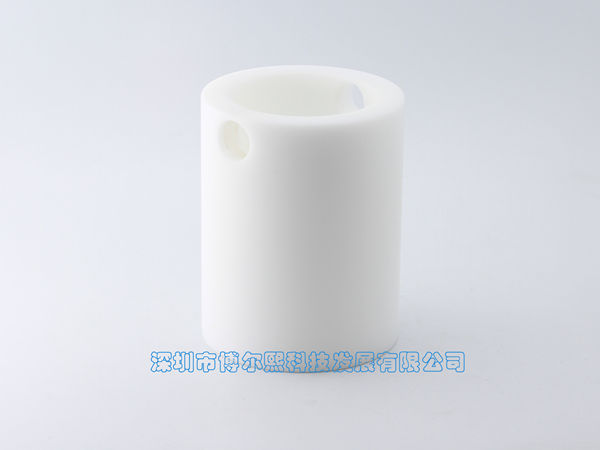

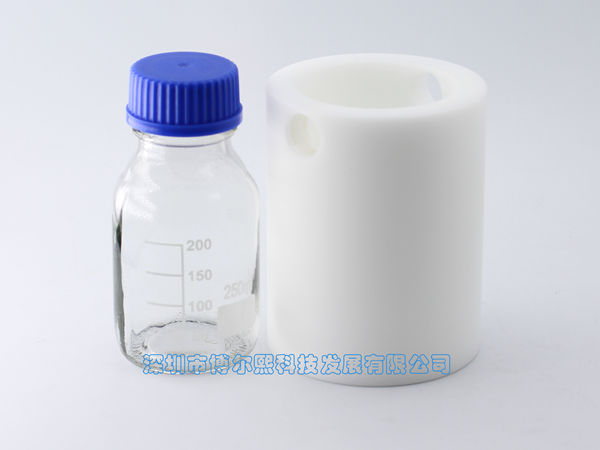

Cat. TG-250:

MAG-500-3 - TG-250:
