Large Volume Magnetic Separators
Location： Home > PRODUCT > Large Volume Magnetic Separators
Models：MAG-125-1
Time：2026-08-29
Applicable Consumables：125ml PE reagent bottles
Visits：
Service hotline
+86 18938927592
NEWS
Product Introduction:
The ultra-strong magnetic separation rack for 125ml PE reagent bottles (Magnetic Separation Rack) launched by Shenzhen BORHEE Technology Development Co., Ltd. achieves highly efficient separation of all types of magnetic beads. Place a 125ml PE reagent bottle on the rack and the magnetic separation process is completed in just 1 minute on average, enabling rapid separation and purification of cells, proteins, nucleic acids and other substances. The 125ml PE reagent bottle fits the rack exactly, keeping your separation process intuitive and convenient.
Technical Parameters:
Specification (mm): 200 × 60 × 80
Hole diameter: 51.5 mm
Optimal working volume: 1 ml-125 ml
Recommended bottles: for 125ml PE reagent bottles; suitable for bottles with a body outer diameter smaller than 51.5 mm
Operation:
1. Place the bottle containing the incubated mixture of magnetic beads and target substance on the magnetic rack.
2. Wait 1 minute until the beads are attracted to the bottle wall.
3. Carefully pour off the liquid, or aspirate it with a pipette.
4. Remove the reagent bottle from the rack and place it back on the bench, completing the magnetic separation.
Application Features:
1. A dedicated magnetic separation tool designed for biological experiments; suitable for sequencing, antibody purification, immunoprecipitation, co-immunoprecipitation, cell sorting, nucleic acid separation and other applications.
2. Well-designed and easy to operate. High magnetic field strength and rapid separation. Average magnetic separation time is 1 minute - fast and efficient.
3. Compact, lightweight and durable. The unique material makes the rack light yet long-lasting.
Application Images:

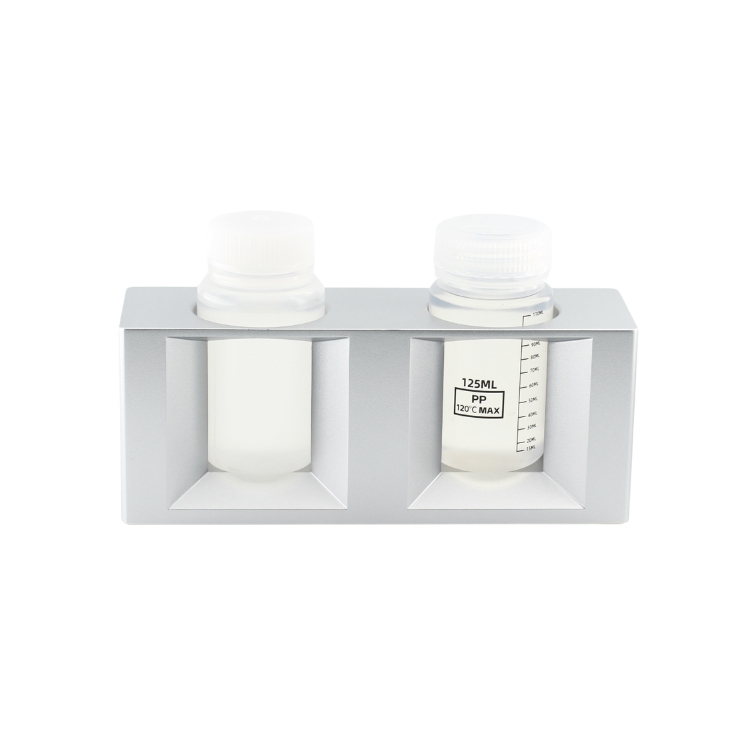

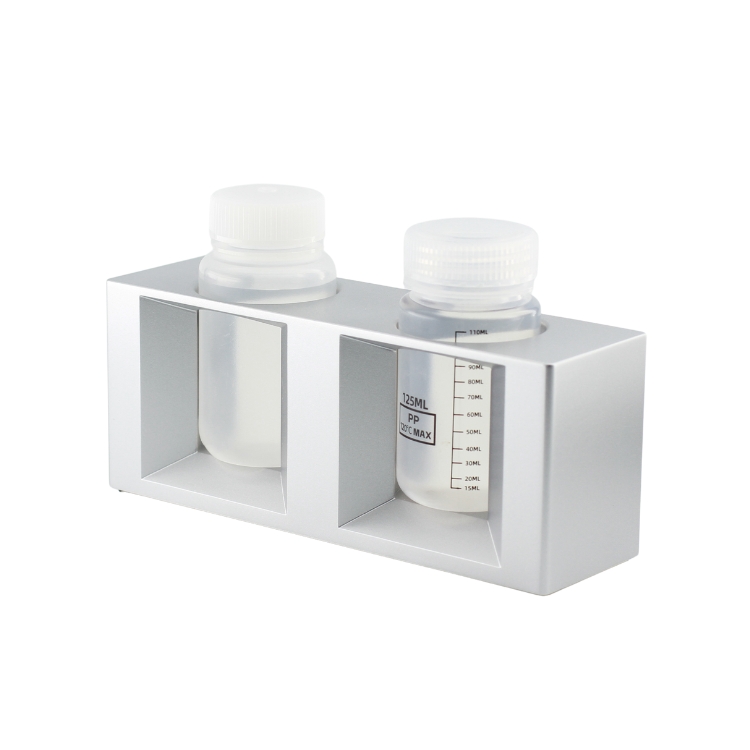

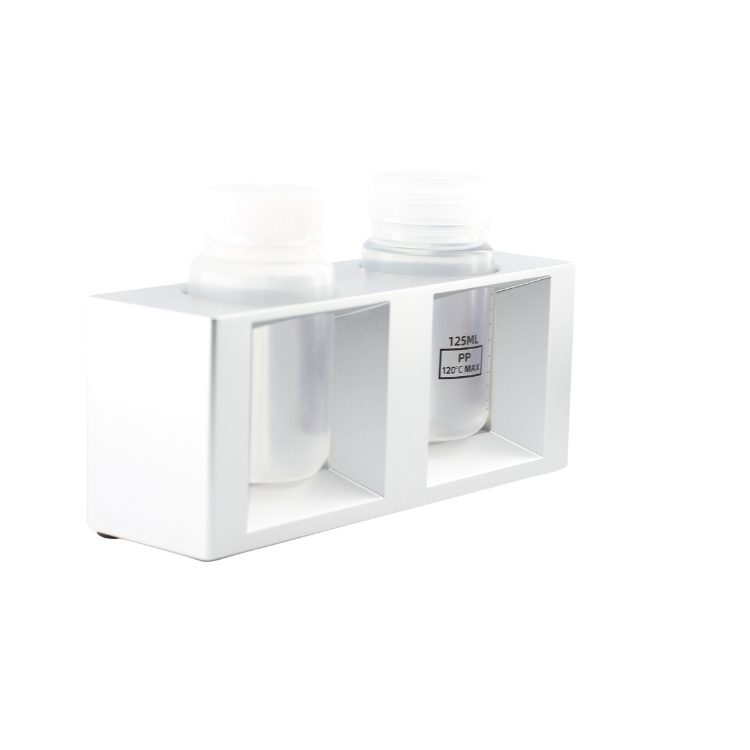

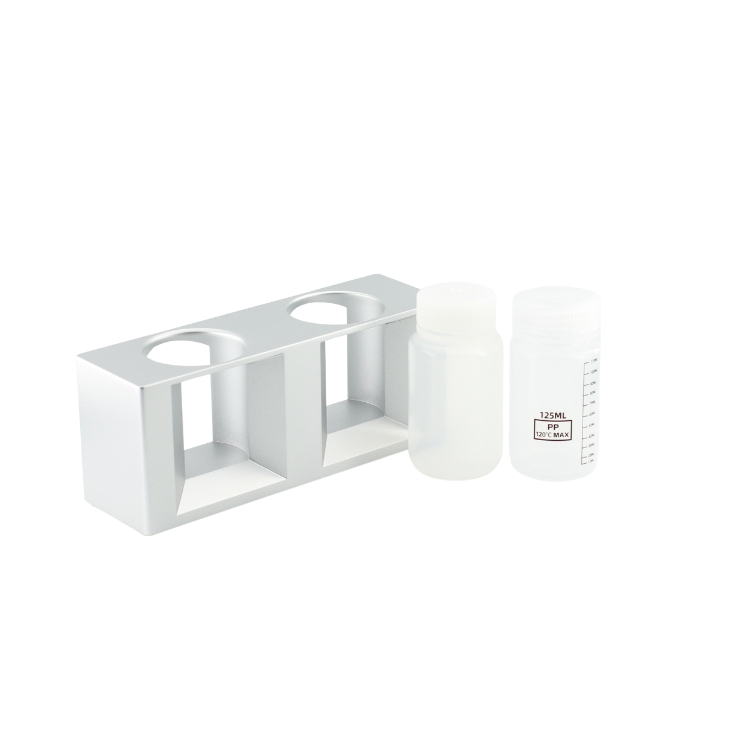

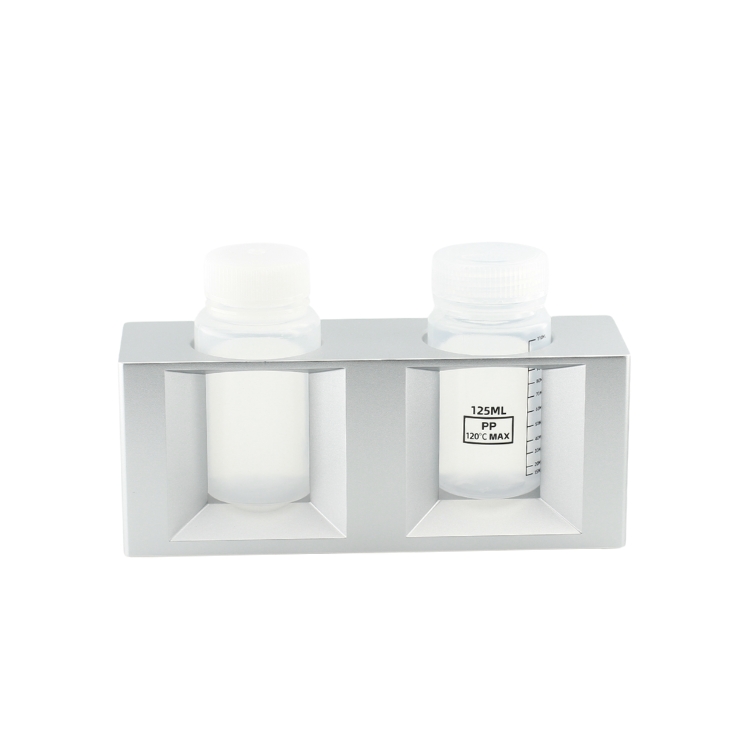

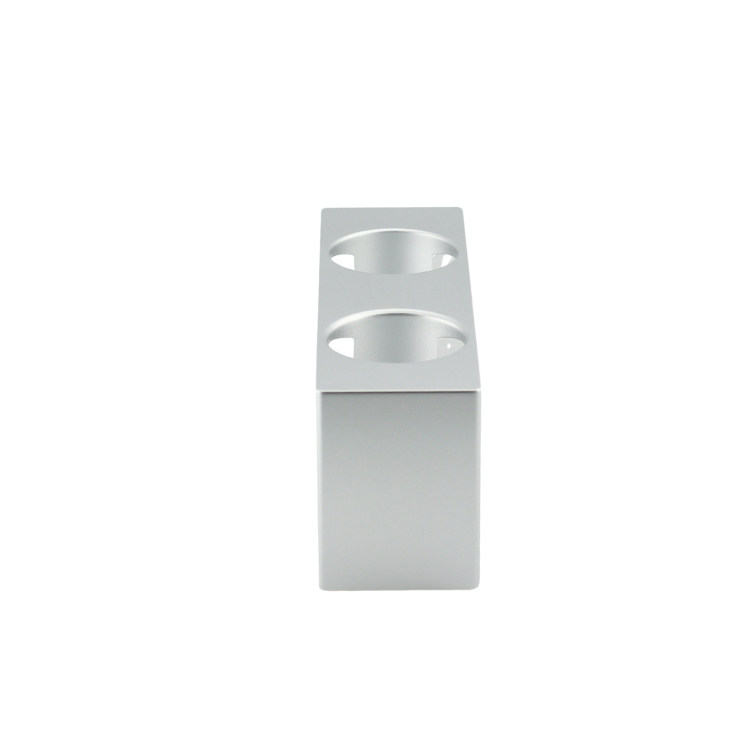

1. For 125ml PE reagent bottles
2. Magnetic bead attraction:

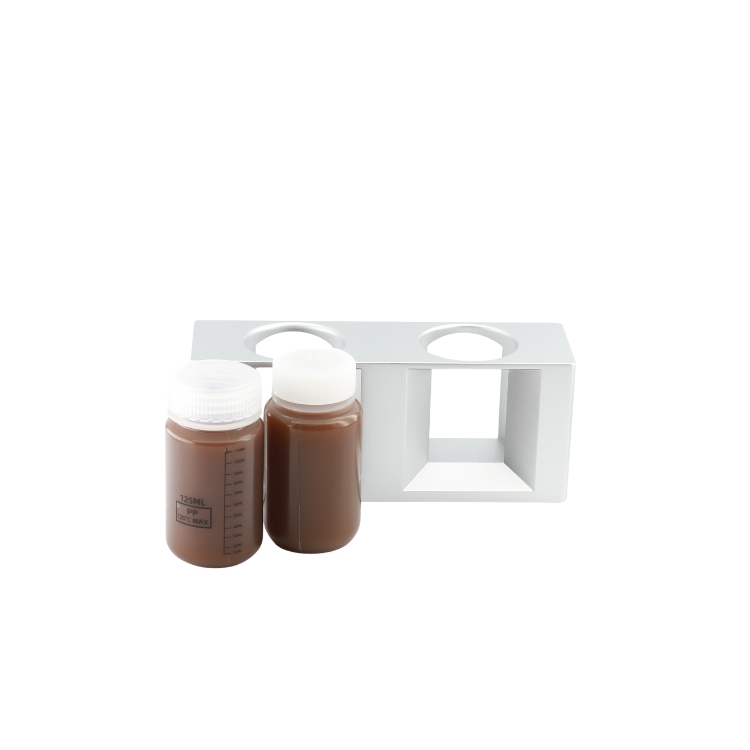

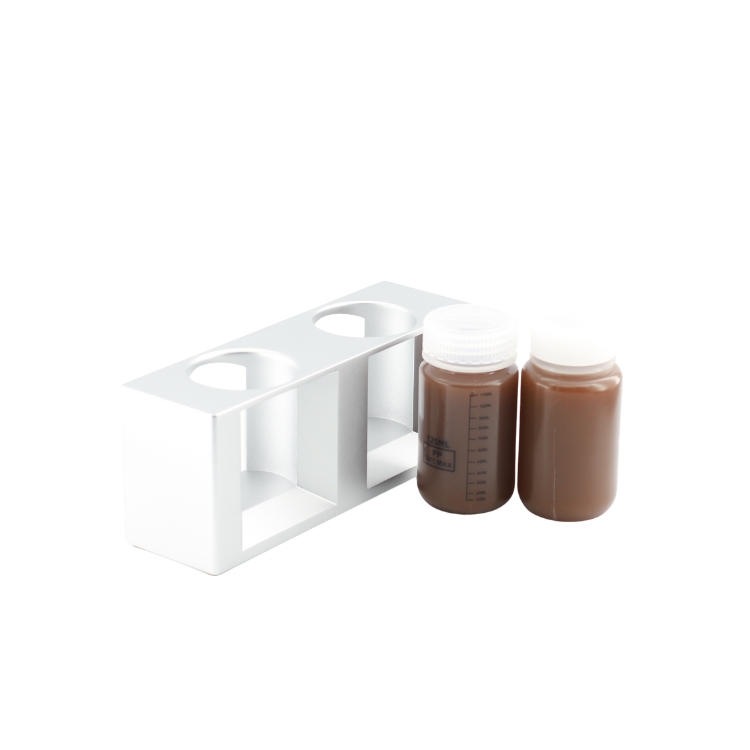

Before attraction -
After attraction -
