High Magnetic Field Separators
Location： Home > PRODUCT > High Magnetic Field Separators
Models：MAG-4-5
Time：2024-12-11
Applicable Consumables：100ml centrifuge tube
Visits：
Service hotline
+86 18938927592
Product Introduction:
Shenzhen BORHEE Technology Development Co., Ltd. has launched a 4-hole magnetic separation rack, which can efficiently separate various types of magnetic beads. A 100 ml centrifuge tube is placed on the magnetic separation rack, and the magnetic separation process can be completed in an average of 30 seconds. The magnetic force is strengthened and suitable for rapid adsorption of magnetic beads, thereby achieving the goal of rapid separation and purification of substances such as cells, proteins, or nucleic acids. The centrifuge tube of the 4-hole magnetic frame can tightly adhere to the magnetic frame, making your separation process intuitive and convenient.
Parameters:
Specification (mm): 130 × 110 × 92
Aperture: 38.5 mm, suitable for 100 ml centrifuge tube
Working volume: 2-100 ml
Recommended centrifuge tubes: Most 100 ml centrifuge tubes on the market
Operation:
1. Place the centrifuge tube containing the mixture of magnetic beads to be separated and the target substance on the magnetic rack.
2. Keep still for 30 seconds until all the magnetic beads are drawn to the centrifuge tube wall.
3. Carefully pour out the liquid or use a pipette to aspirate the liquid.
4. Remove the centrifuge tube from the magnetic rack and place it back on the regular centrifuge tube rack to complete the magnetic separation operation.
Application features:
1. A small-scale specialized magnetic separation tool designed for biological experiments, suitable for sequencing, antibody purification, immunoprecipitation, co-immunoprecipitation, cell sorting, nucleic acid separation and other operations.
2. Reasonable design and convenient operation. High magnetic field strength, fast separation. The average magnetic separation time is 30 seconds, and the separation process is fast and efficient.
3. Compact, lightweight, and durable. The unique material makes the magnetic frame lightweight yet durable.
Application image:

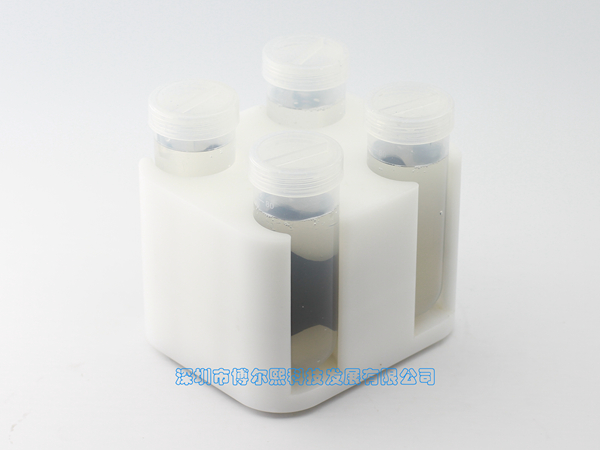

1. Can be used for 100 ml centrifuge tubes or upright centrifuge tubes
2. Can hold 4 100 ml centrifuge tubes at once or can stand centrifuge tubes
3. Magnetic bead adsorption status
Before adsorption-
After adsorption-
