Product Introduction:

Shenzhen BORHEE Technology Development Co., Ltd. has launched an automated nucleic acid purification equipment specialized 96 deep well plate hole magnetic rack/magnetic rack/magnetic separation rack (Magnetic Separation Rack), which can efficiently separate various types of magnetic beads. By placing the 96 deep well plate on the magnetic rack, the magnetic separation process can be completed in an average of 1 minute, thereby achieving the goal of rapid separation and purification of substances such as cells, proteins, or nucleic acids. The 96 hole magnetic rack can tightly adhere to the 96 hole plate, making your separation process more efficient. At the same time, this magnetic rack can be used for sample preservation of 96 well deep well plates extracted by semi-automatic nucleic acid purification equipment.

Technical parameters:

Suitable for 96 hole deep hole plates, with a brand new aluminum alloy structural design;

The relative position between the deep hole plate and the magnet can be adjusted using a height increasing bracket to change the position of the magnet adsorbing the magnetic beads;

This product consists of 111 imported high-strength magnetic special magnets with a square side length of 2.7mm, and the magnets protrude 15mm from the upper surface;

Optimal working volume: 1-2000ul;

Magnetic beads are adsorbed on one side of the bottom of the 96 deep hole plate, and the adsorption position of the magnetic beads can be changed by adjusting the height;

Recommended 96 hole plate: This magnetic bracket is suitable for NUNC 96 hole U-shaped deep hole plates and is also suitable for most various brands of deep hole plates.

Usage method:

1. Place the centrifuge tube containing the mixture of magnetic beads to be separated and the target substance on the magnetic rack.

2. Keep still for 1 minute until all magnetic beads are drawn to the bottom side of the 96 well plate.

3. Automated mechanical pipetting equipment absorbs and discards liquids.

4. The robotic arm removes the 96 hole plate from the magnetic frame and places it back into the regular 96 hole plate frame, completing the magnetic separation operation.

Application features:

1. A small-scale specialized magnetic separation tool designed for biological experiments, suitable for sequencing, antibody purification, immunoprecipitation, immunoprecipitation, cell sorting, nucleic acid separation and other operations.

2. Reasonable design and convenient operation. High magnetic field strength, fast separation. The average magnetic separation time is 30 seconds, and the separation process is fast and efficient.

3. Compact, lightweight, and durable. The unique material makes the magnetic frame lightweight yet durable.

Application image:

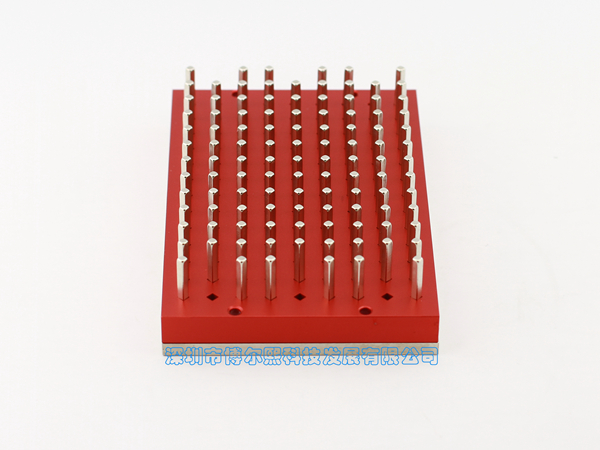

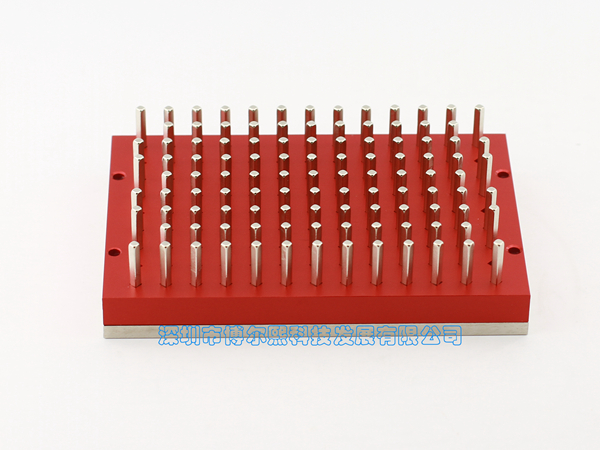

1. This magnetic frame has good maneuverability and appearance, and the new structure uses aluminum alloy, which improves the overall appearance and performance.

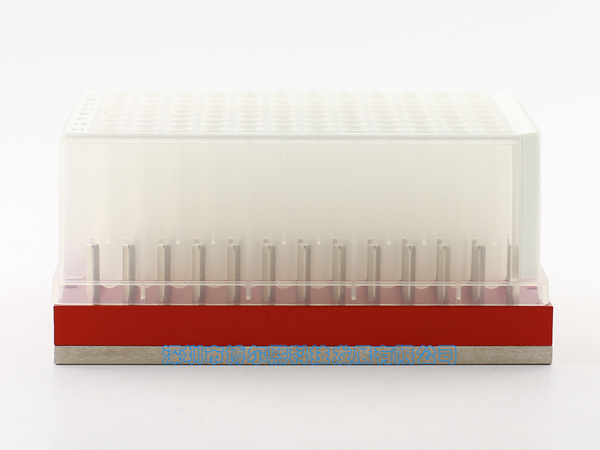

2. This magnetic bracket is suitable for NUNC's 96U type bottom deep hole plate, and the magnetic beads are attracted to the middle side of the 96 hole plate

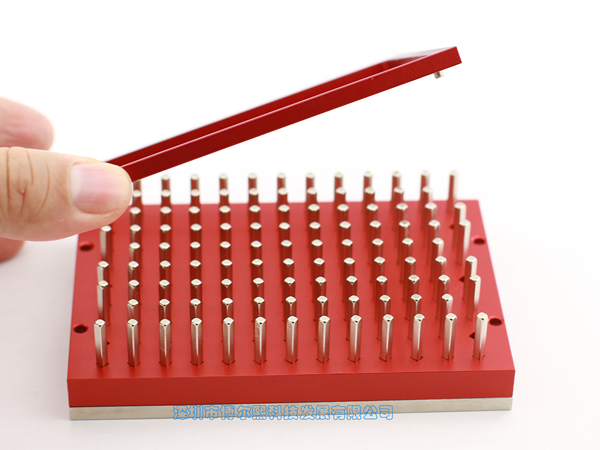

3. This magnetic frame can change the position of the magnetic beads by stacking a layer frame. The additional layer frame is not included in the standard delivered magnetic frame and needs to be purchased separately. The item number is: AUTO-96-7-K

4. After magnetic bead adsorption

-Before adsorption：

-After adsorption:
