Product Introduction:

Shenzhen BORHEE Technology Development Co., Ltd. has launched a specialized 96 universal plate magnetic rack/magnetic rack/magnetic separation rack for automated nucleic acid purification equipment. It can efficiently separate various types of magnetic beads. By placing a 96 well plate on the magnetic rack, the magnetic separation process can be completed in an average of 1 minute, achieving the goal of rapid separation and purification of substances such as cells, proteins, or nucleic acids. The 96 hole magnetic bracket can tightly adhere to the 96 hole plate, making your separation process more efficient. This magnetic bracket has been widely used in nucleic acid purification instruments such as Tecan, Hamilton, and even domestically produced automated nucleic acid purification instruments.

Technical parameters:

Suitable for most 96 well PCR plates on the market;

Full body aluminum alloy material, upgraded version, more sturdy and durable;

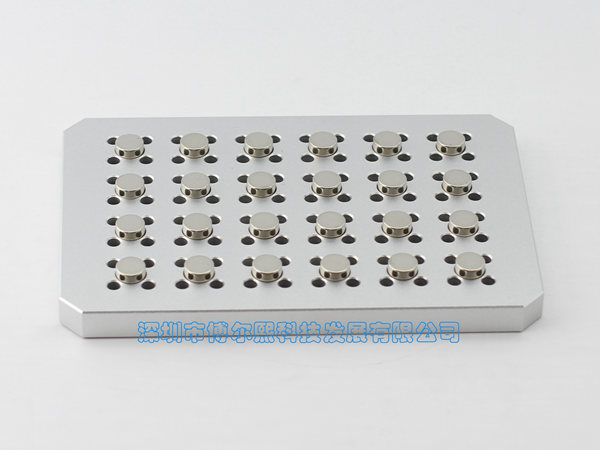

This product consists of 24 specially designed circular magnets, with a protrusion height of 3mm;

Optimal working volume: 1-2000ul;

Magnetic beads are adsorbed on the middle side of the 96PCR plate;

Recommended 96 well plate: This magnetic holder is suitable for most 96 well plates on the market, even 96 well PCR plates.

Usage method:

1. Place the centrifuge tube containing the mixture of magnetic beads to be separated and the target substance on the magnetic rack.

2. Keep still for 1 minute until all the magnetic beads are attracted to the upper side of the bottom of the 96 well plate.

3. Automated mechanical pipetting equipment absorbs and discards liquids.

4. The robotic arm removes the 96 hole plate from the magnetic frame and places it back into the regular 96 hole plate frame, completing the magnetic separation operation.

Application features:

1. A specialized magnetic separation tool for automated nucleic acid extraction equipment designed for biological experiments, suitable for sequencing, antibody purification, immunoprecipitation, immunoprecipitation, cell sorting, nucleic acid separation and other operations.

2. Reasonable design and convenient operation. High magnetic field strength, fast separation. The average magnetic separation time is 30 seconds, and the separation process is fast and efficient.

3. Compact, lightweight, and durable. The unique material makes the magnetic frame lightweight yet durable.

Application image:

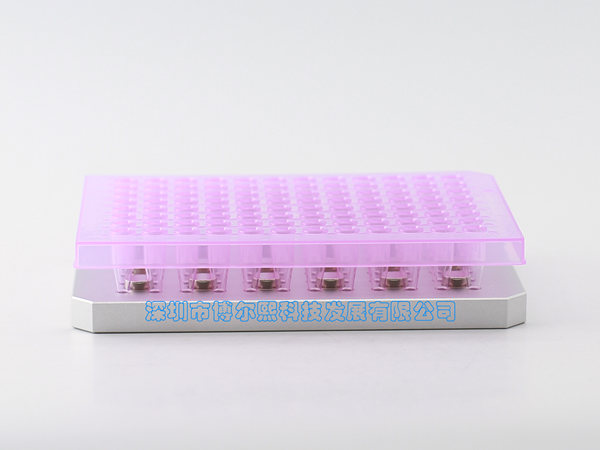

1. This magnetic frame has good maneuverability and appearance.
