Automatic Instrument
Location： Home > PRODUCT > Magnetic Seperator for Plate > Automatic Instrument
Models：AUTO-96-5-6
Time：2024-12-04
Applicable Consumables：96 well plate, 96 well PCR plate, 8-row tube
Visits：
Service hotline
+86 18938927592
NEWS
Product Introduction:
Shenzhen BORHEE Technology Development Co., Ltd. has launched a specialized 96 well plate magnetic rack/magnetic rack/magnetic separation rack for automated nucleic acid purification equipment. It can efficiently separate various types of magnetic beads. By placing the 96 well plate on the magnetic rack, the magnetic separation process can be completed in an average of 1 minute, achieving the goal of rapid separation and purification of substances such as cells, proteins, or nucleic acids. The 96 hole magnetic bracket can tightly adhere to the 96 hole plate, making your separation process more efficient. At the same time, the magnetic rack can be used for sample preservation of 96 well plates extracted by semi-automatic nucleic acid purification equipment.
Technical parameters:
Suitable for 96 well plates, 96 well PCR plates, or 8-row tubes;
The magnetic frame is 124mm long and 80mm wide;
This product consists of 96 imported high-strength magnetic special magnets;
Working volume: 1-2000ul;
Magnetic beads are adsorbed on the bottom of the 96 deep hole plate;
Recommended 96 hole plate: This magnetic bracket is suitable for most 96 hole plates on the market.
Usage method:
1. Place the centrifuge tube containing the mixture of magnetic beads to be separated and the target substance on the magnetic rack.
2. Keep still for 1 minute until all magnetic beads are drawn to the bottom side of the 96 well plate.
3. Automated mechanical pipetting equipment absorbs and discards liquids.
4. The robotic arm removes the 96 hole plate from the magnetic frame and places it back into the regular 96 hole plate frame, completing the magnetic separation operation.
Application features:
1. A small-scale specialized magnetic separation tool designed for biological experiments, suitable for sequencing, antibody purification, immunoprecipitation, immunoprecipitation, cell sorting, nucleic acid separation and other operations.
2. Reasonable design and convenient operation. High magnetic field strength, fast separation. The average magnetic separation time is 30 seconds, and the separation process is fast and efficient.
3. Compact, lightweight, and durable. The unique material makes the magnetic frame lightweight yet durable.

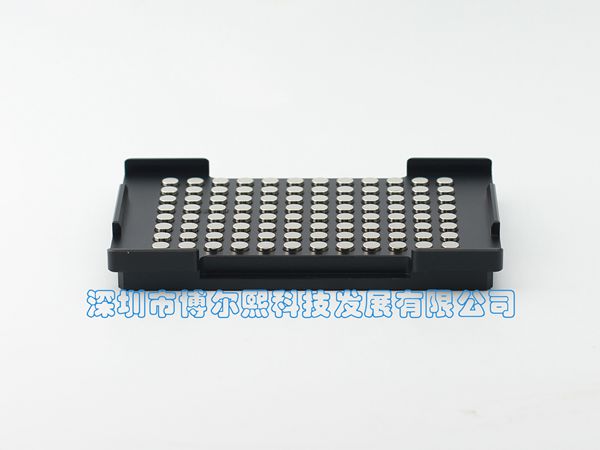

Application image:
1. This magnetic frame has good maneuverability and appearance.
2. This magnetic bracket is suitable for most 96 hole plates on the market
