Product Introduction:

Shenzhen BORHEE Technology Development Co., Ltd. has launched a specialized 96 universal plate magnetic rack/magnetic rack/magnetic separation rack for automated nucleic acid purification equipment. It can efficiently separate various types of magnetic beads. The 96 well U-shaped bottom plate is placed on the magnetic rack, and the magnetic separation process can be completed in an average of 1 minute, thus achieving the goal of rapid separation and purification of substances such as cells, proteins, or nucleic acids. The 96 hole magnetic bracket can tightly adhere to the 96 hole plate, making your separation process more efficient. This magnetic frame has been widely used in automated nucleic acid purification instruments such as Tecan and Hamilton.

Technical parameters:

Suitable for 96 hole U-shaped bottom plate;

This product consists of 7 specially designed elongated magnets with a protrusion height of 4mm;

Working volume: 1-2000ul;

Magnetic beads are adsorbed on the upper side of the bottom of the 96 deep hole plate;

Recommended 96 hole plate: This magnetic bracket is suitable for most 96U bottom hole plates on the market, and Corning's 96 hole plate is recommended.

Usage method:

1. Place the centrifuge tube containing the mixture of magnetic beads to be separated and the target substance on the magnetic rack.

2. Keep still for 1 minute until all the magnetic beads are attracted to the upper side of the bottom of the 96 well plate.

3. Automated mechanical pipetting equipment absorbs and discards liquids.

4. The robotic arm removes the 96 hole plate from the magnetic frame and places it back into the regular 96 hole plate frame, completing the magnetic separation operation.

Application features:

1. A specialized magnetic separation tool for automated nucleic acid extraction equipment designed for biological experiments, suitable for sequencing, antibody purification, immunoprecipitation, immunoprecipitation, cell sorting, nucleic acid separation and other operations.

2. Reasonable design and convenient operation. High magnetic field strength, fast separation. The average magnetic separation time is 30 seconds, and the separation process is fast and efficient.

3. Compact, lightweight, and durable. The unique material makes the magnetic frame lightweight yet durable.

Application image:

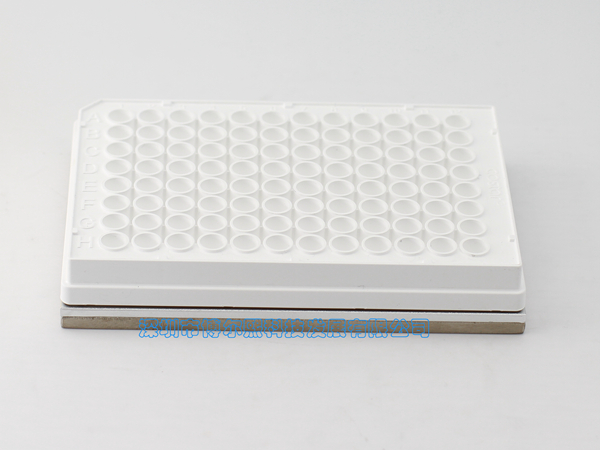

1. This magnetic frame has good maneuverability and appearance.

2. This magnetic bracket is suitable for various 96 hole U-shaped bottom plates, and the magnetic beads are attracted to the upper side of the bottom of the 96 hole plate
