Product Introduction:

Shenzhen BORHEE Technology Development Co., Ltd. has launched a 96 well magnetic separation rack, which can efficiently separate various types of magnetic beads. By placing eight rows of tubes or 96 PCR plates on the magnetic rack, the magnetic separation process can be completed in an average of 30 seconds, achieving the goal of rapid separation and purification of substances such as cells, proteins, or nucleic acids. The centrifugal tubes of the 96 hole magnetic frame (eight row tube magnetic frame) can be tightly attached to the magnetic frame, making your separation process intuitive and convenient. This magnetic frame is the preferred product for purifying and enriching PCR products in second-generation sequencing. Especially its high-performance magnets have better adsorption ability for Ampure XP magnetic beads. BGI and major sequencing companies in China are loyal fans of BORHEE.

Technical parameters:

Specification (mm): 130 × 90 × 20

Aperture: 6mm suitable for eight row tubes and 96 PCR plates

Optimal working volume: 1-200ul

Recommended centrifuge tubes: All brands of eight row tubes and 96 PCR plates on the market are compatible

At present, the newly upgraded magnetic frame has tubes that are more closely attached to the PCR tube wall, which is completely processed using the fitting tube wall processing technology, resulting in a tighter fit.

Operation:

1. Place the centrifuge tube containing the mixture of magnetic beads to be separated and the target substance on the magnetic rack.

2. Keep still for 30 seconds until all magnetic beads are drawn to the wall of the eight row tube or 96 PCR plate.

3. Carefully pour out the liquid or use a pipette to aspirate the liquid.

4. Remove the centrifuge tube from the magnetic rack and place it back on the regular centrifuge tube rack to complete the magnetic separation operation.

Application features:

1. A small-scale specialized magnetic separation tool designed for biological experiments, suitable for antibody purification, immunoprecipitation, immunoprecipitation, cell sorting, nucleic acid separation, and other operations.

2. Reasonable design and convenient operation. High magnetic field strength, fast separation. The average magnetic separation time is 30 seconds, and the separation process is fast and efficient.

3. Compact, lightweight, and durable. The unique material makes the magnetic frame lightweight yet durable.

4. Suitable for high-throughput and rapid purification of nucleic acids. The purified nucleic acid can be directly added to an eight row tube or a 96 PCR plate with PCR reaction solution for PCR reaction, which can quickly and easily perform PCR amplification operations.

Application image:

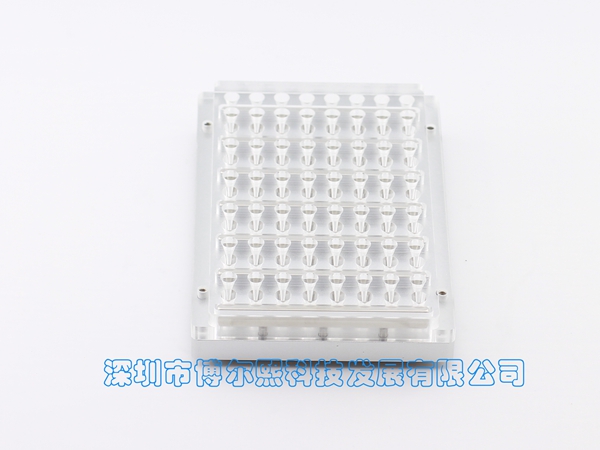

1. This magnetic frame has a 13 column 8-hole structure, and a 96 well PCR plate with 12 columns of holes and 8 rows of tubes can be used to clean magnetic beads by exchanging positions:

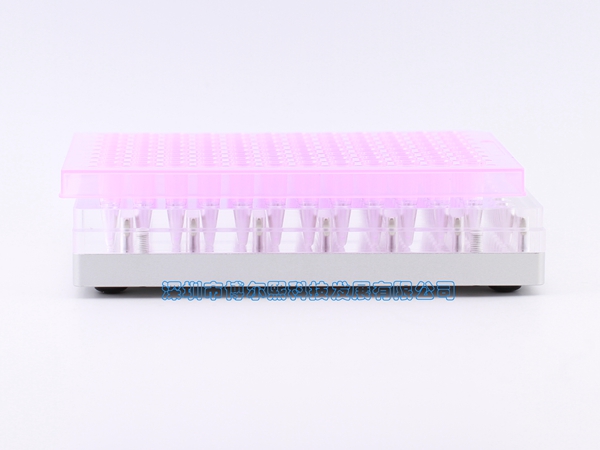

96 well PCR plate on the right side:

96 well PCR plate on the left side:

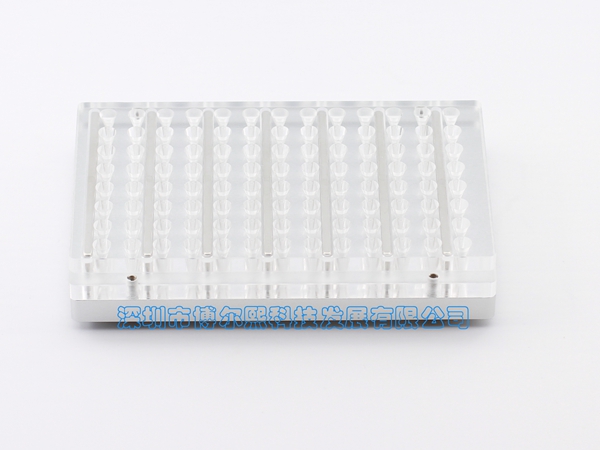

2. It has 7 high magnetic magnets that can efficiently adsorb Ampure XP Beams. This magnetic bracket can easily adjust the height of the magnets to fit different 96 well plates or eight row tubes

3. Magnetic bead adsorption situation

Before and after adsorption in a 0.2ml tube:

Before and after adsorption in a 0.1ml tube:

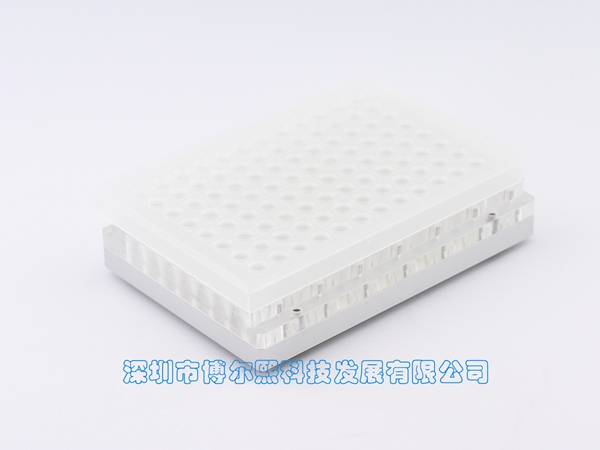

4. Suitable for eight row tubes and various 96 well PCR plates, the magnetic beads can be conveniently moved left and right inside the test tube by their placement
