Product Introduction:

Shenzhen BORHEE Technology Development Co., Ltd. has launched a 96 well magnetic separation rack, which can efficiently separate various types of magnetic beads. By placing the 96 well plate on the magnetic rack, the magnetic separation process can be completed in an average of 30 seconds, achieving the goal of rapid separation and purification of substances such as cells, proteins, or nucleic acids. The 96 hole magnetic bracket can tightly adhere to the 96 hole plate, making your separation process more efficient. This product can be used as a Luminex magnetic separation plate to easily complete the disposal and plate operation of 96 well plates, making it the best choice for Luminex magnetic bead experimental tools.

Technical parameters:

Suitable for most 96 well plates, 96 well culture dishes, 96 well deep hole plates, etc. on the market;

This product consists of 96 6mm imported characteristic magnets;

Optimal working volume: 1-2000ul;

Magnetic beads are adsorbed on the bottom of a 96 well plate;

Recommended 96 hole plate: This magnetic bracket is suitable for most 96 hole plates on the market and can be snapped according to different heights of 96 hole plates.

Operation method:

1. Place the combined centrifuge tube containing the mixture of magnetic beads to be separated and the target substance on the magnetic frame, and fix the 96 well plate with the fixing buckles at both ends of the magnetic frame. Can easily clamp the 96 hole plate.

2. Keep still for 30 seconds until all magnetic beads are drawn to the bottom of the 96 well plate.

3. Carefully pick up the 96 well plate magnetic holder, tap clean the waste liquid on the absorbent paper, or use a pipette to aspirate the liquid.

4. Remove the 96 hole plate from the magnetic bracket and place it back on the regular 96 hole plate bracket to complete the magnetic separation operation.

Application features:

1. A small-scale specialized magnetic separation tool designed for biological experiments, suitable for antibody purification, immunoprecipitation, immunoprecipitation, cell sorting, nucleic acid separation, and other operations.

2. Reasonable design and convenient operation. High magnetic field strength, fast separation. The average magnetic separation time is 30 seconds, and the separation process is fast and efficient.

3. Compact, lightweight, and durable. The unique material makes the magnetic frame lightweight yet durable.

Application image:

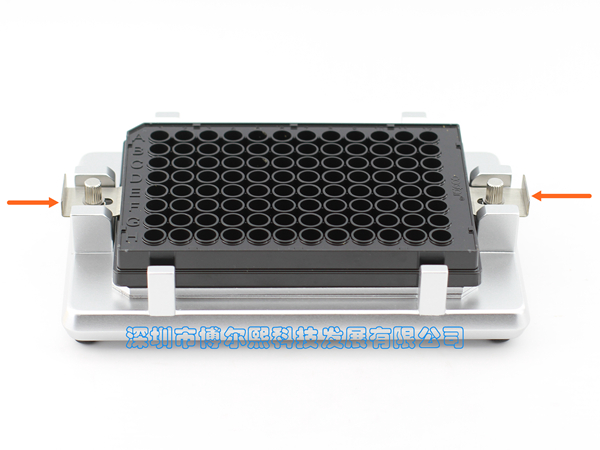

1. This magnetic bracket has good maneuverability and appearance, making it convenient for manual operation and fixing of 96 hole plates

2. This magnetic bracket is suitable for various 96 hole plates and can freely adjust the height of the fixed buckle

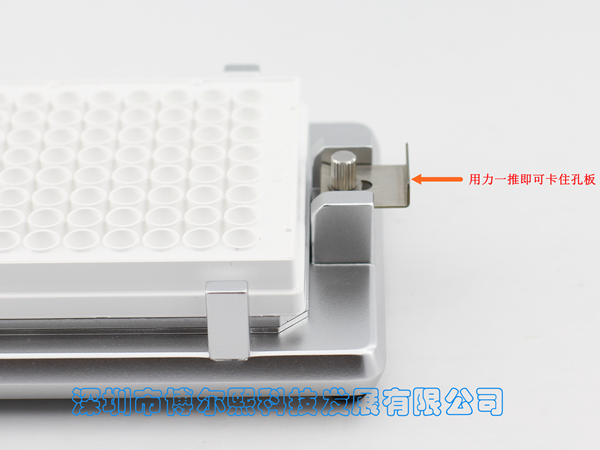

3. The fixed buckle of this magnetic bracket has a unique patent, with a simple design and easy operation

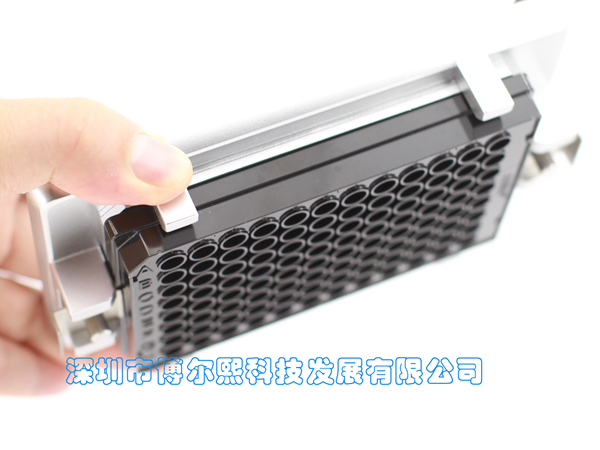

4. This magnetic frame is convenient for plate making operation, with stable magnetic force and close to the bottom of the 96 hole plate

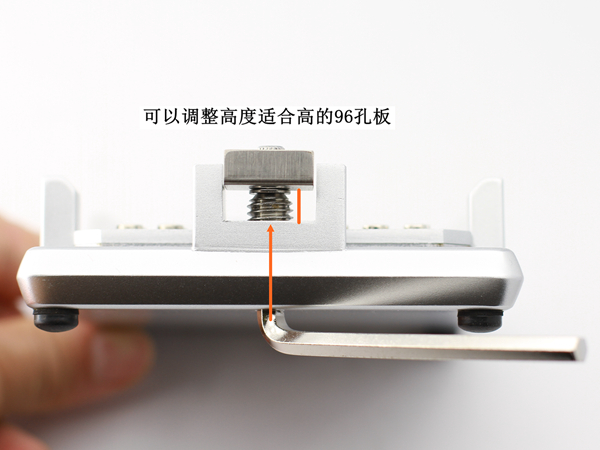

5. The buckle height can be adjusted to adapt to different high and low edge orifice plates

6. Before and after magnetic bead adsorption

Before adsorption:

After adsorption:

7. We have launched a magnetic bracket with a 2mm higher magnet, which is closer to the bottom of the 96 hole flat bottom plate. Product number: MAG-96-2-6
